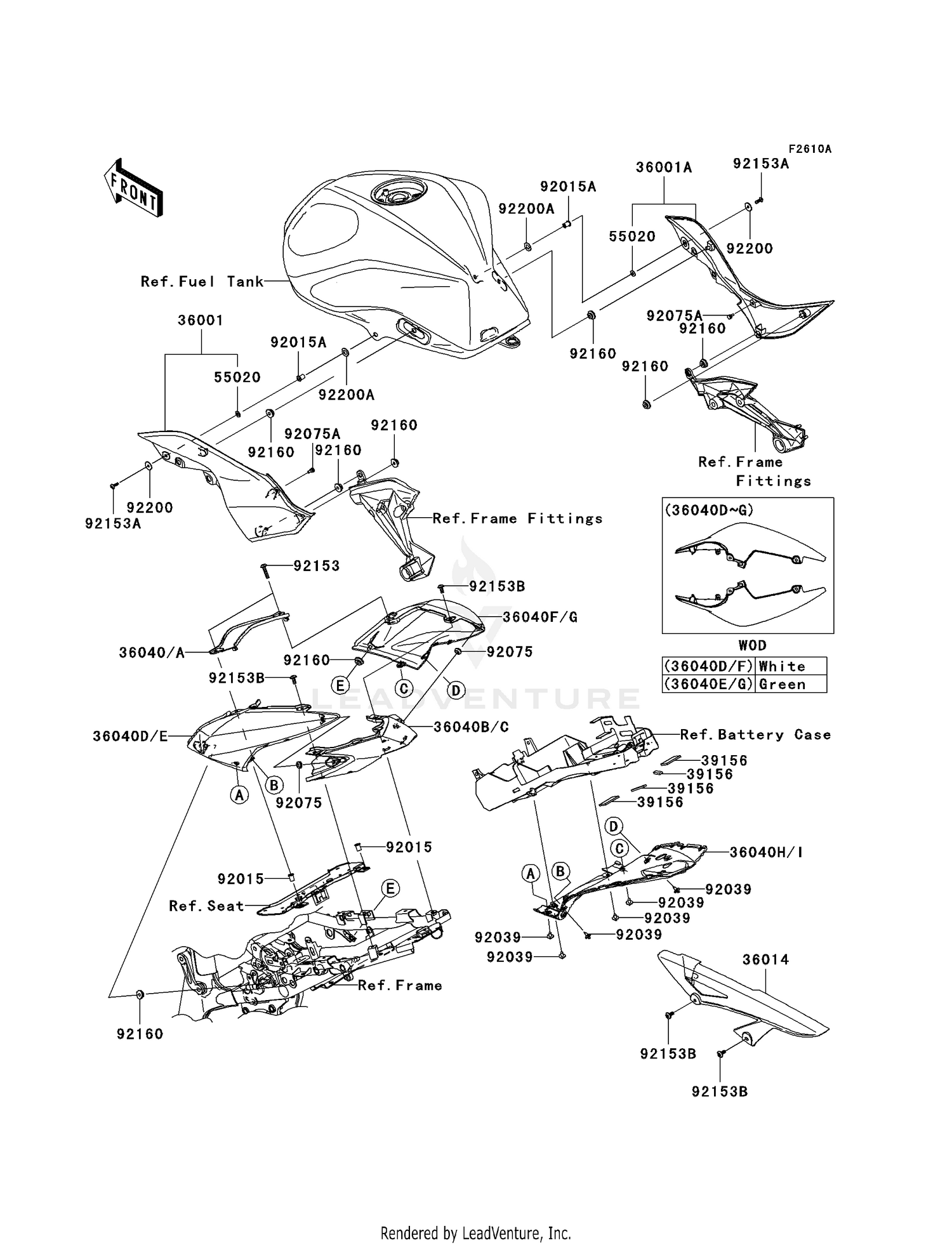

Side Covers/chain Cover (b8f) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#36001
COVER-SIDE,LH,F.BLACK
36001-0135-6Z
Superseded by 36001-0200-6Z
|
$114.94 | ||
|
Available to order. Add to View Price |
|||
|
#36001A
COVER-SIDE,RH,F.BLACK
36001-0136-6Z
Superseded by 36001-0201-6Z
|
$114.94 | ||
|
Available to order. Add to View Price |
|||
|
#36014
CASE-CHAIN
36014-0029
|
$36.07 | ||
|
Available to order. Add to View Price |
|||
|
#36040
COVER-TAIL,CNT,FR,P.C
36040-0043-667
|
$50.31 | ||
|
Available to order. Add to View Price |
|||
|
#36040A
COVER-TAIL,CNT,FR,L.G
36040-0043-777
|
$50.31 | ||
|
Available to order. Add to View Price |
|||
|
#36040B
COVER-TAIL,CNT,RR,P.C
36040-0044-667
|
$74.64 | ||
|
Available to order. Add to View Price |
|||
|
#36040C
COVER-TAIL,CNT,RR,L.G
36040-0044-777
|
$74.64 | ||
|
Available to order. Add to View Price |
|||
|
#36040D
COVER-TAIL,SIDE,LH,P.
36040-0071-667
|
$201.30 | ||
|
Available to order. Add to View Price |
|||
|
#36040E
COVER-TAIL,SIDE,LH,L.
36040-0071-777
|
$192.10 | ||
|
Available to order. Add to View Price |
|||
|
#36040F
COVER-TAIL,SIDE,RH,P.
36040-0072-667
|
$201.30 | ||
|
Available to order. Add to View Price |
|||
|
#36040G
COVER-TAIL,SIDE,RH,L.
36040-0072-777
|
$192.10 | ||
|
Available to order. Add to View Price |
|||
|
#36040H
COVER-TAIL,LWR,P.C.WH
36040-0077-667
|
$176.40 | ||
|
Available to order. Add to View Price |
|||
|
#36040I
COVER-TAIL,LWR,L.GREE
36040-0077-777
|
$176.40 | ||
|
Available to order. Add to View Price |
|||
|
#39156
PAD
39156-0286
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD
55020-0398
Superseded by 55020-0544
|
$2.86 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1700
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,WELL,5MM
92015-1757
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#92039
RIVET
92039-1256
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,6X16X7
92075-1011
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,6X10X15
92075-1808
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,6X18
92153-0816
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,SOCKET,5X16
92153-1244
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,SOCKET,6X14
92153-1612
Superseded by 92151-1654
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1613
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,5.5X20X1.2
92200-0284
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER,10.3X20X1
92200-0414
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
