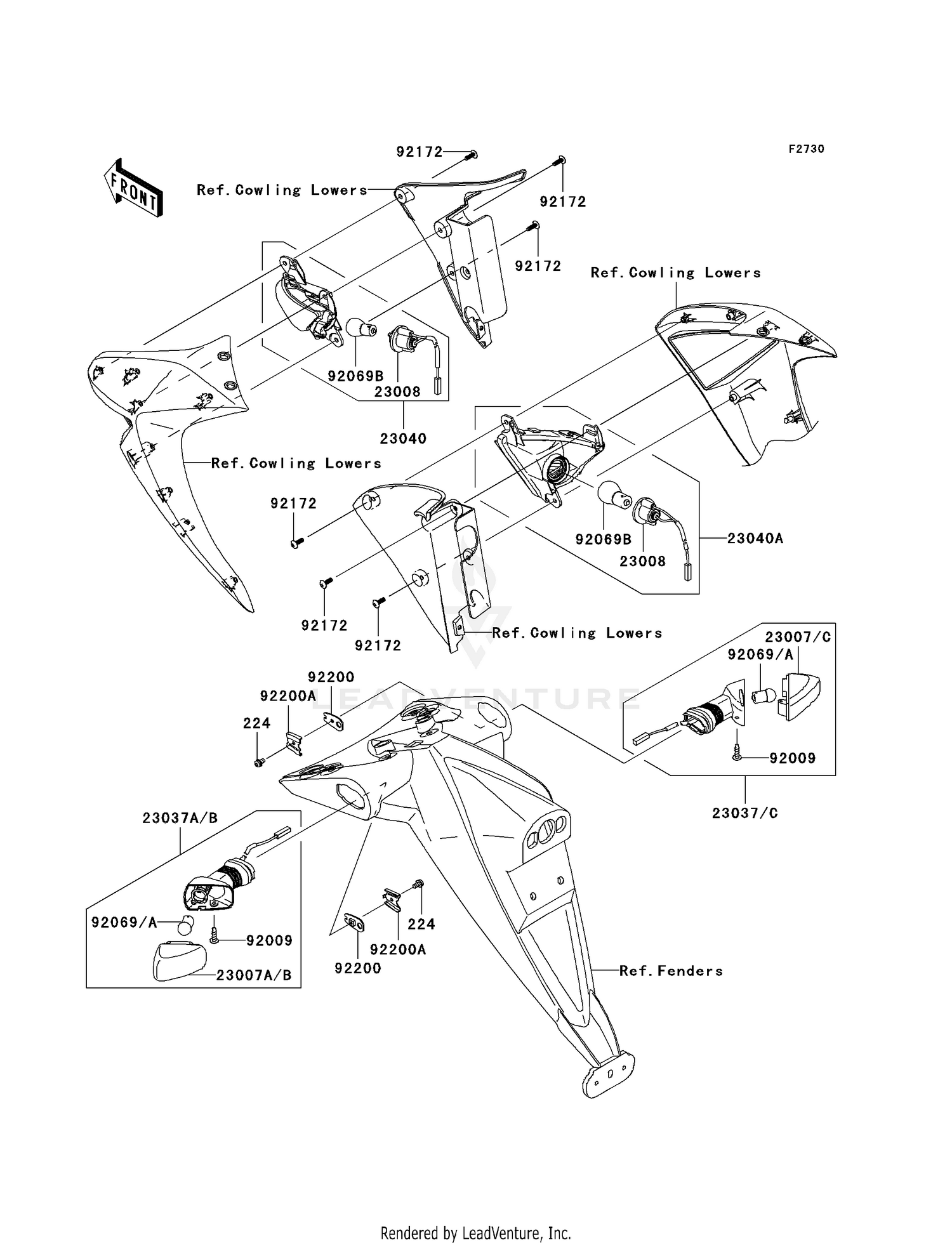

Turn Signals Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#224
SCREW-PAN-WP-CROS,4X8
224C0408
Superseded by 224AB0408
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#23007B
LENS-COMP,SIGNAL LAMP,LH
23007-0102
|
$18.43 | ||
|
Available to order. Add to View Price |
|||
|
#23007C
LENS-COMP,SIGNAL LAMP,RH
23007-0103
|
$18.43 | ||
|
Available to order. Add to View Price |
|||
|
#23008
SOCKET-ASSY,SIGNAL LAMP,FR
23008-0044
|
$21.04 | ||
|
Available to order. Add to View Price |
|||
|
#23037B
LAMP-ASSY-SIGNAL,RR,L
23037-0129
|
$71.83 | ||
|
Available to order. Add to View Price |
|||
|
#23037C
LAMP-ASSY-SIGNAL,RR,R
23037-0130
|
$71.83 | ||
|
Available to order. Add to View Price |
|||
|
#23040
LAMP-SIGNAL,FR,LH
23040-0057
|
$68.87 | ||
|
Available to order. Add to View Price |
|||
|
#23040A
LAMP-SIGNAL,FR,RH
23040-0058
|
$68.87 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,4X16,BLACK
92009-1158
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92069A
BULB,12V 10W
92069-0020
|
$13.96 | ||
|
Available to order. Add to View Price |
|||
|
#92069B
BULB,12V 21W
92069-1125
|
$8.22 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,TAPPING,5X16
92172-0175
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,SIGNAL LAMP
92200-0164
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER,SIGNAL LAMP
92200-0165
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
