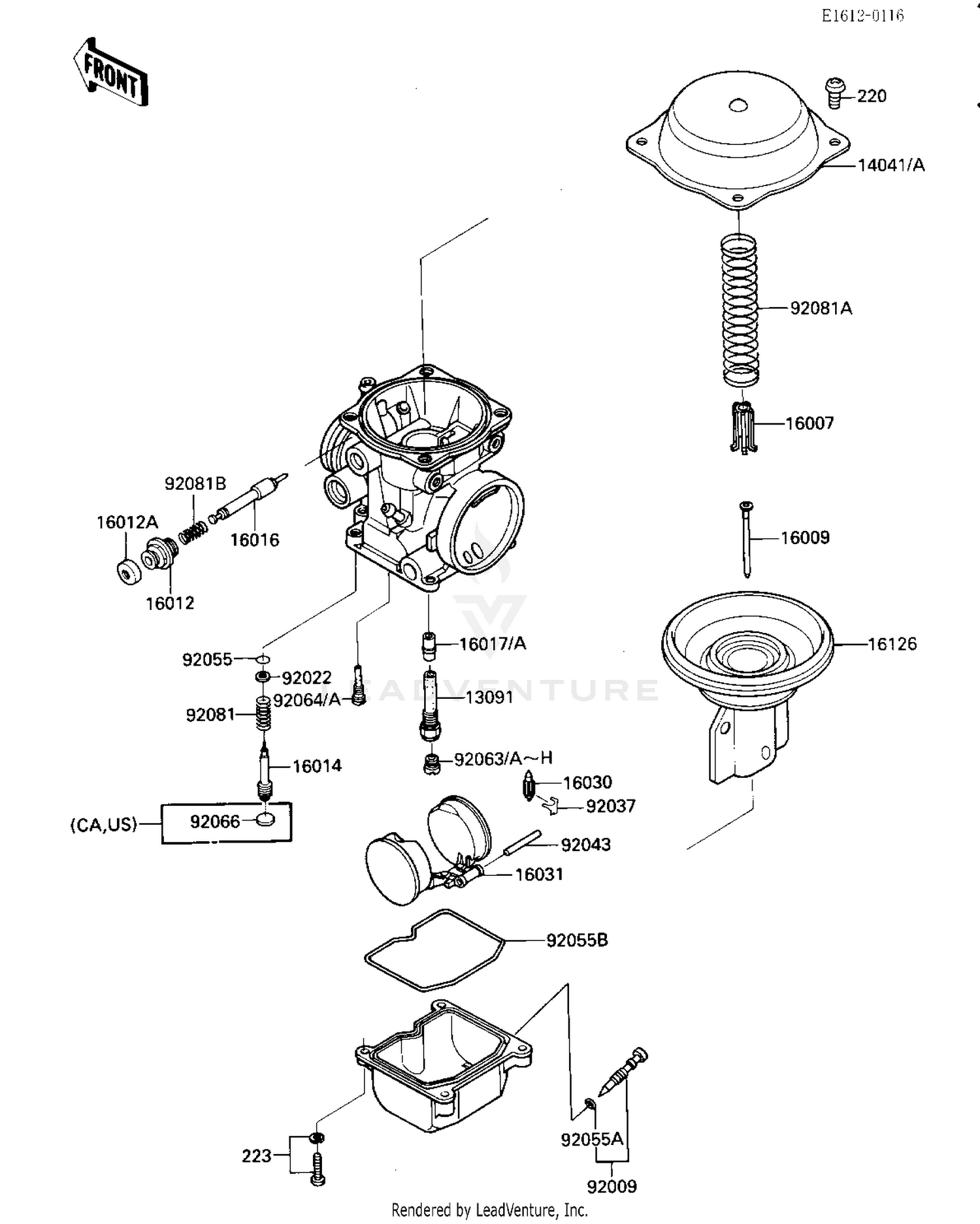

Carburetor Parts Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13091
HOLDER,NEEDLE JET
13091-1463
|
$31.24 | ||
|
Available to order. Add to View Price |
|||
|
#14041
TOP-CHAMBER,MIXING
14041-1061
Superseded by 16005-1065
|
$69.39 | ||
|
Available to order. Add to View Price |
|||
|
#14041A
COVER-COMP,MIXING,OUT
14041-1079
|
$74.15 | ||
|
Available to order. Add to View Price |
|||
|
#16007
SEAT-SPRING,VALVE
16007-1117
|
$24.14 | ||
|
Available to order. Add to View Price |
|||
|
#16009
NEEDLE-JET,N36M
16009-1332
|
$22.95 | ||
|
Available to order. Add to View Price |
|||
|
#16012
CAP-STARTER PLUNGER
16012-1051
|
$10.50 | ||
|
Available to order. Add to View Price |
|||
|
#16012A
CAP-STARTER PLUNGER
16012-1052
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW-PILOT AIR
16014-1054
|
$23.70 | ||
|
Available to order. Add to View Price |
|||
|
#16016
PLUNGER,STARTER
16016-1061
|
$41.74 | ||
|
Available to order. Add to View Price |
|||
|
#16017
JET-NEEDLE
16017-1326
|
$47.22 | ||
|
Available to order. Add to View Price |
|||
|
#16017A
JET-NEEDLE
16017-1327
|
$47.22 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT
16030-1007
|
$46.13 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-1056
|
$51.51 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE,VACUUM,60PS
16126-1173
|
$191.89 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,DRAIN,M6X1.0
92009-1095
Superseded by 92009-1434
|
$8.16 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,PLAIN
92022-1003
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,FLOAT VALVE
16044-007
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,FLOAT
92043-1148
Superseded by 92043-1207
|
$4.88 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,PILOT ADJUST
92055-1002
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O
92055-1053
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O,FLOAT CHAMBER
92055-1222
|
$16.82 | ||
|
Available to order. Add to View Price |
|||
|
#92063
JET-MAIN,#140
92063-1013
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
JET-MAIN,#135
92063-1014
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#92063B
JET-MAIN,#135
92063-1014
|
$13.60 | ||
|
Unavailable |
|||
|
#92063C
JET-MAIN,#138
92063-1015
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#92063D
JET-MAIN,2ND,#125
92063-1069
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063E
JET-MAIN,2ND,#128
92063-1074
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#92063F
JET-MAIN,#130
92063-1075
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#92063G
JET-MAIN,#130
92063-1075
|
$13.60 | ||
|
Unavailable |
|||
|
#92063H
JET-MAIN,#132
92063-1076
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#92064
JET-PILOT,#35
92064-1101
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#92064A
JET-PILOT,#32
92064-1117
|
$19.25 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,PILOT ADJUST SCREW
92081-1002
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,VACUUM VALVE
92081-1760
|
$18.89 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,STARTER PLUNGER
92081-1761
|
$9.03 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS
220E0408
|
$3.21 | ||
|
Available to order. Add to View Price |
|||
|
#223
SCREW-PAN-WS-CROS,4X16
223C0416
Superseded by 223AB0416
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
