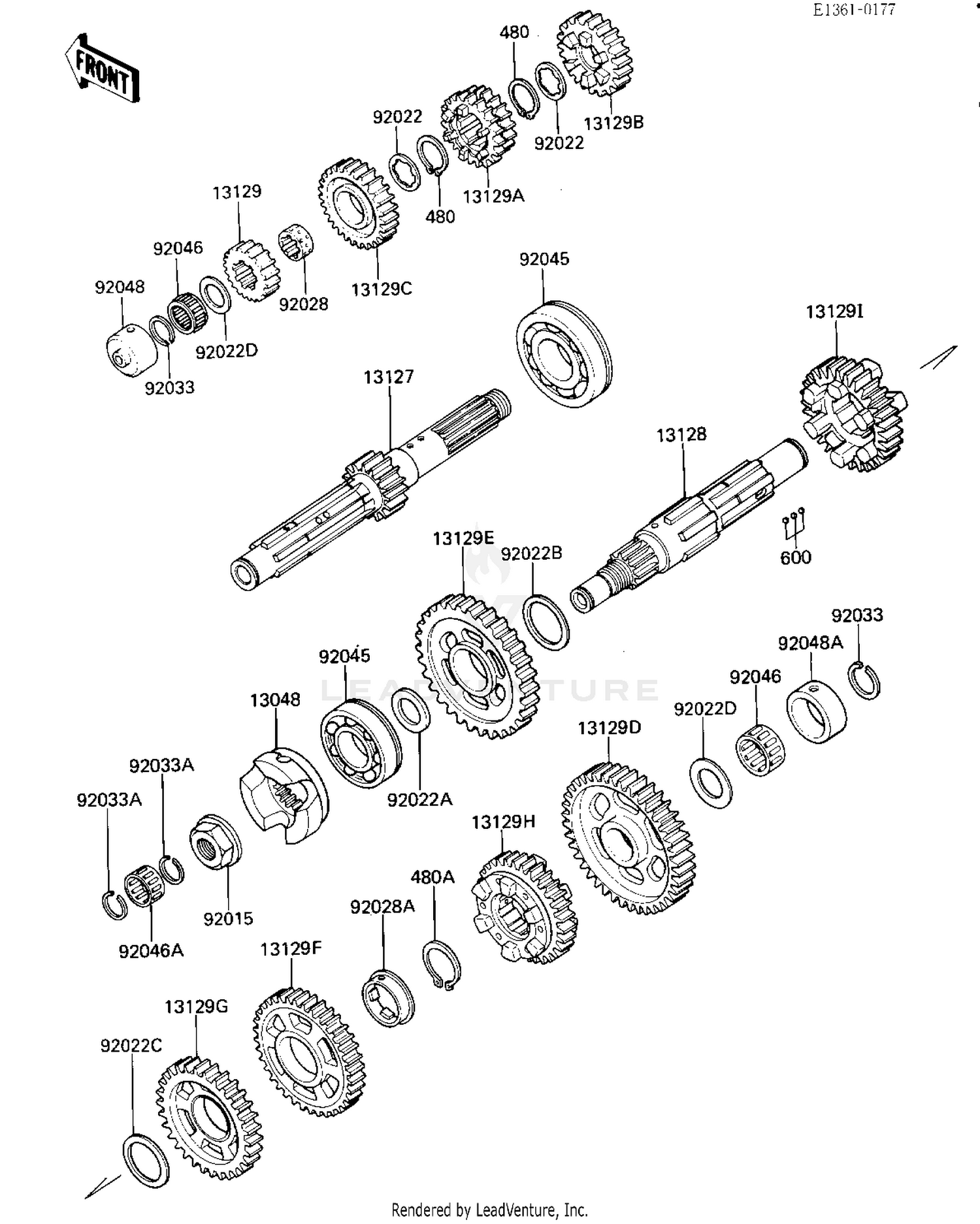

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13048
CAM-DAMPER
13048-1060
|
$96.74 | ||
|
Available to order. Add to View Price |
|||
|
#13127
SHAFT-TRANSMISSION IN
13127-1196
|
$214.63 | ||
|
Available to order. Add to View Price |
|||
|
#13128
SHAFT-TRANSMISSION OU
13128-1138
|
$315.24 | ||
|
Available to order. Add to View Price |
|||
|
#13129
GEAR,INPUT 2ND,19T
13129-1530
|
$116.82 | ||
|
Available to order. Add to View Price |
|||
|
#13129A
GEAR,INPUT 3RD&4TH,22
13129-1531
|
$169.18 | ||
|
Available to order. Add to View Price |
|||
|
#13129B
GEAR,INPUT 5TH,26T
13129-1532
|
$141.86 | ||
|
Available to order. Add to View Price |
|||
|
#13129C
GEAR,INPUT TOP,28T
13129-1533
Superseded by 13260-1925
|
$151.10 | ||
|
Available to order. Add to View Price |
|||
|
#13129D
GEAR,OUTPUT LOW,42T
13129-1534
|
$217.67 | ||
|
Available to order. Add to View Price |
|||
|
#13129E
GEAR,OUTPUT 2ND,38T
13129-1700
|
$155.78 | ||
|
Available to order. Add to View Price |
|||
|
#13129F
GEAR,OUTPUT 3RD,35T
13129-1701
Superseded by 13129-1775
|
$173.16 | ||
|
Available to order. Add to View Price |
|||
|
#13129G
GEAR,OUTPUT 4TH,32T
13129-1702
Superseded by 13129-1776
|
$173.16 | ||
|
Available to order. Add to View Price |
|||
|
#13129H
GEAR,OUTPUT 5TH,30T
13129-1703
|
$188.50 | ||
|
Available to order. Add to View Price |
|||
|
#13129I
GEAR,OUTPUT TOP,29T
13129-1704
|
$118.62 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,20MM
92015-1610
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,THRUST,26MM
92022-1077
Superseded by 92024-042
|
$10.68 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,28.3X42X2.9
92022-1219
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER,32X40X1.6
92022-1693
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#92022C
WASHER,30X38X2.0
92022-1694
|
$6.48 | ||
|
Available to order. Add to View Price |
|||
|
#92022D
WASHER,22.3X35X1.6
92022-212
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING,TOP GEAR
92028-1124
|
$43.72 | ||
|
Available to order. Add to View Price |
|||
|
#92028A
BUSHING,OUTPUT 3RD GE
92028-1374
|
$55.11 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,20X25.5X1.2
92033-025
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP
92033-028
|
$8.48 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL
92045-1186
Superseded by 92045-1413
|
$62.42 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,FWF-223014
92046-031
|
$19.01 | ||
|
Available to order. Add to View Price |
|||
|
#92046A
BEARING-NEEDLE,K17X23
92046-1145
|
$21.30 | ||
|
Available to order. Add to View Price |
|||
|
#92048
RACE,INPUT SHAFT
92048-1052
|
$53.66 | ||
|
Available to order. Add to View Price |
|||
|
#92048A
RACE,30X38X15
92048-1053
|
$27.60 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,28MM
480J2800
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#480A
CIRCLIP
480J2900
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#600
BALL-STEEL,5/32
600A0500
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
