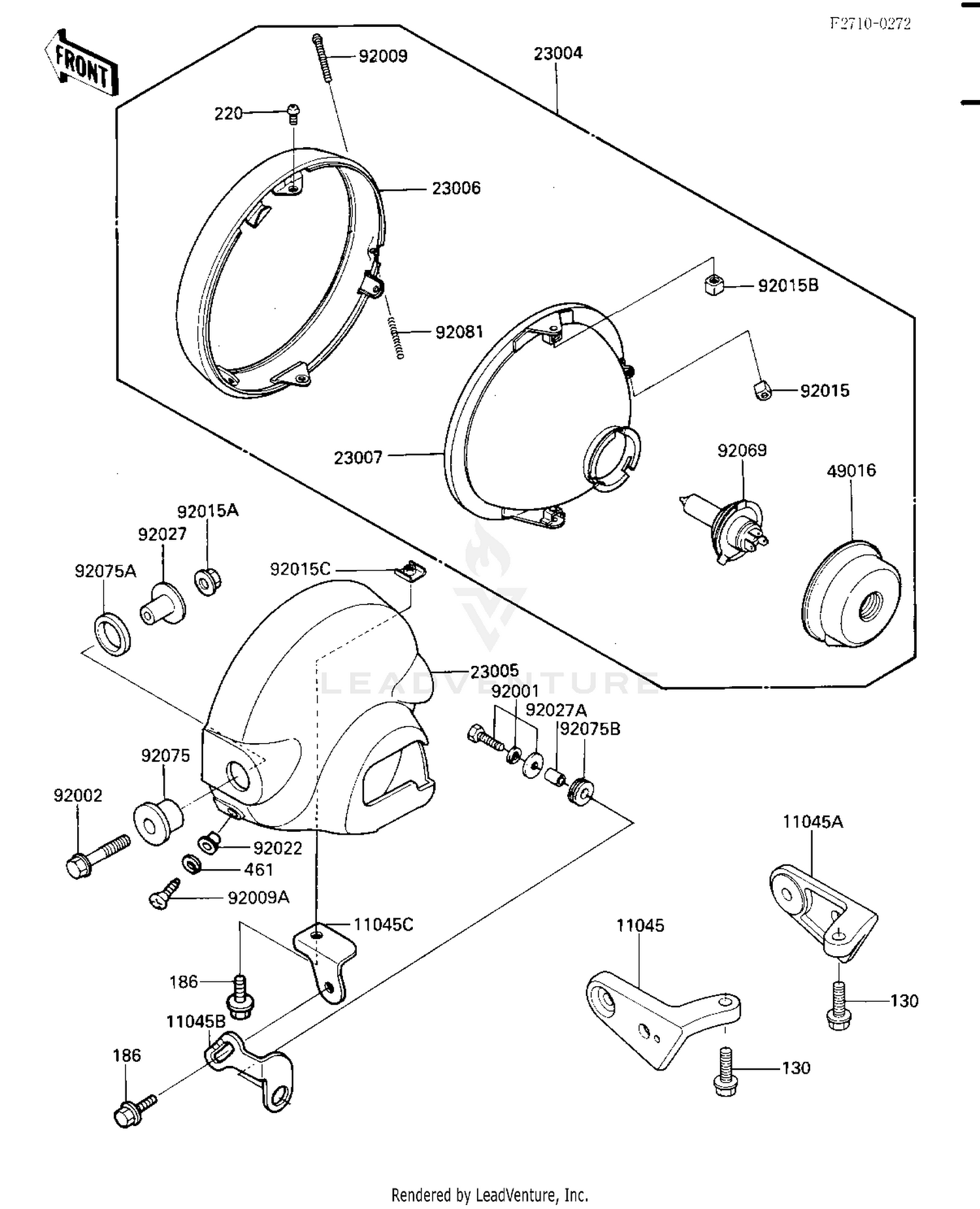

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11045
BRACKET,HEAD LAMP,LH
11045-1153
|
$83.49 | ||
|
Available to order. Add to View Price |
|||
|
#11045A
BRACKET,HEAD LAMP,RH
11045-1154
|
$83.49 | ||
|
Available to order. Add to View Price |
|||
|
#11045B
BRACKET,HEAD LAMP,LWR
11045-1155
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#11045C
BRACKET,HEAD LAMP BOD
11045-1328
|
$18.14 | ||
|
Available to order. Add to View Price |
|||
|
#23004
LAMP-HEAD
23004-1171
|
$397.29 | ||
|
Available to order. Add to View Price |
|||
|
#23005
BODY-COMP-HEAD LAMP,C
23005-1058
|
$122.18 | ||
|
Available to order. Add to View Price |
|||
|
#23006
RIM-LAMP
23006-1055
|
$85.22 | ||
|
Available to order. Add to View Price |
|||
|
#23007
LENS-COMP,HEAD LAMP
23007-1115
Superseded by 23007-1399
|
$147.31 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL,HEAD LAMP
49016-1046
|
$11.96 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,6X25
92001-1852
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT-FLANGED-SMALL
132E0840
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,FOCUS ADJU.4X52
92009-1033
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,5MM
92011-024
Superseded by 92009-1947
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,4MM,FOCUS ADJUST
23020-018
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,FLANGED,8MM
92015-1014
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,5MM
92015-1157
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#92015C
NUT-6MM,HEAD LAMP
92015-1231
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
23021-010
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=20
92027-1131
|
$8.63 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,6.8X10X12
92027-162
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 60/55W,H4
92069-1002
Superseded by 92069-0050
|
$17.64 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,HEAD LAMP FITTING
92075-1109
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,HEAD LAMP FITTING
92075-1110
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER
92075-209
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,FOCUS ADJUSTING
92081-1701
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED
130N0825
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#186
BOLT-UPSET-WP
186C0614
Superseded by 186AB0614
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,5X10
220B0510
Superseded by 220AA0510
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
