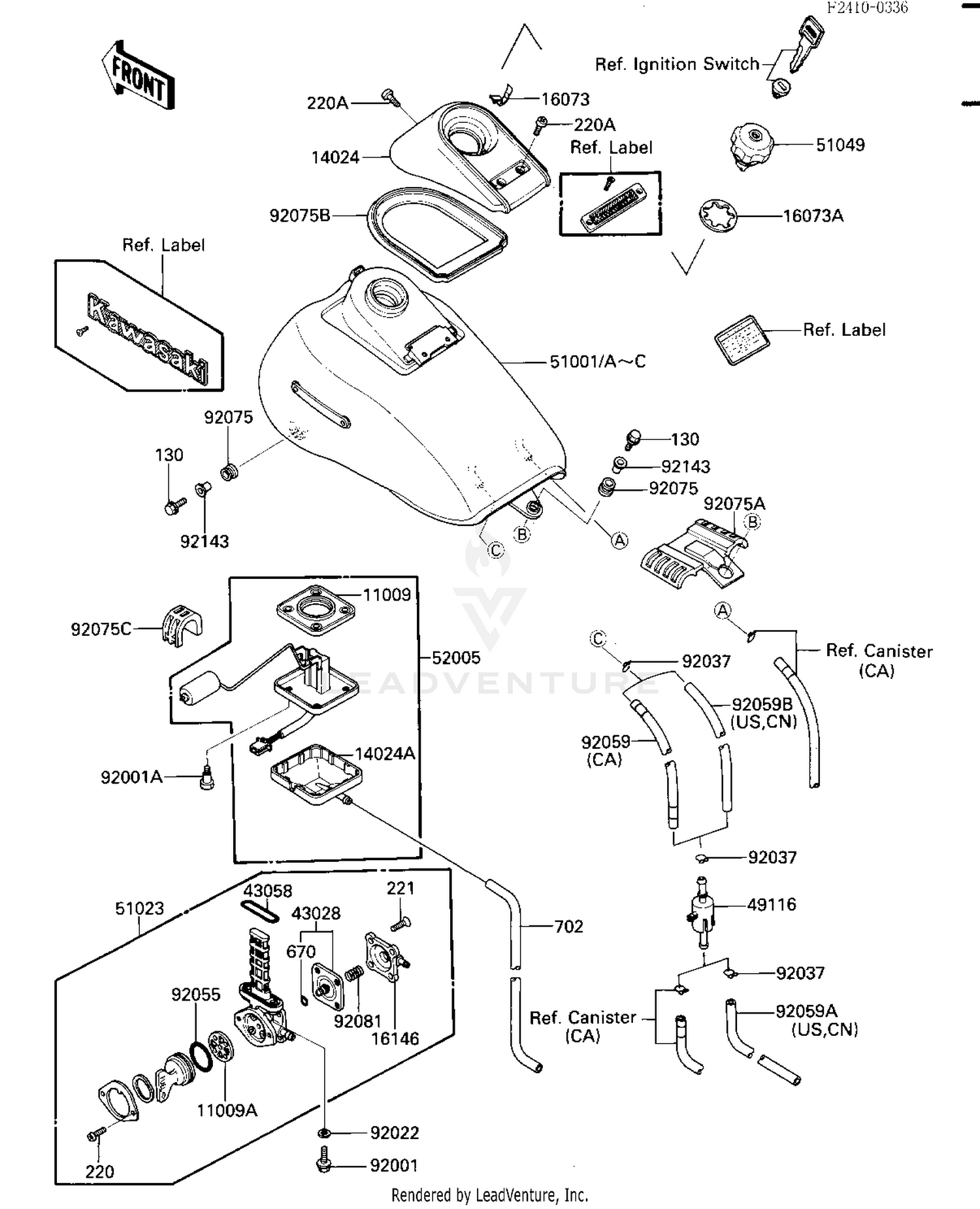

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FUEL GAUGE
11009-1656
|
$8.59 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,TAP VALVE
11009-1530
|
$9.17 | ||
|
Available to order. Add to View Price |
|||
|
#14024
COVER,FUEL TANK,EBONY
14024-1377-H8
|
$375.54 | ||
|
Available to order. Add to View Price |
|||
|
#14024A
COVER,FUEL GAUGE
14025-1536
Superseded by 14090-1624
|
$16.46 | ||
|
Available to order. Add to View Price |
|||
|
#16073
INSULATOR
16073-1061
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#16073A
INSULATOR
16073-1063
|
$10.25 | ||
|
Available to order. Add to View Price |
|||
|
#16146
COVER ASSY,TAP
16146-1005
|
$20.34 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM ASSY,TAP
43028-1015
|
$21.15 | ||
|
Available to order. Add to View Price |
|||
|
#43058
0 RING
51039-010
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#49116
VALVE-ASSY,BREATHER
49116-1063
|
$30.63 | ||
|
Unavailable |
|||
|
#51001
TANK-COMP-FUEL CW RED
51001-1247-H3
|
$784.27 | ||
|
Available to order. Add to View Price |
|||
|
#51001A
TANK-COMP-FUEL EBONY
51001-1247-H8
|
$788.23 | ||
|
Available to order. Add to View Price |
|||
|
#51001B
TANK-COMP-FUEL,C.W.RE
51001-1249-H3
|
$782.76 | ||
|
Available to order. Add to View Price |
|||
|
#51001C
TANK-COMP-FUEL,EBONY
51001-1249-H8
|
$1,325.78 | ||
|
Available to order. Add to View Price |
|||
|
#51023
TAP-ASSY,FUEL
51023-1119
Superseded by 51023-1387
|
$113.10 | ||
|
Available to order. Add to View Price |
|||
|
#51049
CAP-TANK,FUEL
51049-1074
Superseded by 51049-1087
|
$142.26 | ||
|
Available to order. Add to View Price |
|||
|
#52005
GAUGE,FUEL
52005-1077
|
$111.11 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,6X20
92001-1091
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,FUEL GAUGE
92001-1705
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.2X11X1.5
92022-183
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-010
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92055
0 RING,TAP LEVER
92055-1027
|
$5.06 | ||
|
Unavailable |
|||
|
#92059
TUBE,5X8X1100,BLUE
92059-1420
Superseded by 92059-1442
|
$28.49 | ||
|
Available to order. Add to View Price |
|||
|
#92059A
TUBE
92059-1625
|
$5.86 | ||
|
Available to order. Add to View Price |
|||
|
#92059B
TUBE,5X9X350
92059-1714
Superseded by 92059-1265
|
$10.15 | ||
|
Unavailable |
|||
|
#92075
DAMPER
92075-1057
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,FUEL TANK,RR
92075-1846
|
$49.13 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER,FUEL TANK COVE
92075-1847
Superseded by 92075-1893
|
$49.13 | ||
|
Available to order. Add to View Price |
|||
|
#92075C
DAMPER,FUEL TANK
92075-1862
Superseded by 92161-1686
|
$14.75 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,TAP
92081-1171
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,L=15.6
92143-1041
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X25
130J0625
Superseded by 130BB0625
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,3X8
220B0308
Superseded by 220AA0308
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,5X10
220C0510
Superseded by 220AB0510
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#221
SCREW-CSK-CROS,4X14
221B0414
Superseded by 221AA0414
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,4MM
670B1504
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#702
TUBE-RUBBER,7X10X800
702A07680
Superseded by 702A07800
|
$9.76 | ||
|
Available to order. Add to View Price |
|||
