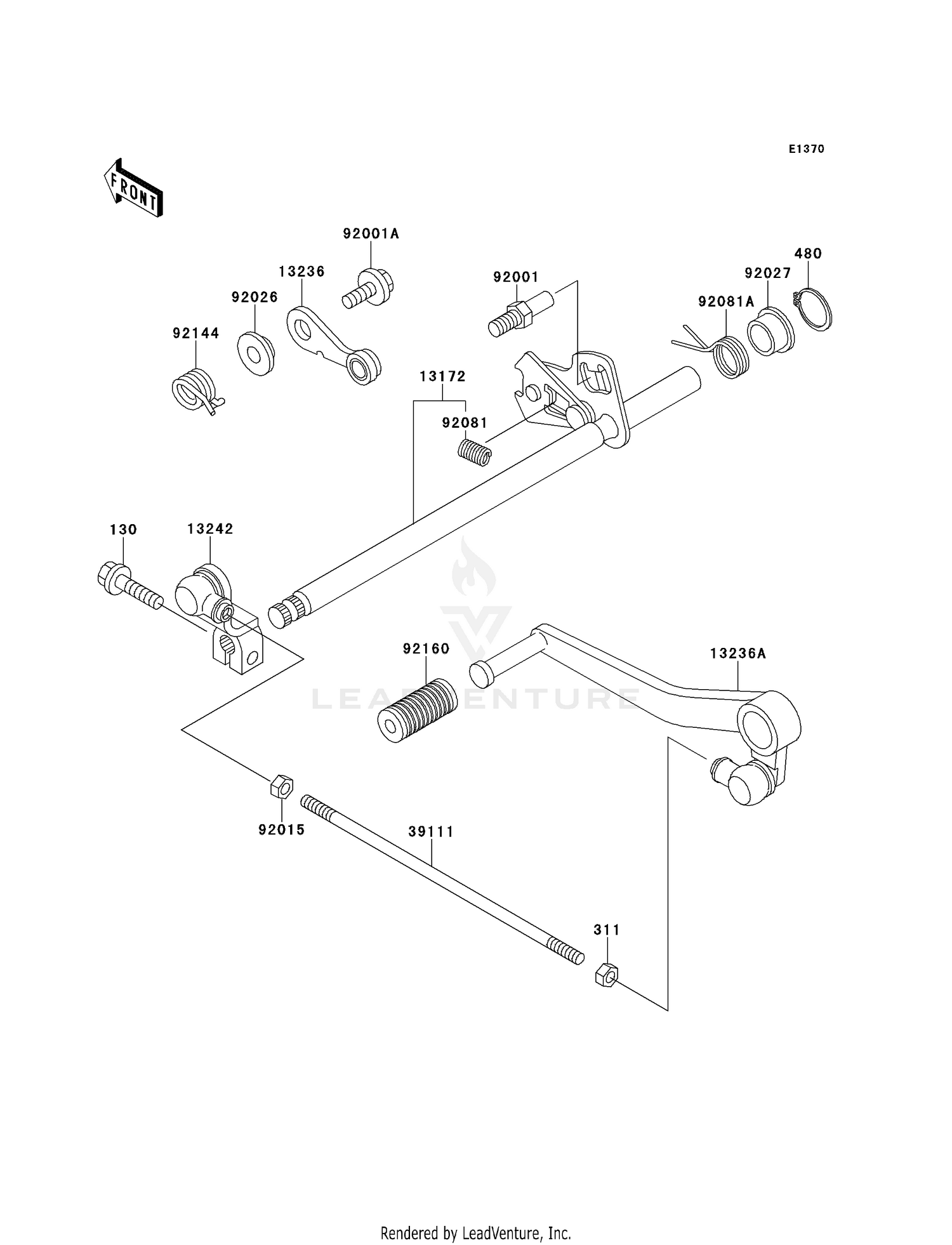

Gear Change Mechanism Diagram

Item MSRP Qty
#130 BOLT-FLANGED,6X20
130S0620
Superseded by 130CB0620
 $7.39
Available to order.
Add to View Price
#311 NUT-HEX,6MM
311J0600
Superseded by 311BB0600
 $1.01
Available to order.
Add to View Price
#480 CIRCLIP-TYPE-C,13MM
480J1300
 $3.80
Available to order.
Add to View Price
#13172 SHAFT-ASSY-CHANGE
13172-1072
Superseded by 13172-1092
 $120.65
Available to order.
Add to View Price
#13236 LEVER-COMP,NEUTRAL POSITION
13236-1209
 $18.96
Available to order.
Add to View Price
#13236A LEVER-COMP,PEDAL
13236-1211
 $131.27
Available to order.
Add to View Price
#13242 LEVER-ASSY-CHANGE,BOS
13242-1285
 $58.50
Available to order.
Add to View Price
#39111 ROD-TIE
39111-1057
Superseded by 39111-1071
 $10.50
Available to order.
Add to View Price
#92001 BOLT,RETURN SPRING
92001-1455
 $4.54
Available to order.
Add to View Price
#92001A BOLT,W/WASHER,6X12
92001-1516
 $4.84
Available to order.
Add to View Price
#92015 NUT,LEFT HANDED,6MM
92015-1178
 $4.17
Available to order.
Add to View Price
#92026 SPACER
92026-1217
 $5.34
Available to order.
Add to View Price
#92027 COLLAR,13X18X9
92027-1801
 $8.36
Available to order.
Add to View Price
#92081 SPRING,CHANGE LEVER
92081-1275
 $4.13
Available to order.
Add to View Price
#92081A SPRING,CHANGE LEVER R
92081-1279
 $7.02
Available to order.
Add to View Price
#92144 SPRING,NEUTRAL POSITI
92144-1478
 $6.61
Available to order.
Add to View Price
#92160 DAMPER,CHANGE PEDAL
92160-1036
Superseded by 92161-2382
 $4.89
Available to order.
Add to View Price
