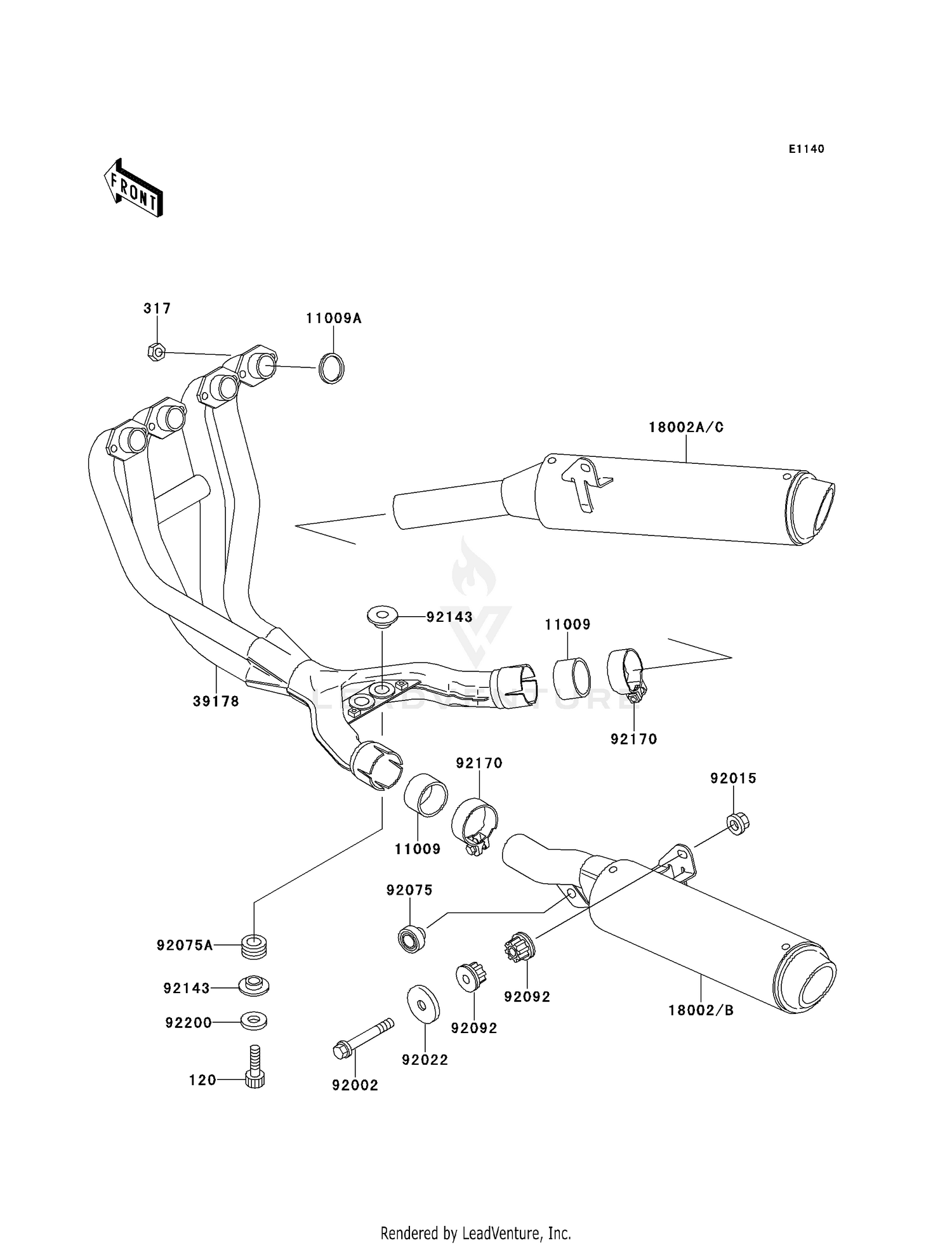

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET,10X35
120P1035
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#317
NUT-HEX-SMALL,8MM,BLA
317J0800
Superseded by 317BB0800
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,EXHAUST PIPE H
11009-1680
Superseded by 11060-1330
|
$24.49 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,EXHAUST PIPE HOLDER
11009-1856
|
$5.48 | ||
|
Available to order. Add to View Price |
|||
|
#18002
BODY-COMP-MUFFLER,LH
18002-1947
|
$515.20 | ||
|
Available to order. Add to View Price |
|||
|
#18002A
BODY-COMP-MUFFLER,RH
18002-1948
|
$515.20 | ||
|
Available to order. Add to View Price |
|||
|
#18002B
BODY-COMP-MUFFLER,LH
18002-1982
|
|||
|
Unavailable |
|||
|
#18002C
BODY-COMP-MUFFLER,RH
18002-1983
|
|||
|
Unavailable |
|||
|
#39178
MANIFOLD-COMP-EXHAUST
39178-1158
|
$1,071.67 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,10X55
92002-1127
|
$9.24 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,10MM
92015-1387
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
92022-289
|
$15.75 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-015
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,MUFFLER
92075-1621
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#92092
BUSHING-RUBBER,MUFFLER
92092-1013
|
$16.82 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1395
Superseded by 92152-1272
|
$6.96 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1154
|
$32.40 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,10.5X19X2.3
92200-1042
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
