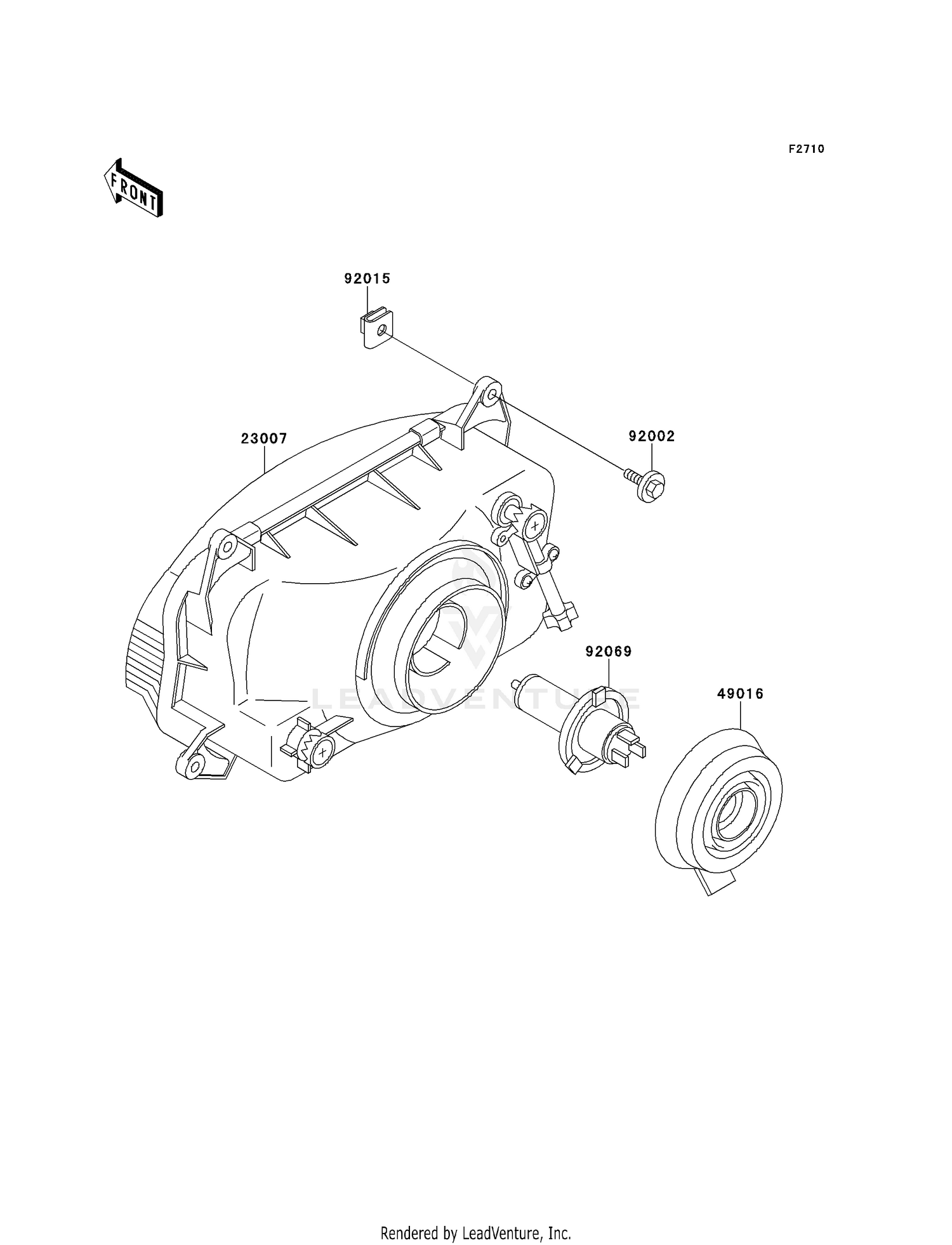

Head Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#23007
LENS-COMP,HEAD LAMP
23007-1228
Superseded by 23007-1333
|
$366.93 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL,HEAD LAMP
49016-1137
|
$13.81 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,UPSET-WP,6X22
92002-1262
Superseded by 92001-1774
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,6MM
92015-1094
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 60/55W,H4
92069-1002
Superseded by 92069-0050
|
$17.64 | ||
|
Available to order. Add to View Price |
|||
