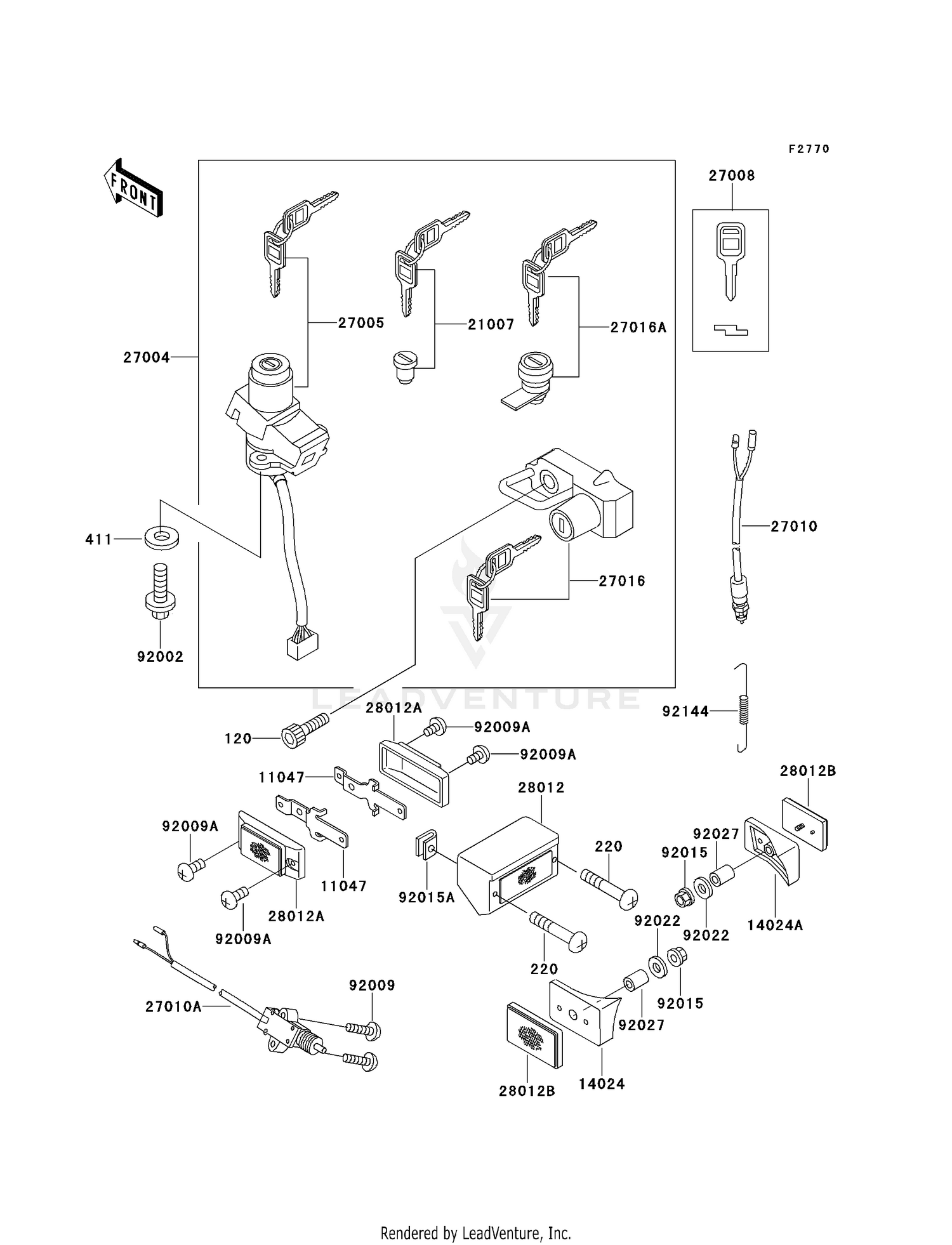

Ignition Switch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET,6X16
120S0616
Superseded by 120CB0616
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,5X55
220C0555
|
$4.03 | ||
|
Available to order. Add to View Price |
|||
|
#411
WASHER-PLAIN-SMALL
411E0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#11047
BRACKET,FR REFLECTOR
11046-1945
|
$8.41 | ||
|
Available to order. Add to View Price |
|||
|
#14024
COVER,REFLECTOR,LH
14024-1940
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#14024A
COVER,REFLECTOR,RH
14024-1941
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#21007
ROTOR,LOCK,TANK CAP
21007-5027
Superseded by 21007-5037
|
$88.79 | ||
|
Available to order. Add to View Price |
|||
|
#27004
SWITCH-ASSY
27004-5386
|
$408.92 | ||
|
Available to order. Add to View Price |
|||
|
#27005
SWITCH-ASSY-IGNITION
27005-5081
|
$225.87 | ||
|
Available to order. Add to View Price |
|||
|
#27008
KEY-LOCK,BLANK
27008-1103
|
$19.59 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,REAR BRAKE
27010-1093
Superseded by 27010-1479
|
$28.89 | ||
|
Available to order. Add to View Price |
|||
|
#27010A
SWITCH,SIDE STAND
27010-1226
|
$69.39 | ||
|
Available to order. Add to View Price |
|||
|
#27016
LOCK-ASSY,HELMET
27016-5163
Superseded by 27016-5203
|
$64.82 | ||
|
Available to order. Add to View Price |
|||
|
#27016A
LOCK-ASSY,TOOL BOX
27016-5164
Superseded by 27016-5204
|
$78.64 | ||
|
Available to order. Add to View Price |
|||
|
#28012
REFLECTOR-REFLEX,RR
28012-1069
|
$40.68 | ||
|
Available to order. Add to View Price |
|||
|
#28012A
REFLECTOR-REFLEX,FR
28012-1070
|
$34.90 | ||
|
Available to order. Add to View Price |
|||
|
#28012B
REFLECTOR-REFLEX,RR
28012-1072
|
$25.29 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,TORX,6X16
92002-1333
Superseded by 92153-0967
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW
92009-1492
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW
92009-1548
Superseded by 92009-1650
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,5MM
92015-1259
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,5MM
92015-1798
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,5.2X16X1.2
92022-263
|
$1.63 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,5.6X8X14.5
92027-1789
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,REAR BRAKE SWITCH
92144-1283
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
