2016 KTM SUPER DUKE 1290 R Air Filter OEM Parts

Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
< Back to Assembly Types

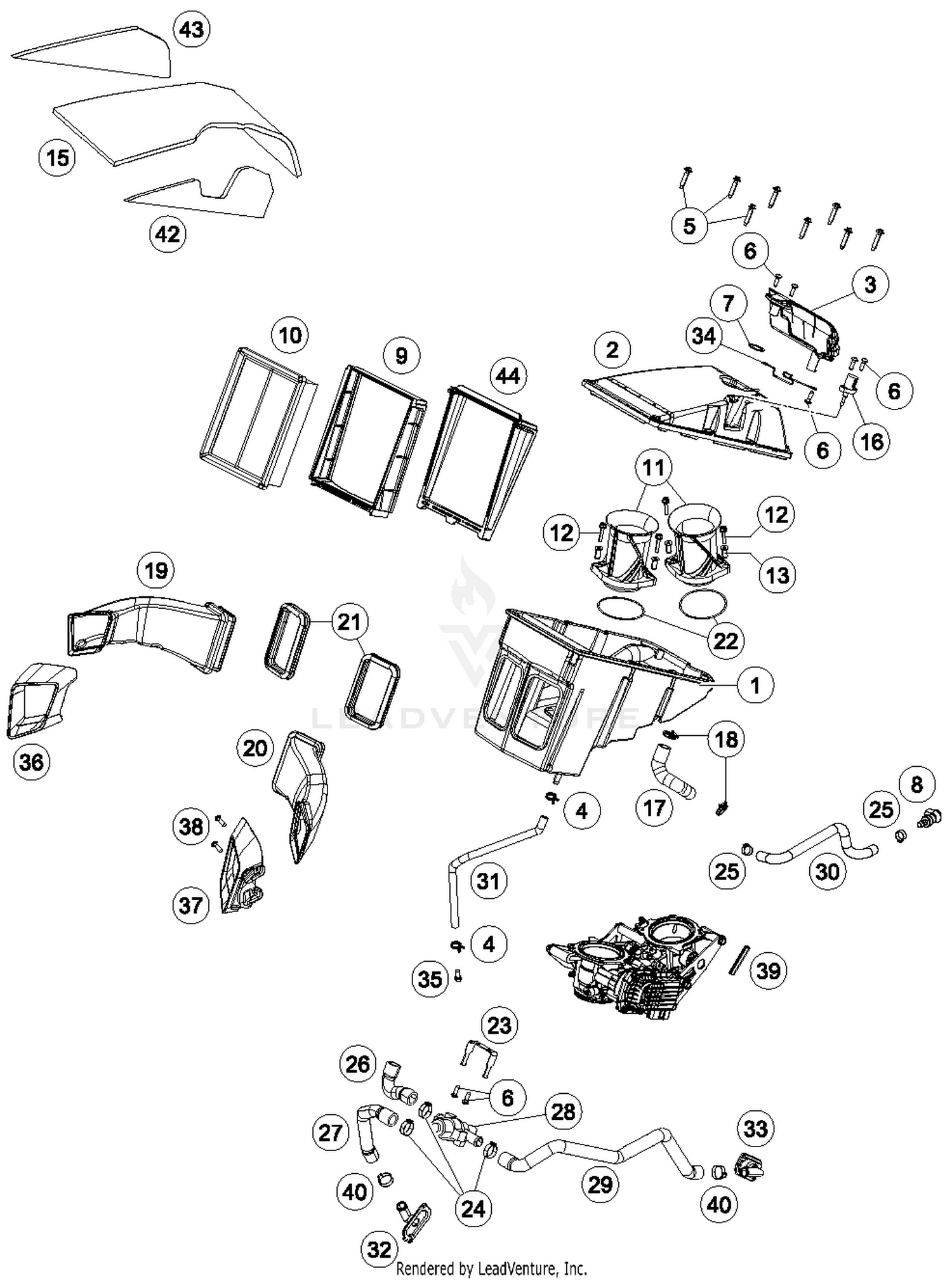

Air Filter Diagram

Item MSRP Qty
#1 AIR FILTER HOUSING LOWER PART
60306001200
 $49.60
Available to order.
Add to View Price
#2 AIR FILTER BOX COVER
60306002000
 $50.59
Available to order.
Add to View Price
#3 OIL SEPARATOR
60330088100
 $44.32
Available to order.
Add to View Price
#4 CLAMP YDNAC 10128 12MM
58031005000
 $3.62
Available to order.
Add to View Price
#5 SPECIAL SCREW K60X30 WS=6
0017060305
 $2.41
Available to order.
Add to View Price
#6 EJOT PT SCREW K50X16 1451
0081050161
 $1.20
Available to order.
Add to View Price
#7 O-RING 21,00X2,00 NBR70
0770021020
 $2.41
Available to order.
Add to View Price
#8 CLUTCH CPC BLACK 05
5850701050030
 $65.77
Available to order.
Add to View Price
#9 FILTERCLAMPING FRAME
60406016000
 $7.80
Available to order.
Add to View Price
#10 AIR FILTER
60306015100
 $32.77
Available to order.
Add to View Price
#11 INTAKE TRUMPET LENGTH 100
61341040100
 $23.20
Available to order.
Add to View Price
#12 HH COLLAR SCREW M5X25 ISA30
0025050256
 $1.20
Available to order.
Add to View Price
#13 BUSHING INTAKE TRUMPET
60306042010
 $4.83
Available to order.
Add to View Price
#15 INSULATION MAT MIDDLE
61306095010
 $24.41
Available to order.
Add to View Price
#16 AMBIENT-AIR TEMPERATURE SENSOR
61041080000
 $27.93
Available to order.
Add to View Price
#17 OIL SEPARATOR FOAM HOSE
60330088030
 $11.21
Available to order.
Add to View Price
#18 YDNAC-CLAMP 10173 (16MM) '98
58431082100
 $1.20
Available to order.
Add to View Price
#19 INTAKE SNORKEL R/S
61306041000
 $21.22
Available to order.
Add to View Price
#20 INTAKE SNORKEL L/S
61306040000
 $24.19
Available to order.
Add to View Price
#21 GASKET INTAKE DUCT
60306040050
 $7.80
Available to order.
Add to View Price
#22 O-RING 66X2,5 FKM
0770066025
 $7.47
Available to order.
Add to View Price
#23 RETAINING BRACKET SLS
61305031000
 $26.72
Available to order.
Add to View Price
#24 VARIABLE ONE-EAR CLAMP 22,6MM
00050226706
 $3.62
Available to order.
Add to View Price
#25 VARIABLE ONE-EAR CLAMP 15,7MM
00050157706
 $6.15
Available to order.
Add to View Price
#26 SAS HOSE - AIRBOX
61305035023
 $19.46
Available to order.
Add to View Price
#27 SAS HOSE CYLINDER FRONT
61305035021
 $23.20
Available to order.
Add to View Price
#28 CONTROL VALVE SAS 05
61005026000
 $156.19
Available to order.
Add to View Price
#29 SAS HOSE CYLINDER REAR
61305035022
 $37.94
Available to order.
Add to View Price
#30 FUEL HOSE THROTTLE VALVE
61307016050
 $36.29
Available to order.
Add to View Price
#31 HOSE NBR 7X11 PER METER
60015019001
 $9.01
Available to order.
Add to View Price
#32 SAS flange
61205122000
 $15.72
Available to order.
Add to View Price
#33 SAS-FLANGE
61205032000
 $22.32
Available to order.
Add to View Price
#34 MOUNTING BRACKET PLUG
61311099000
 $7.03
Available to order.
Add to View Price
#35 HH collar screw M8x12 TX40
0025080126
 $3.62
Available to order.
Add to View Price
#36 COVER INTAKE SNORKEL R/S
61306041033
 $55.10
Available to order.
Add to View Price
#37 COVER INTAKE SNORKEL L/S
61306040033
 $55.10
Available to order.
Add to View Price
#38 EJOT DELTA PT SCREW 45X12-Z
0081645121
 $1.20
Available to order.
Add to View Price
#39 EDGE PROTECTOR L=45MM 05
61011055045
 $3.62
Available to order.
Add to View Price
#40 VARIABLE ONE-EAR CLAMP 22,0MM
00050220706
 $3.62
Available to order.
Add to View Price
#42 INSULATION MAT L/S
61306095020
 $20.01
Available to order.
Add to View Price
#43 INSULATION MAT R/S
61306095030
 $20.56
Available to order.
Add to View Price
#44 FILTERCLAMPING LINER
60406017000
 $8.57
Available to order.
Add to View Price
