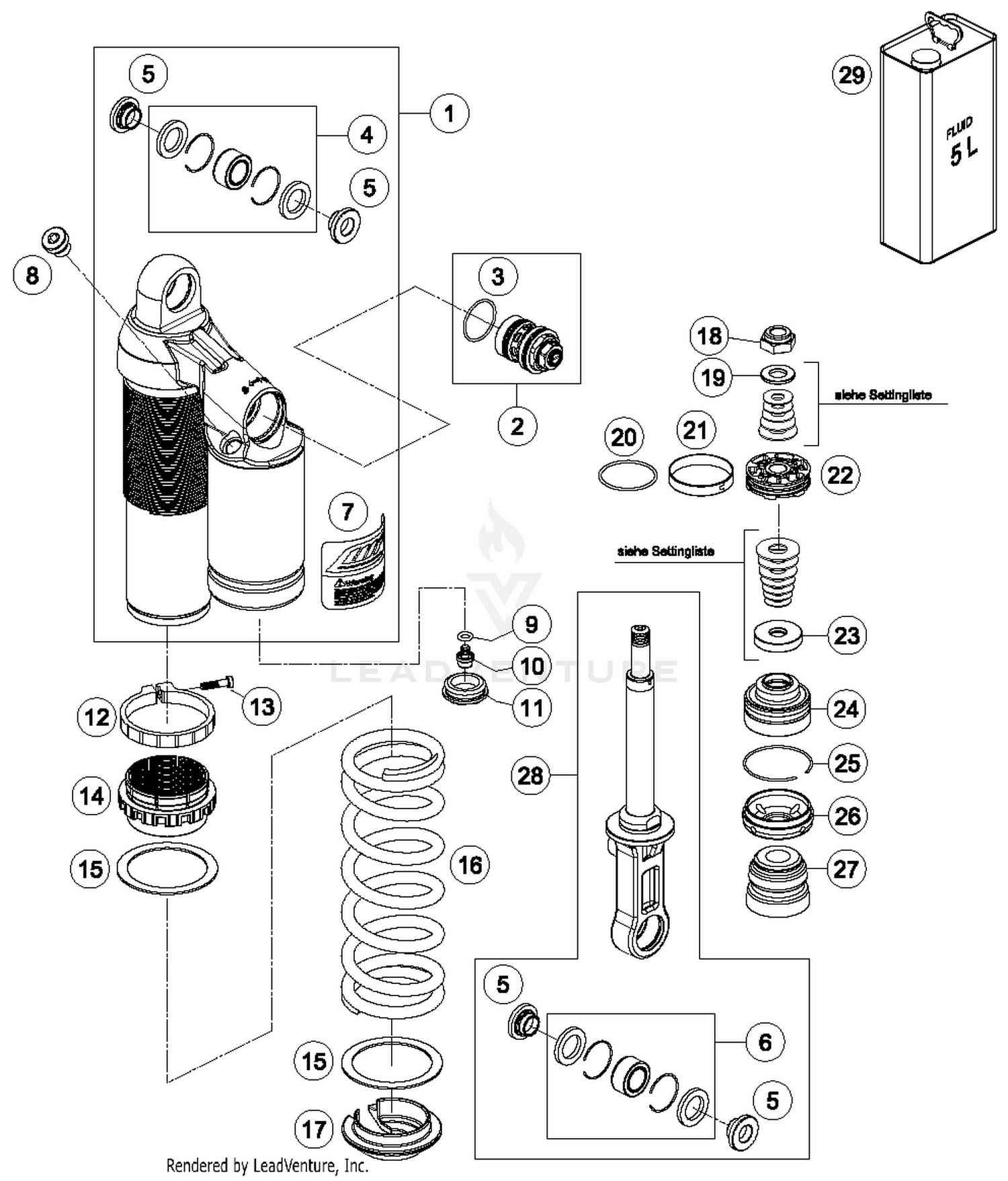

Monoshock Dissassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Monoshock top part
46181028S1
Superseded by 46181252S1
|
$623.36 | ||
|
Available to order. Add to View Price |
|||
|
#2
DCC-COMPR.DAMP.CONTROL CPL. 07
50180213S10
|
$130.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-ring 27x1,5 Viton70 green ISO 3601-3S
50180217
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
Ball joint bearing kit top 12mm
R12012
Superseded by R12012T
|
$42.01 | ||
|
Available to order. Add to View Price |
|||
|
#5
Bearing bush 14x15,03/18,5/24,5x14,45
46181138
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#6
Ball joint bearing kit top 12mm
R15009
Superseded by R12012T
|
$42.01 | ||
|
Unavailable |
|||
|
#7
Sticker WP warning India 35x60
52000087
Superseded by 52000149
|
$11.76 | ||
|
Available to order. Add to View Price |
|||
|
#8
HS cylinder-head screw R1/8 l8
50180095
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-ring 5,28x1,78 HNBR70 red
46810893
Superseded by S208600003000FB
|
$0.76 | ||
|
Unavailable |
|||
|
#10
PLUG SCREW M5X6 CPL.
36120151
Superseded by 36120151ST
|
$4.83 | ||
|
Unavailable |
|||
|
#11
Rubber cap do not open 22x5,5 NBR
46811208
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
Clamp d61
46181014
|
$25.84 | ||
|
Available to order. Add to View Price |
|||
|
#13
AH SCREW DIN0912-M 5X20
14460042
Superseded by 0912050203
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
Spring retainer M55x2x71x35 plastic
46181013
|
$15.17 | ||
|
Available to order. Add to View Price |
|||
|
#15
Washer 58,6x73,6x1,5
50180410
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING (59) 170-185 D 14 05
91010078S
|
$184.02 | ||
|
Available to order. Add to View Price |
|||
|
#17
Spring retainer 28x73x15 black
46180396
Superseded by 46181299
|
$72.26 | ||
|
Available to order. Add to View Price |
|||
|
#18
Piston rod nut M12x1
46180597
|
$25.62 | ||
|
Available to order. Add to View Price |
|||
|
#19
Washer 12x24x2,5
46811258
|
$29.14 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-ring 37x,82x1,78 Viton70 green
46810035
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#21
Piston ring 44x46x8
46812011
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#22
Piston 12,05x45,5x12,6 4,5/7
46810560
|
$162.02 | ||
|
Available to order. Add to View Price |
|||
|
#23
REBOUND WASHER 34/12 H5
46181117
|
$25.51 | ||
|
Available to order. Add to View Price |
|||
|
#24
Sealholder 46x28 cpl.
46180669S
|
$56.86 | ||
|
Available to order. Add to View Price |
|||
|
#25
Round-wire snap ring 49x1,8
46810010
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#26
Cover 46,12x5,5 h18
46181031
|
$26.50 | ||
|
Available to order. Add to View Price |
|||
|
#27
Rubber pad 17,2x45,2x30 black
46180365
|
$66.87 | ||
|
Available to order. Add to View Price |
|||
|
#28
Monoshock lower part
46180654S15
Superseded by 46181260S1
|
$432.40 | ||
|
Available to order. Add to View Price |
|||
|
#29
SHOCK ABSORBER FLUID 5 LT
50180751S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
