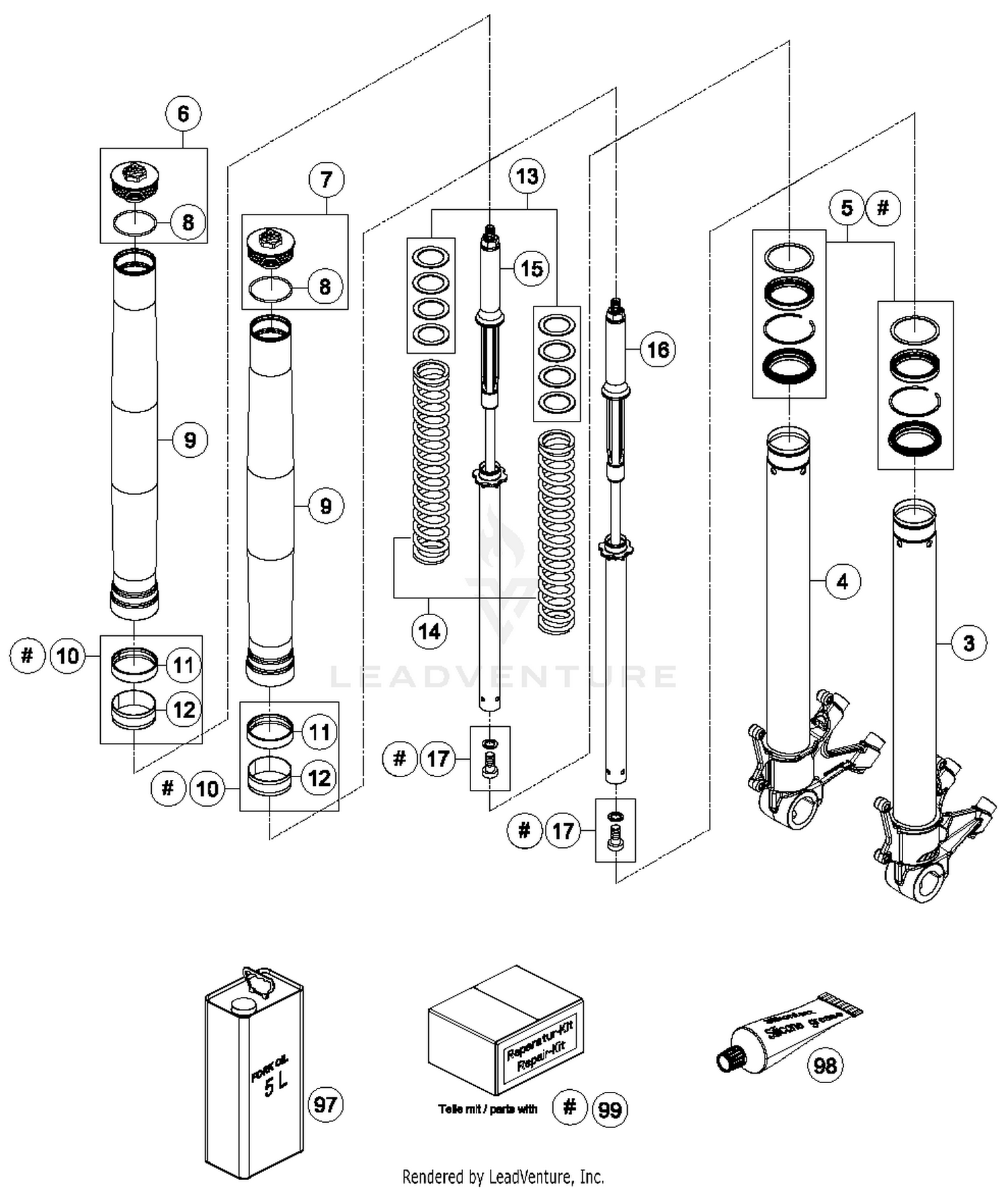

Front Fork Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#3
axle clamp left cpl. with innertube
48601081S2
Superseded by 48601081S02
|
$496.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
axle clamp right cpl. with innertube
48601082S2
Superseded by 48601082S02
|
$494.88 | ||
|
Available to order. Add to View Price |
|||
|
#5
Seal kit 48mm SKF black
R14040
Superseded by RP10048T
|
$78.53 | ||
|
Unavailable |
|||
|
#6
Screw cap M51x1,5 rebound red cpl.
48601062S2
|
$68.41 | ||
|
Available to order. Add to View Price |
|||
|
#7
Screw cap M51x1,5 compression white cpl.
48601062S3
|
$75.34 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-ring 45x2 NBR70 siliconized
46810340
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
Fork outer tube 49,13x550 dt54 db60
48600484
Superseded by 48601099
|
$734.68 | ||
|
Available to order. Add to View Price |
|||
|
#10
Guide bushing set fork 48mm
R14028
Superseded by R14047T
|
$30.24 | ||
|
Available to order. Add to View Price |
|||
|
#11
Guide bushing 48x52x12
48601009
|
$14.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
Guide bushing 47x49x20
48601008
|
$14.18 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING SPACER KIT
R514
|
$37.89 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING LINEAR SET D=4,9
95010034S
|
$184.79 | ||
|
Available to order. Add to View Price |
|||
|
#15
Cardridge cpl. right
57430049S
Superseded by 57430049S4
|
$491.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
Cardridge cpl. left
57430048S
Superseded by 57430048S4
|
$491.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
AH SCREW M10X20 SET
00501020S1
|
$13.52 | ||
|
Available to order. Add to View Price |
|||
|
#97
Fork Fluid Viscosity 4.0 5L
48601166S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#98
Fuchs grease IPR (250g)
T511
Superseded by T14034
|
$40.69 | ||
|
Available to order. Add to View Price |
|||
|
#99
REP. KIT 1290 SD 2014
R14041
|
$191.08 | ||
|
Available to order. Add to View Price |
|||
