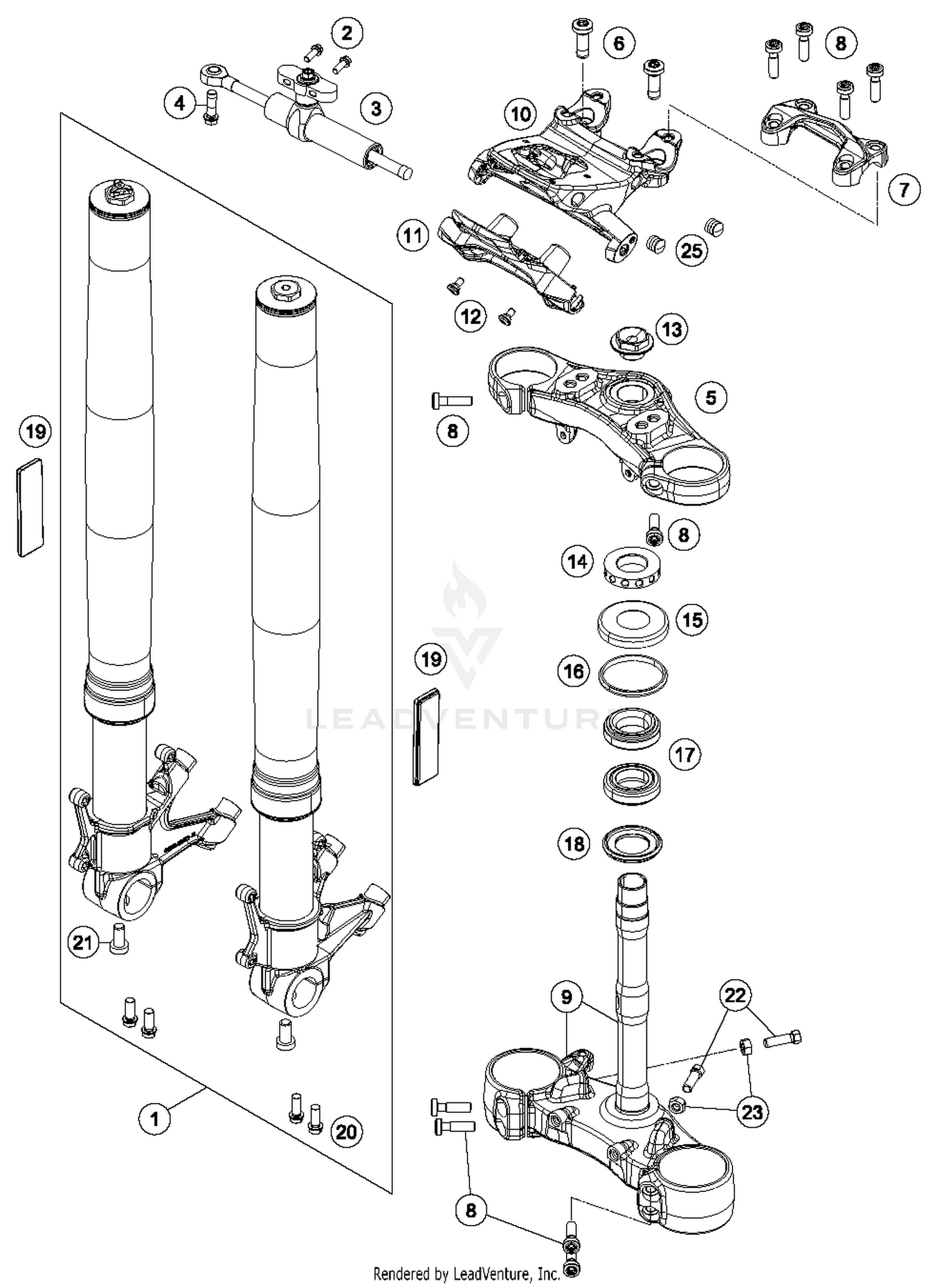

Front Fork, Triple Clamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Fork WP superduke 2017
14188N2201
Superseded by 14188Q2201
|
$3,384.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
HH collar screw M6x20 TX30
0025060206S
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#3
Steering SuperDuke damper cpl.
16181N52ES
Superseded by 16181N52E
|
$382.02 | ||
|
Unavailable |
|||
|
#4
HH COLLAR SCREW M8X25 TX40
0025080256S
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
TOP TRIPLE CLAMP
6130103402933S
|
$221.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHCS M10x30 TX45
0035100309S
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
HANDLEBAR CLAMP
6130103800033S
|
$66.54 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHCS M8x30 TX45
0035080306
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOTTOM TRIPLE CLAMP CPL.
6130103202933S
|
$362.88 | ||
|
Available to order. Add to View Price |
|||
|
#10
INSTRUMENTS BRACKET CPL.
6130104304433
|
$266.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
CASE INSTRUMENTS BRACKET
61301046000
|
$18.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
special screw M5x12
69008021160
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#13
STEER.HEAD SCREW M22X1,5 SW27
6030103600001
|
$18.36 | ||
|
Available to order. Add to View Price |
|||
|
#14
STEER.HEAD NUT
57301036100
|
$25.84 | ||
|
Available to order. Add to View Price |
|||
|
#15
STEERING HEAD COVER 05
61001086000
|
$16.38 | ||
|
Available to order. Add to View Price |
|||
|
#16
STEARING HEAD GASKET TOP
54601184000
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
TAPERED ROLLER BEARING CPL. 06
54201081100
|
$60.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING SUPPORT W. SEALING LIP
77701084000
|
$22.76 | ||
|
Available to order. Add to View Price |
|||
|
#19
REFLECTOR YELLOW ''CEV''
58412080100
Superseded by 58412080300
|
$9.12 | ||
|
Available to order. Add to View Price |
|||
|
#20
HH collar screw M8x20
0025080206
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#21
AH SCREW M10X20 SET
00501020S1
|
$13.52 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPECIAL SCREW M8X26 WS=10
59001037000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#23
HEXAGON NUT DIN0934-M 8
0934080003
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLUG SFL13
55009086000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#99
STEAR. HEAD REP. KIT 1290 SD-R
61301080044
|
$138.48 | ||
|
Available to order. Add to View Price |
|||
