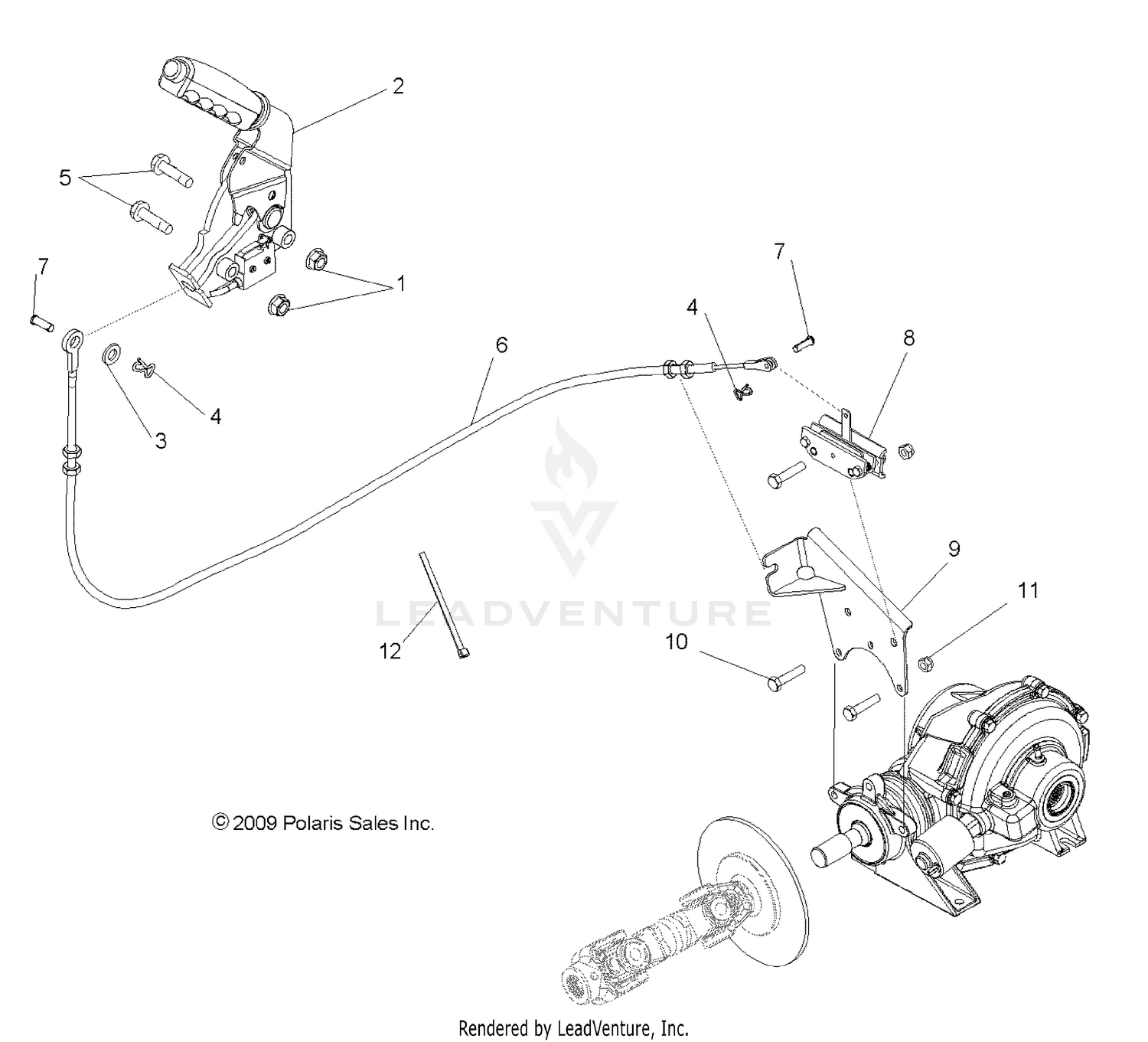

Brakes, Park Brake Asm. - R14hr76aa/aj (49rgrbrakepark108004x4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM., PARK BRAKE LEVER
1911573
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, CLEVIS
7661843
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN-CLIP,14MM
7661140
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT-M8X1.25X25,HXFLG-OLIVE D
7518514
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CABLE, PARK BRAKE
7081585
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, CLEVIS
7661830
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
ASM., CALIPER, PARK BRAKE
1911786
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, PARK BRAKE, CALIPER MOUNT
5250390
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
7518342
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT-5/16-18 HX FLG NL-Y
7542343
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
