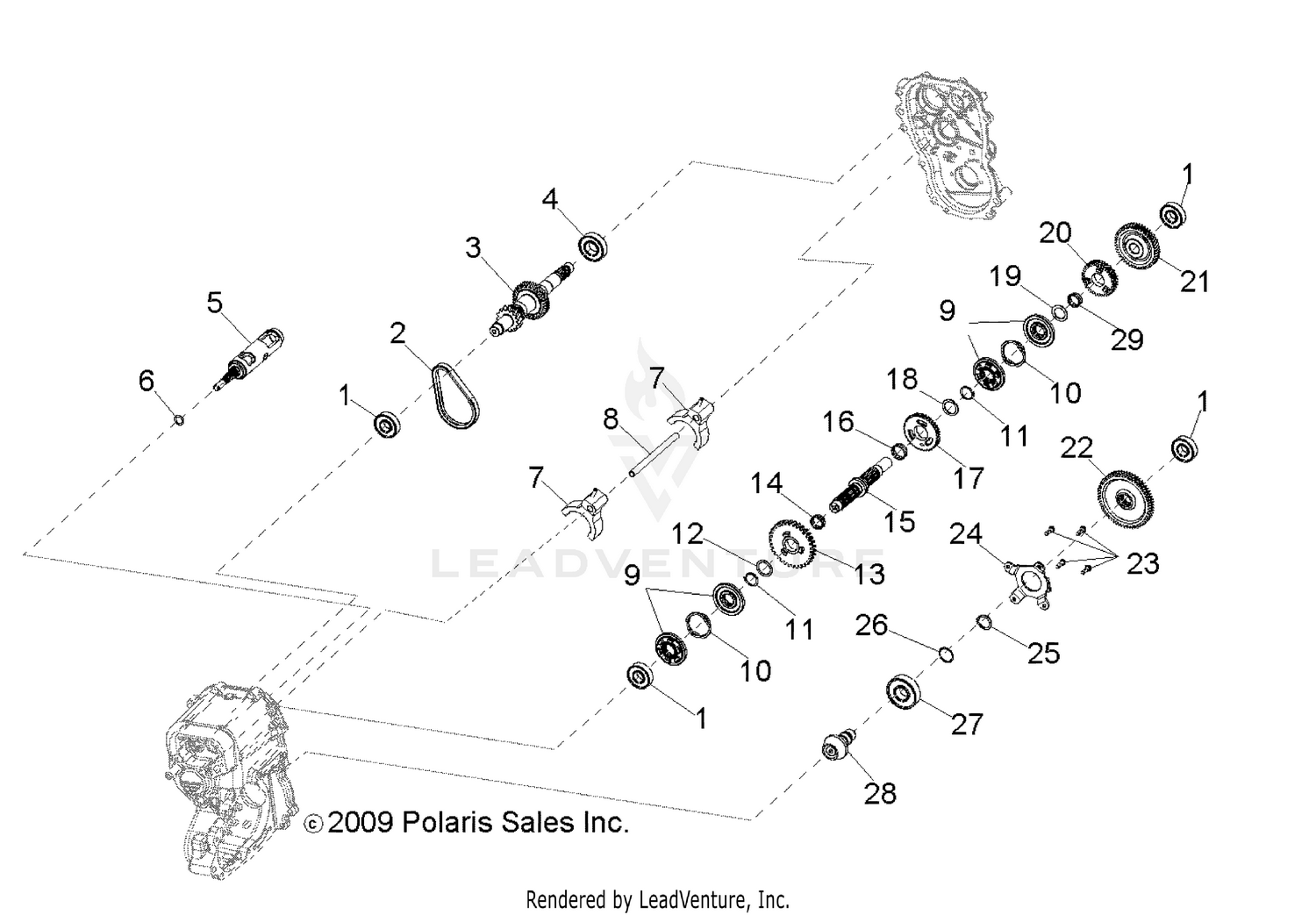

Drive Train, Main Gearcase Internal - R14hr76aa/aj (49rgrtransintl106x6) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
ASM., MAIN GEARCASE
1332978
|
$3,604.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
BEARING
3233018
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CHAIN
3234264
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SUB-ASM., INPUT SHAFT
3234677
|
$399.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING, BALL, 6205 C3 25X52X15
3233019
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DRUM, SHIFT
3234212
|
$329.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
3233840
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SUB-ASM., SHIFT FORK W/PIN
3234220
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RAIL, SHIFT SHAFT
3233860
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
ENGAGEMENT DOG
3233875
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, WAVE
3234144
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING, RETAINING
3233850
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
3233851
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, 33T
3233852
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING, NEEDLE
3233718
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHAFT, REVERSE
3233892
|
$384.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING, NEEDLE
3233103
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPROCKET, 38T
3234290
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
3233894
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER
3233855
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, 36T
3234678
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, 47T
3234138
|
$294.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR, 60T
3234139
|
$329.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW
3234086
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, BEARING CENTER DRIVE
3234122
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
RING,RETAINING BASIC,EXTERNAL 0.984
3233106
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPACER
3233357
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING
3234055
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SUBASM-GRND SPIRL BVL(411466)
3234911
|
$464.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING, NEEDLE
3233009
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
