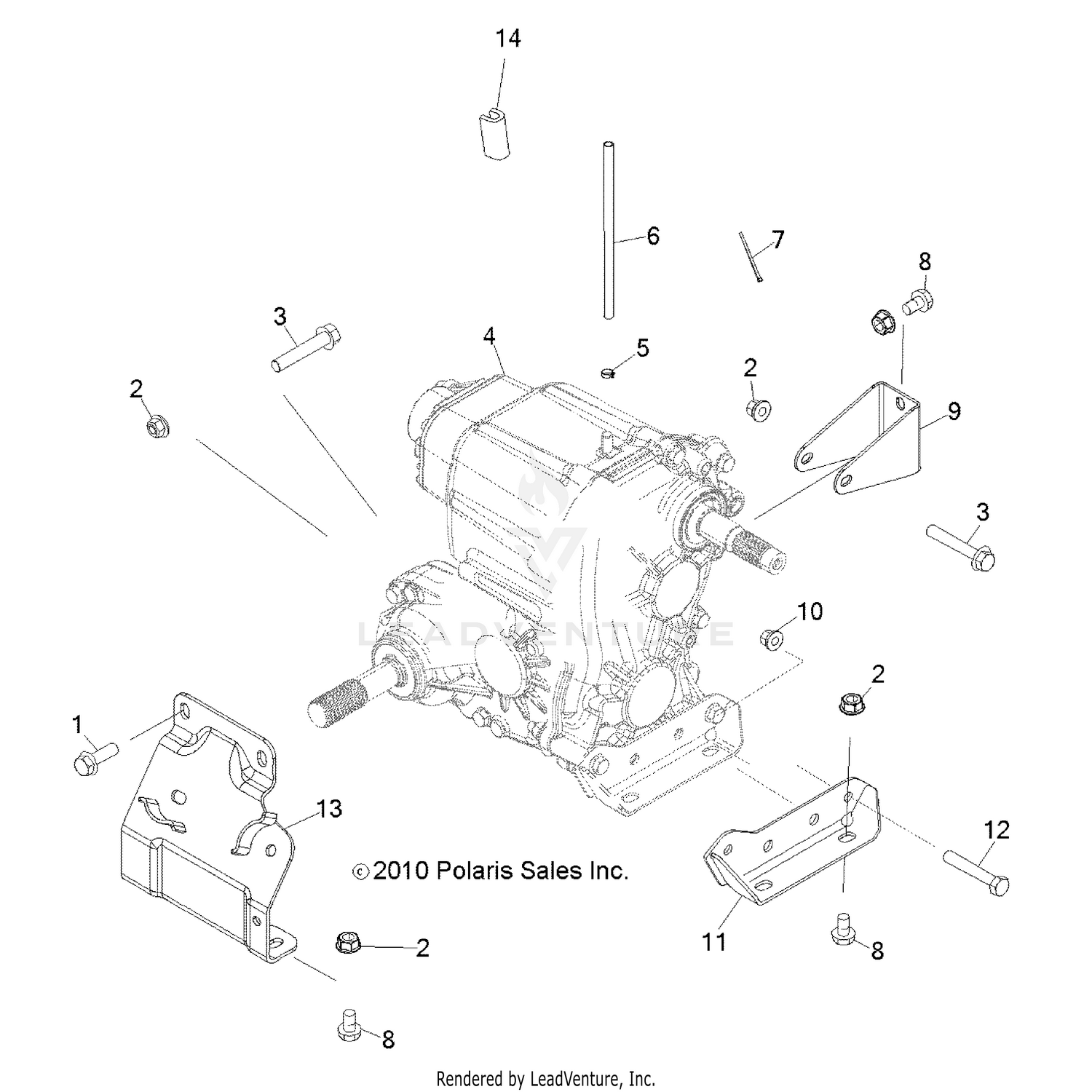

Drive Train, Main Gearcase Mounting - R14hr76aa/aj (49rgrgearcasemtg116x6) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT
7518558
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
7518561
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ASM., MAIN GEARCASE
1332978
|
$3,604.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP-HOSE, (LARGE GREEN)
7080307
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
LINE, FUEL
8450003-1525
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
7519037
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, TRANSMISSION MOUNT, REAR
5253893
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
3234043
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, TRANSMISSION MOUNT
5252611
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
3234042
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
MOUNT, TRANSMISSION ENGINE, BLACK
1015065-329
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
TRIM, EDGE, BLACK
5521131
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
