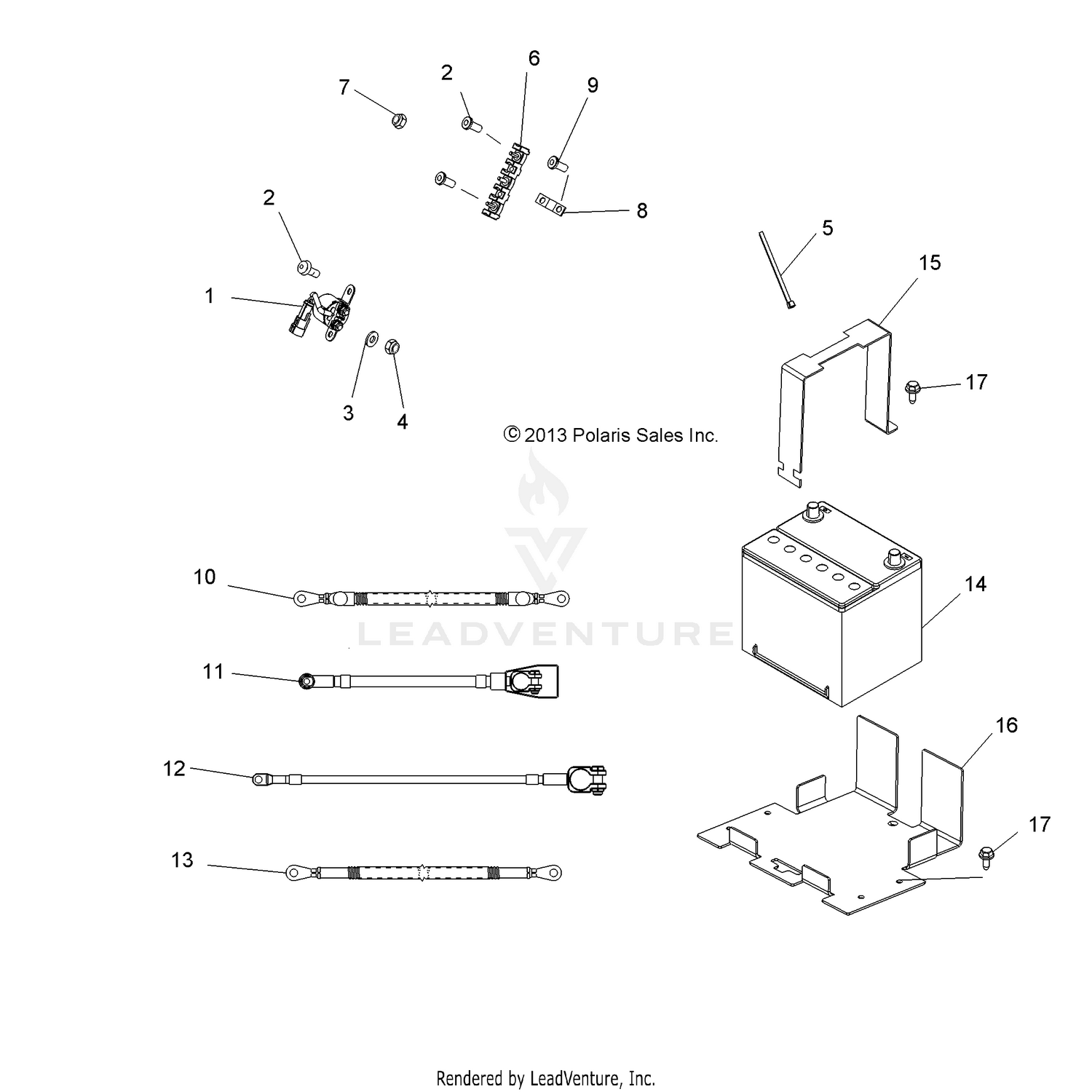

Electrical, Battery - R14hr76aa/aj (49rgrbattery146x6) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SOLENOID, STARTER
4012001
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW
7518196
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING LOCK
7552801
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, HEX
7546705
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BLOCK, TERMINAL
4011892
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT-M5X.8,HX NYL-Y
7546601
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
STRAP, GROUND
5248659
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCR-#10-24X3/4,PN/TR RD-TORX-Y
7512018
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CABLE, BATTERY TO SOLINOID
4014048
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
HARNESS, BOX
2412355
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CABLE, GROUND
4014566
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CABLE, SOLINOID/STARTER, RED
4010093
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BATTERY-575 CCA,FLOODED,SVC
4014132
Superseded by 4014132-P
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BATTERY-HD,AGM,SEALED
4081481
|
$199.99 | ||
|
Unavailable |
|||
|
#15
BRKT-BATTERY STRAP GALV
5257827
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET, BATTERY TRAY, BLACK
5258009-067
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
7518513
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
