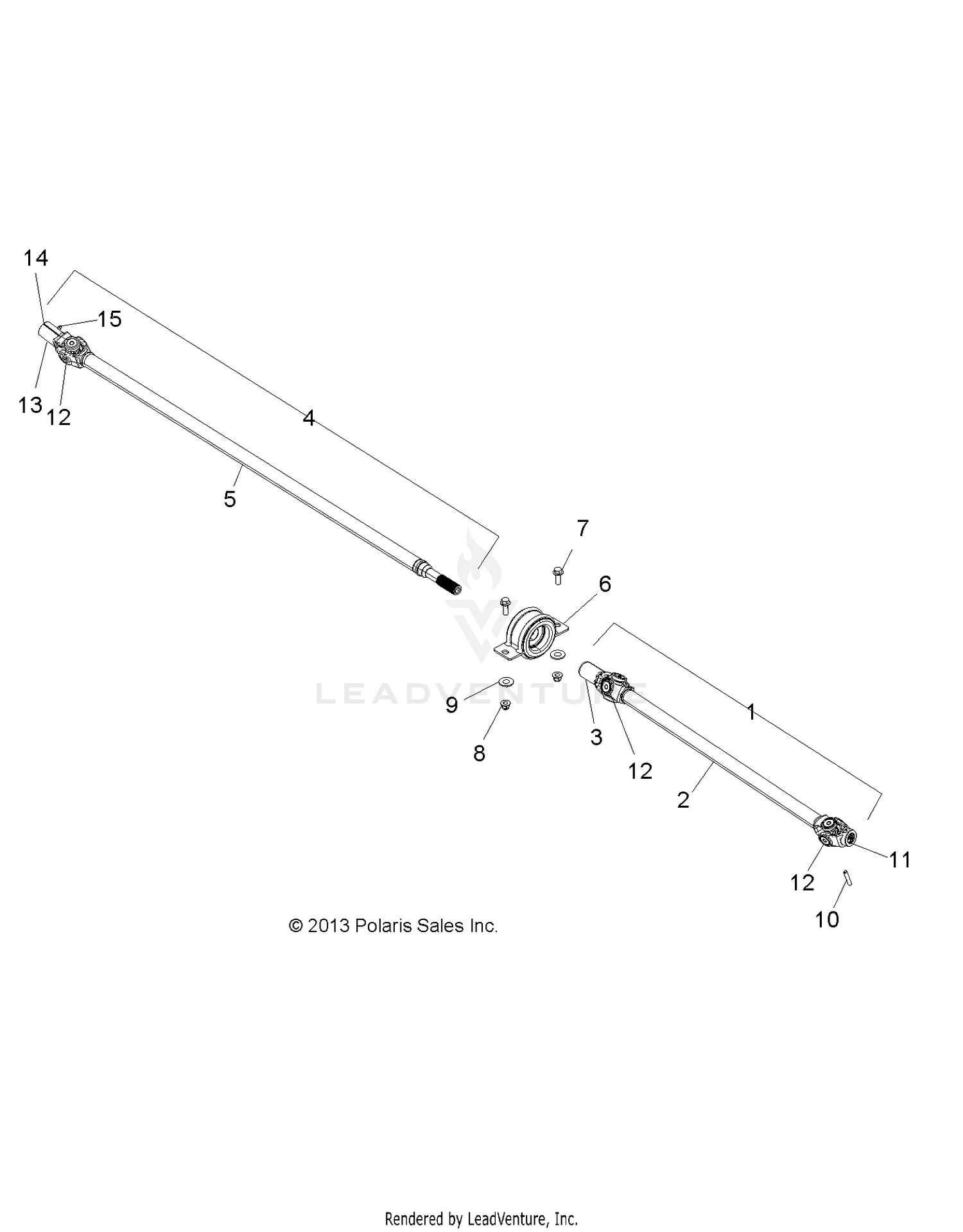

Drive Train, Front Prop Shaft - R14wh57aa/ac/ar/6eat (49rgrshaftprop14570crew) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM., PROP SHAFT, FRONT
1333230
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT, PROP, FRONT
1333168
|
$364.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
YOKE, SLIP, INDEXED
3235503
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ASM., PROP SHAFT, REAR
1333231
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, PROP, REAR
1333169
|
$324.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ASM-BEARING,FLEX
3514806
Superseded by 3515075
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
7519059
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, FLAT
7555852
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN-SPRING,5/16 X 1 5/8-Y
7661913
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
YOKE, PIN
3235502
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
U-JOINT
3235500
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
YOKE-SLIP
3235501
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
5411965
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
FITTING-LUBRICATION 1/4-28
7080424
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
