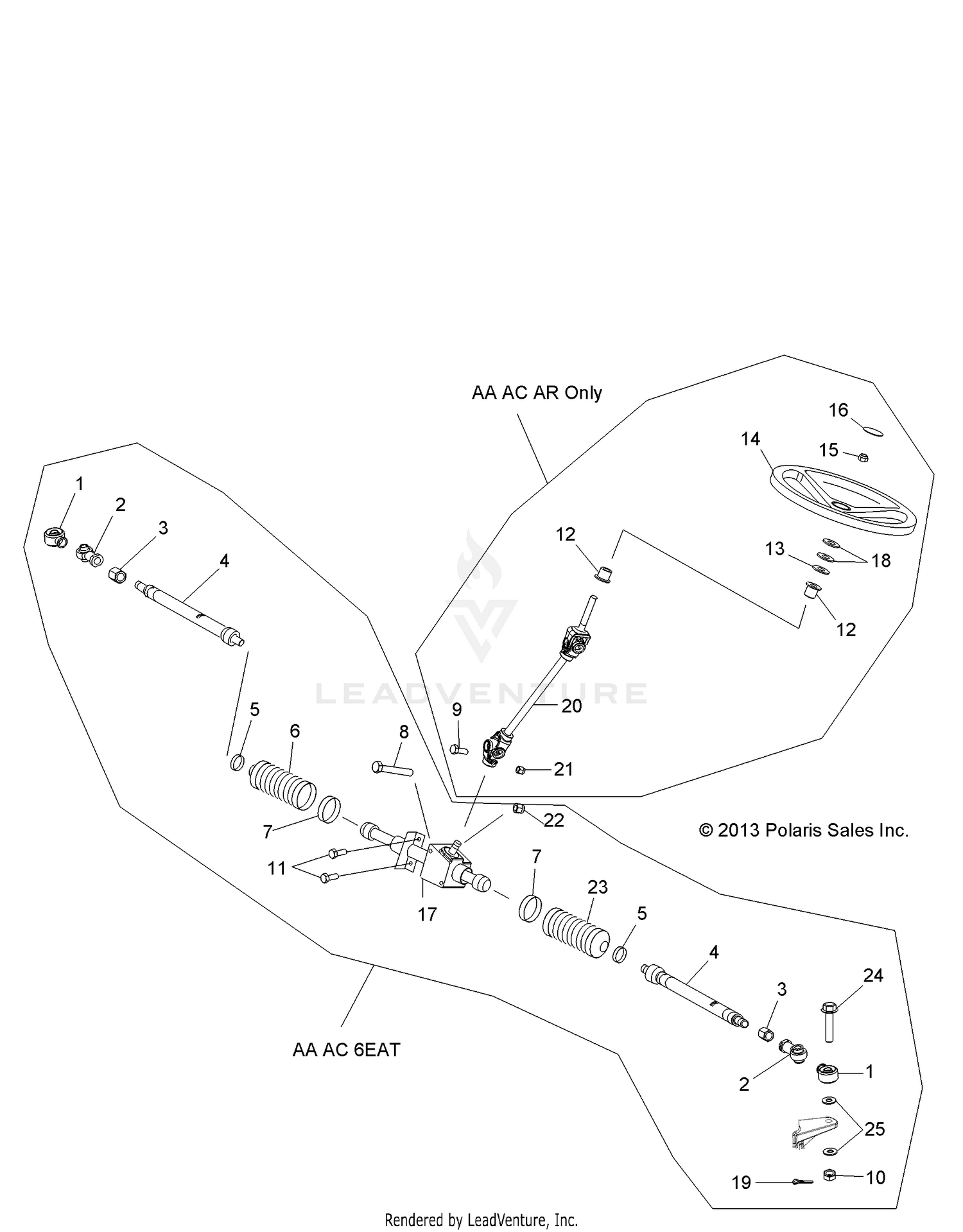

Steering, Steering Asm. - R14wh57aa/ac/ar/6eat (49rgrsteering14570crew) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOOT, SEAL, ROD END
5411920
Superseded by 5412929
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ROD, END
7061054
Superseded by 7061138
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, JAM
7547028
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
TIE ROD, INNER
-------
|
|||
|
Unavailable |
|||
|
#5
CLAMP, BOOT, SMALL
7080978
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOOT, PASSENGER, SIDE RACK
5412013
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, BOOT, LARGE
7080979
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
7518935
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
7518644
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
7547177
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
7518702
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSHING, SHAFT, STEERING
5434106
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BUSHING
7556301
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WHEEL-STEERING, 14"
1823623
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
7547506
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP-STEERING WHEEL
5436536
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
ASM., GEAR BOX, STEERING
1824077
|
$689.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, WAVE
7556063
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, COTTER
7661203
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHAFT, STEERING, UPPER/LOWER
1543241
|
$709.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
7547385
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOOT, DRIVER SIDE, RACK
5412012
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
7517909
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER
7556099
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
