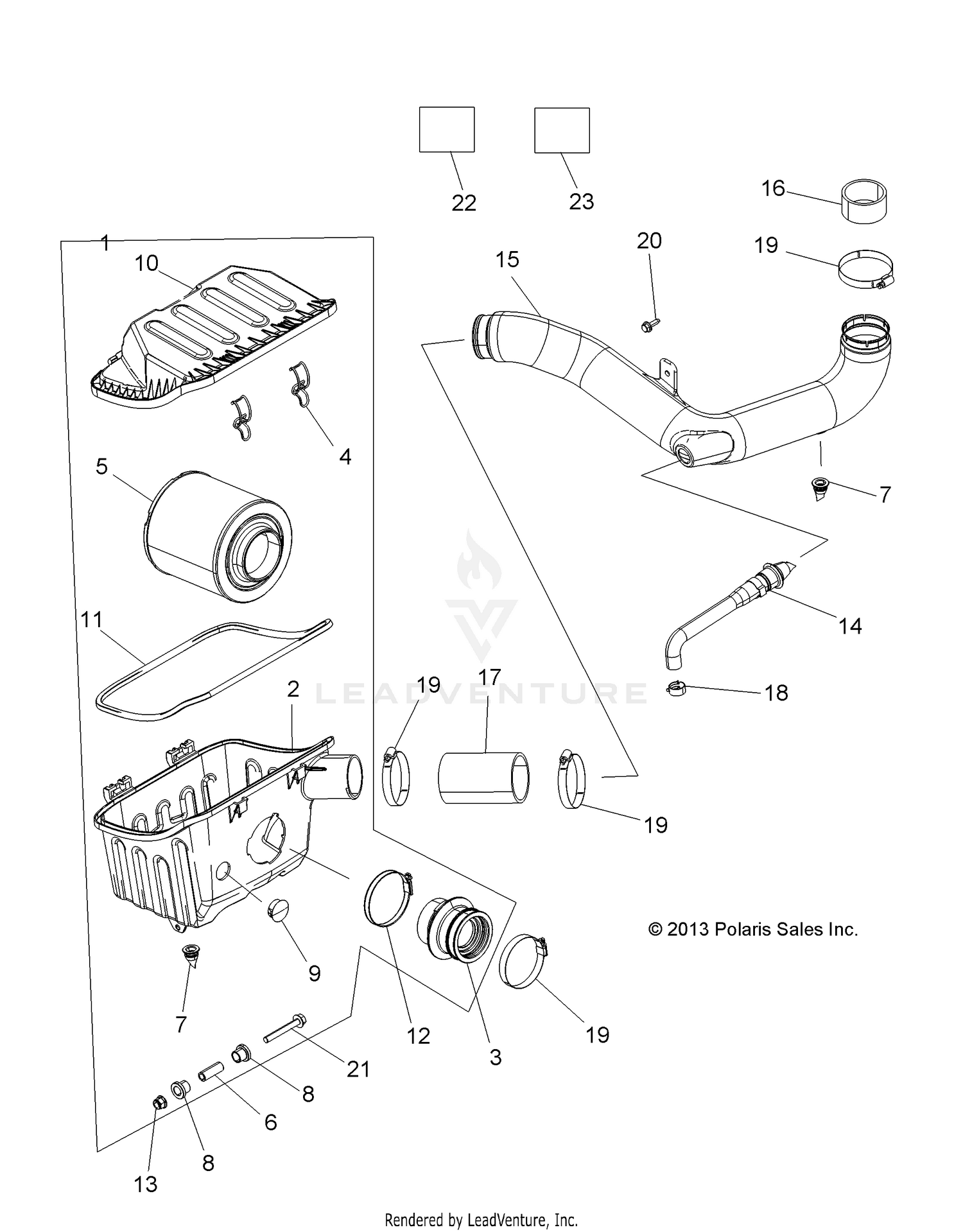

Engine, Air Intake System - R14wh57aa/ac/ar/6eat (49rgrairbox14570) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM., AIRBOX
1204922
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOX-AIR INTAKE
5450174
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOOT, ENGINE, INTAKE
5450310
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP-AIRBOX
7081707
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
FILTER-AIR
2521372
Superseded by 7082037
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, COMPRESSION
5138987
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG-DRAIN
5414472
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSHING-MOUNT
5414719
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG-1 INCH
5414780
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER-AIRBOX
5450175
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL-AIR BOX COVER
5813942
Superseded by 5814106
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP-BAND,NARROW 60-80MM
7080707
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
ASM-HOSE, BREATHER
5414500
Superseded by 2521911
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DUCT-INTAKE,AIRBOX
5414503
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE, SEAL, ENGINE, INLET
5414747
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL,ENGINE,INLET
5415033
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE, ENGINE, INLET
5414748
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP, HOSE, SPRING
7081026
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP-WORM GEAR,44-70MM,HOSE
7081623
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
7519298
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
DECAL, CAUTION, HEADER
7180133
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
DECAL, CAUTION INFO
7180123
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
