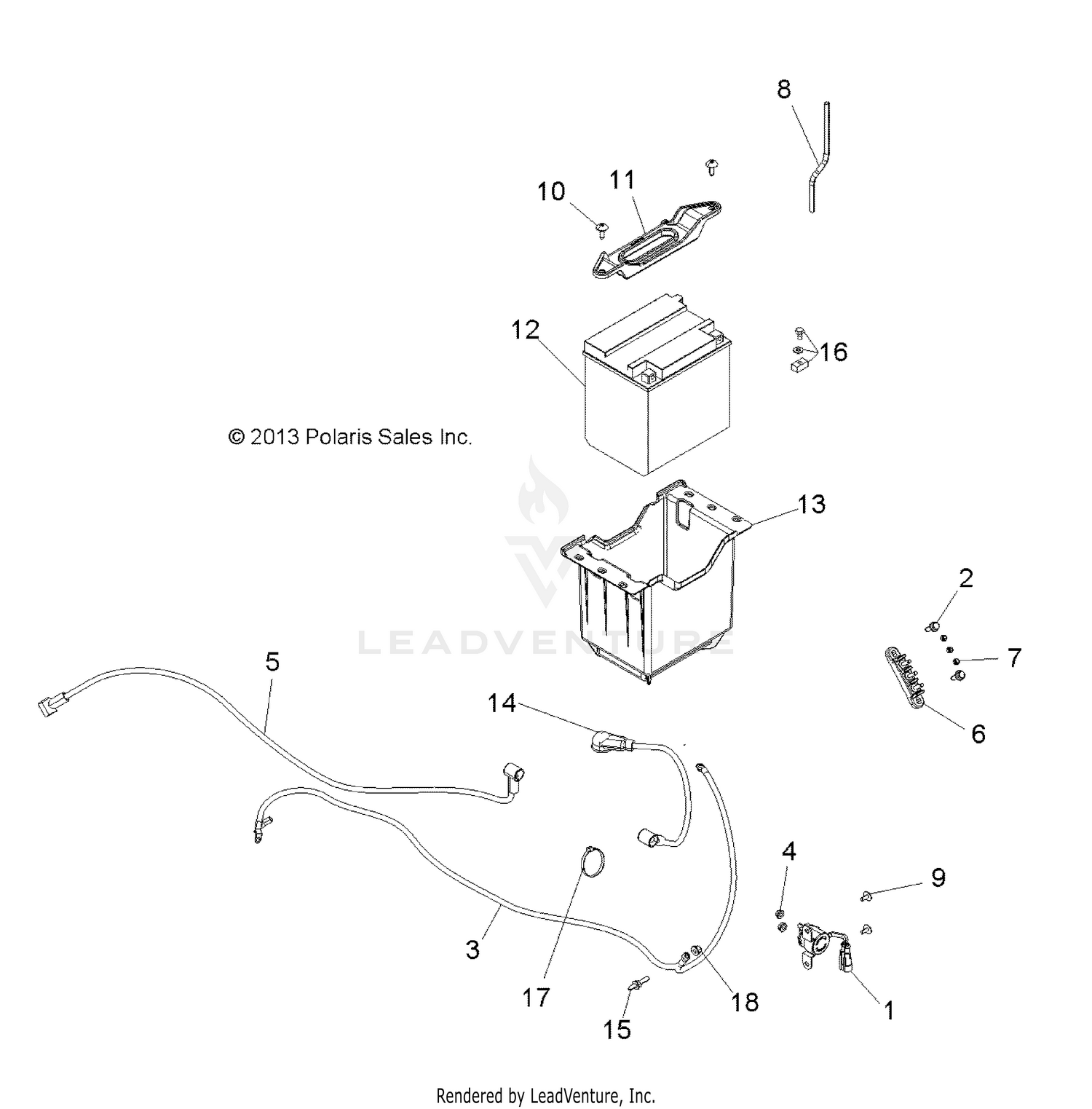

Electrical, Battery - R14wh57aa/ac/ar/6eat (49rgrbattery14570) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SOLENOID, STARTER
4012001
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CABLE, GROUND, ENG/BATTERY/CHASSIS
4014470
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, HEX
7547270
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CABLE, SOLENOID TO STARTER
4014305
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BLOCK, TERMINAL
4011892
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT-M5X.8,HX NYL-Y
7546601
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
TUBE-BATTERY VENT,305MM
5435030
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
7512084
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
7518280
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
STRAP, BATTERY
5438776
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PAD
5813584
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BATTERY-14AH,DRY W/O ACID
4012622
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BATTERY, 30 AMP, TOP MOUNT
4010630
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOX, BATTERY
5434037
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CABLE-BATT TO SOLENOID/TERMINA
4011497
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
STUD
7519333
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
KIT-BATTERY BOLT,14AH,RANGER
2204132
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
KIT, BATTERY BOLT
2202802
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT-M6 FLANGE,NYLOC
7547274
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
