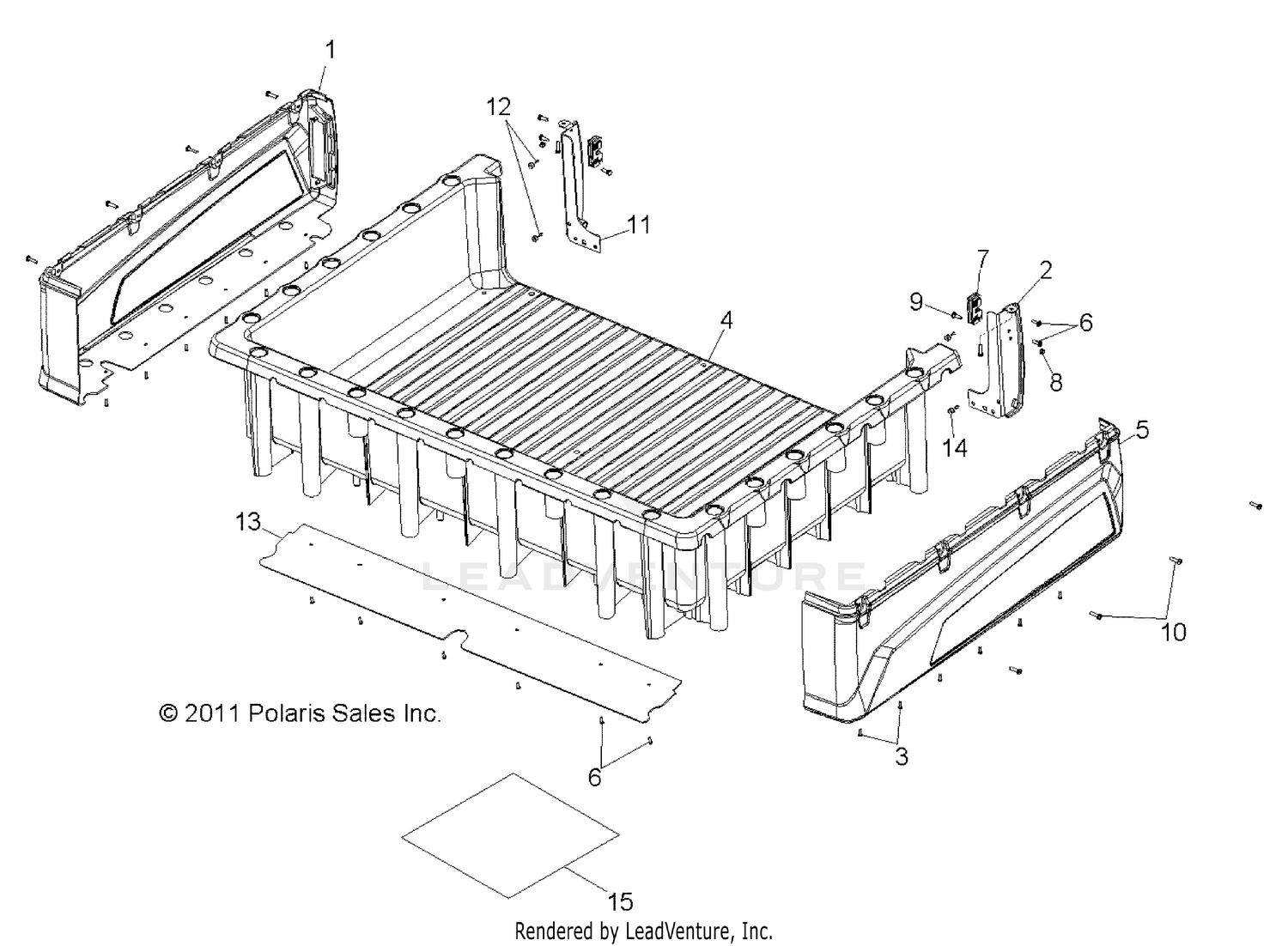

Body, Box Asm. - R12wh76ag/ar/eah/eav/eaw (49rgrbox12crew) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
Asm., Box, Short, Black
2634057-070
|
|||
|
Unavailable |
|||
|
#1
Panel, Box, Short, Black, RH
5437564-070
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Support, Tailgate, LH, Black
1017739-067
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Screw
7512026
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
Box, Short, Black
5438359-070
|
$1,289.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Panel, Box, Short, Black, LH
5437563-070
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Screw
7519205
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
LATCH-SLAM,TAILGATE
7081568
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Nut, Nylok
7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Bolt
7518376
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCR-#14X1 HI/LO-PH-PN TRX-M
7518158
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Support, Tailgate, Black
1017740-067
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Screw
7511858
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
ASM-PANEL,BOX,FRONT
5438617
Superseded by 2634866
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Bumper, Recess
5412919
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Foil
5813746
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
