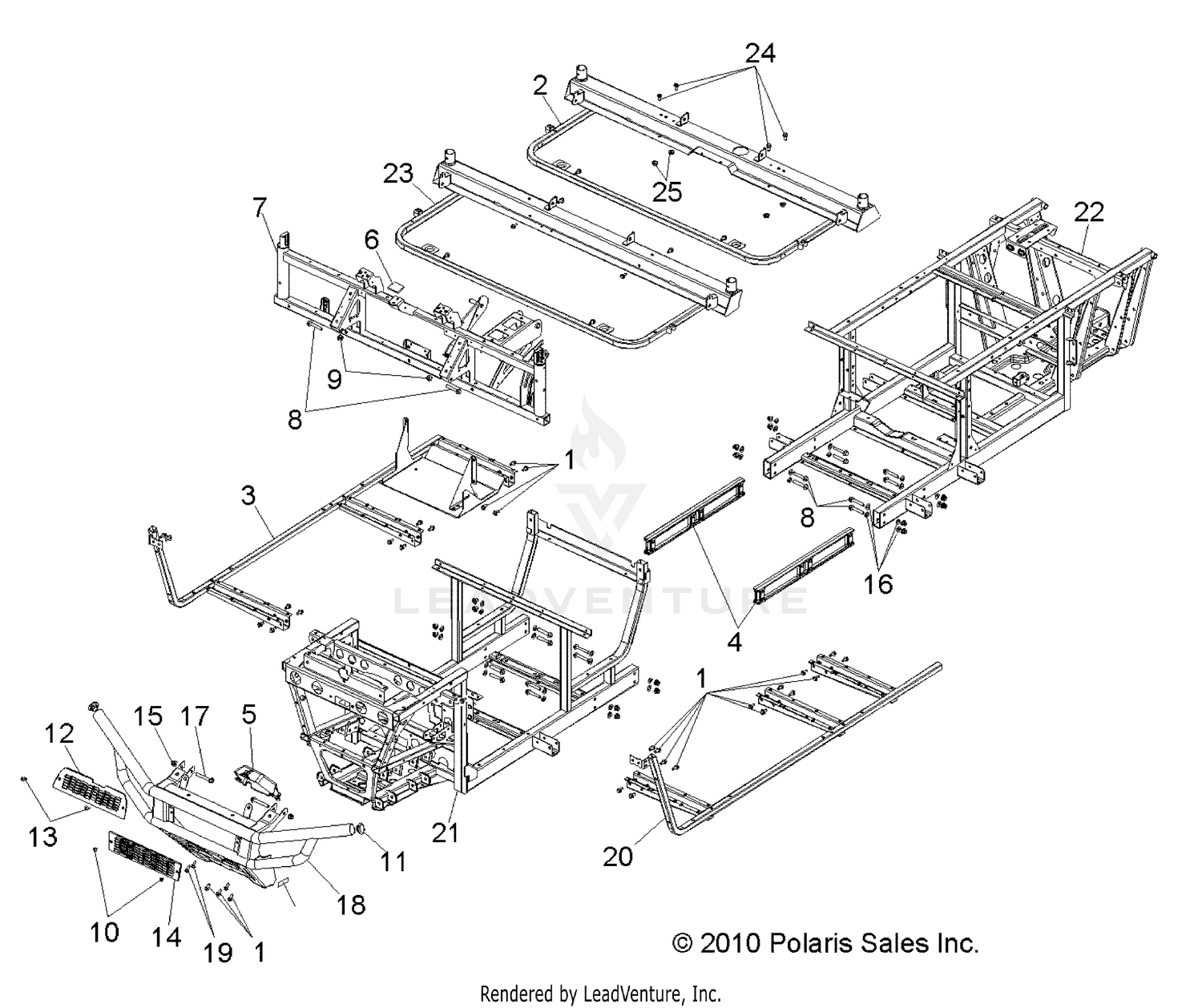

Chassis, Frame And Front Bumper - R12wh76ag/ar/eah/eav/eaw (49rgrchassis10crew) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Bolt
7518555
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Base, Cab/Seat, Black
1017809-067
|
$674.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WELD-FLOOR SUPT,FRONT,RH,BLK
1016865-329
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Support, Frame, Joint, Black
5632316-329
|
$499.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Bracket, Bumper, Guard, Black
5438181-070
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Foam, Hood, Support
5813421
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Support, Cab, Front, Black Engine Wrinkle
1017325-521
|
$684.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Bolt, Flange
7518563
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Screw
7518981
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP-BUMPER
5434191
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Screen, Fascia, Black
5438241-070
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Screw
7517685
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Screen, Bumper, Upper, Black
5438240-070
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Nut, Flange
7547313
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
Washer, Flat
7555806
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Bolt
7518473
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Bumper, EWB
1016310-521
|
$384.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCR-#14X1 HI/LO-PH-PN TRX-M
7518158
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WELD-FLOOR SUPT,FRONT,LH,BLK
1016864-329
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Frame, Front, Black
1017647-067
|
$1,954.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Frame, Rear, Black
1017648-067
|
$1,294.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Base, Cab/Seat, Front, Black
1017808-067
|
$399.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Screw
7517281
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Nut
7547317
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
