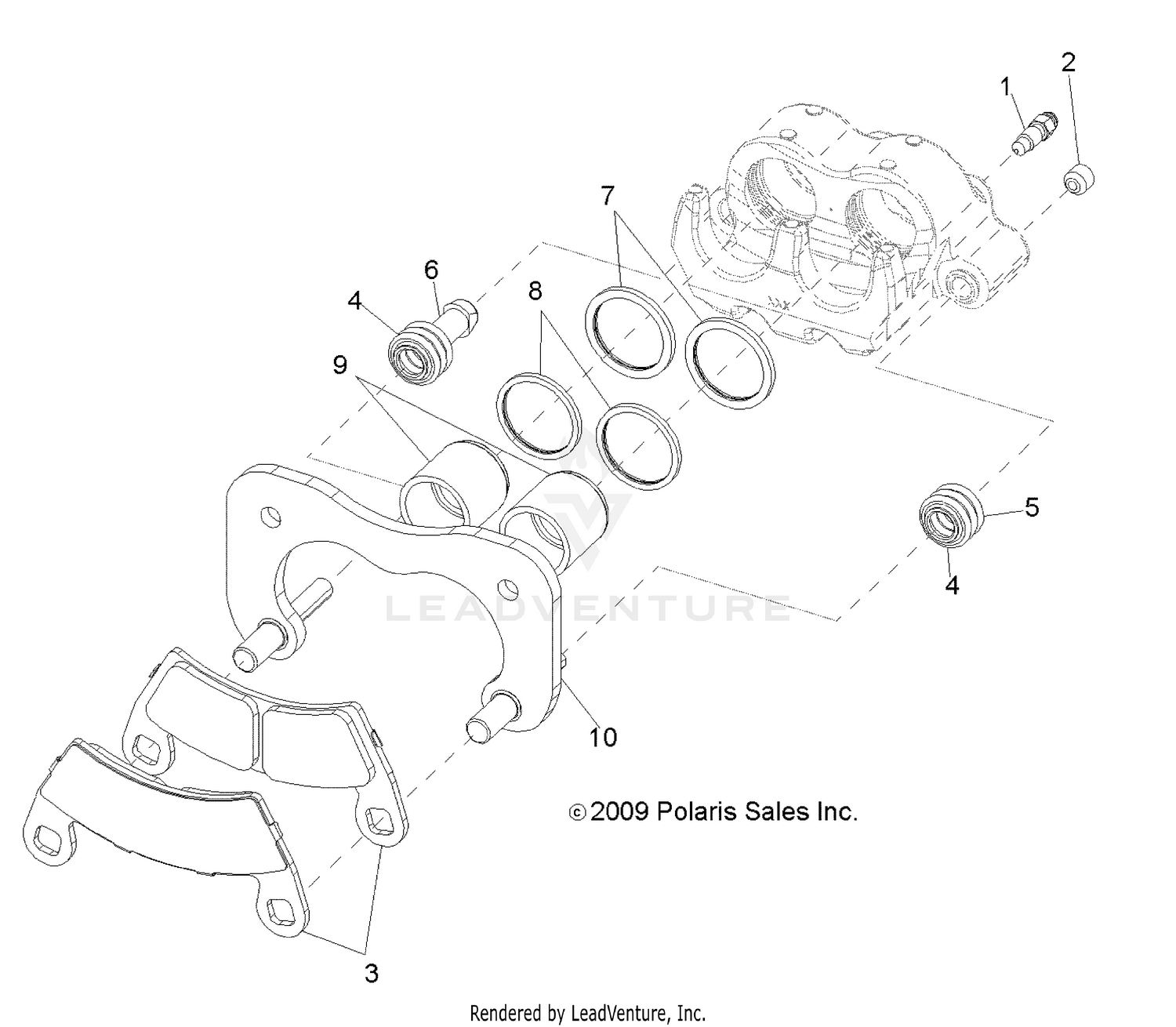

Brakes, Rear Caliper - R12wh76ag/ar/eah/eav/eaw (49rgrcaliperrr10800crew) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
Asm., Caliper, Brake, Rear, Dual Bore, LH
1911427
|
$324.99 | ||
|
Available to order. Add to View Price |
|||
|
#
Asm., Caliper, Brake, Rear, Dual, Bore, RH
1911429
|
$324.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Screw, Bleeder
7081343
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Screw, Socket Head Set
7518863
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
KIT-ASM,PAD,BRAKE,DB,1.375
2203747
Superseded by 2205949
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
KIT-BOOT,FRONT BRAKE
1930642
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOOT-PIN SEAL
5412506
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOOT-PIN BUSHING
5412505
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Ring, Square, Molded
5410780
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SQUARE RING-MOLDED (.094)
5410779
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PISTON & SEAL,KIT
5132294
Superseded by 1930665
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ASM-CALIPER MNT,REAR,METRIC,DB
1911428
Superseded by 1911762
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
