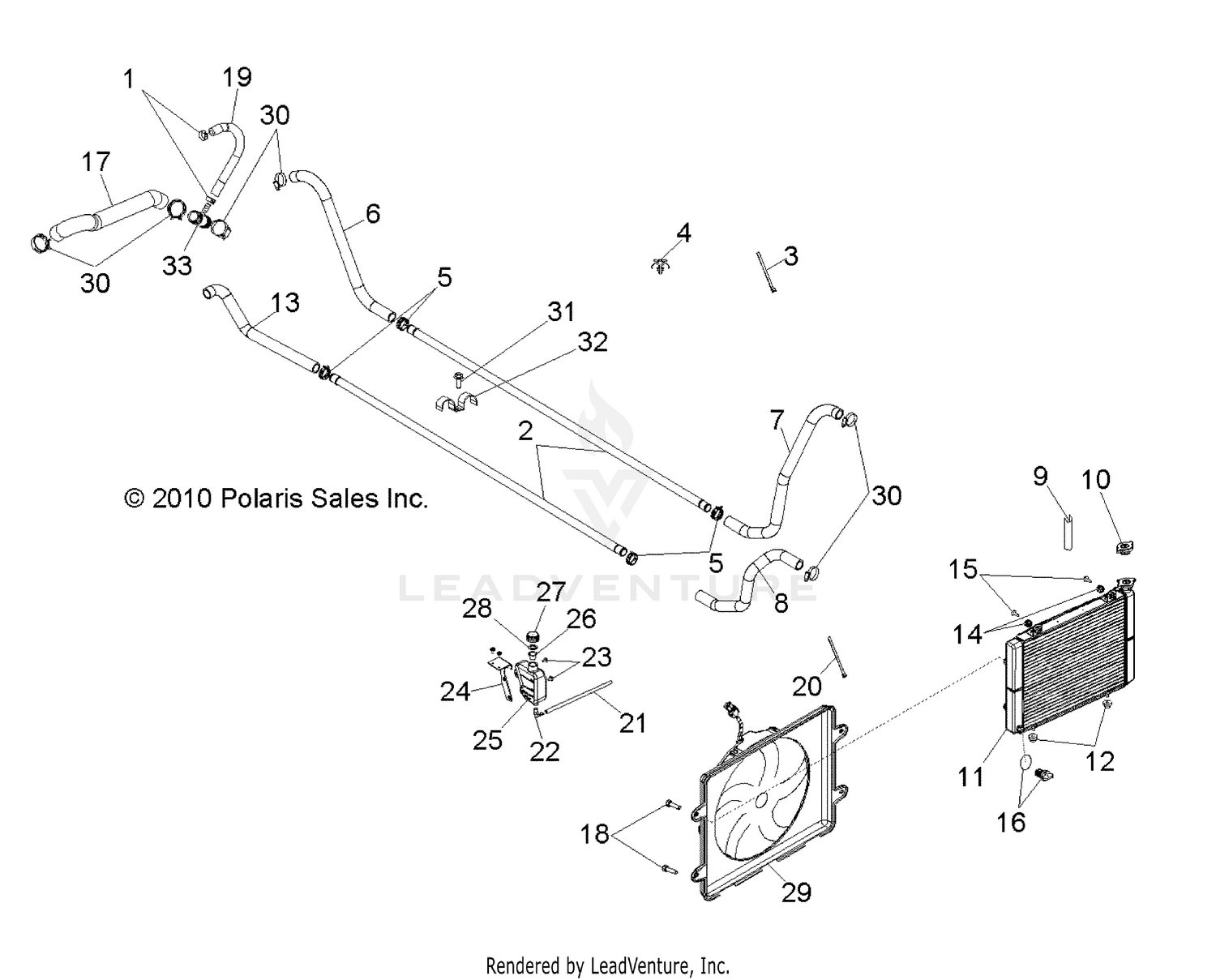

Engine, Cooling System - R12wh76ag/ar/eah/eav/eaw (49rgrcool11800crew) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP-HOSE,.875-SS
7080474
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Tube, Coolant
5335940
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Mount, Cable Tie
7080965
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Clamp, Spring Band
7080843
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Hose, Engine Inlet, Rear
5413954
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Hose, Radiator, Lower
5413853
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Hose, Radiator, Upper
5413745
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Trim, Edge
8360012-10
Superseded by 5521131
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Cap, Pressure
1240300
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
ASM., RADIATOR
1240527
Superseded by 1240721
|
$579.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
ASM., RADIATOR
1240528
Superseded by 1240721
|
$579.99 | ||
|
Unavailable |
|||
|
#12
BUSHING-MOUNT,LOWER RADIATOR
5410584
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE, ENGINE OUTLET, REAR
5413955
Superseded by 5414509
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Asm., Grommet and Insert
5413155
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Screw
7517685
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
VALVE-PLASTIC RAD/COOLER DRAIN
7052410
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE, BYPASS, FORMED
5414207
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Screw
7516822
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE-BYPASS,3/8IN FORMED
5413949
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CONDUIT,FLEX,1.250ID
5521287-18
Superseded by 5521287-20
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#20
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Line, Fuel
8450003-1525
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Fitting
7052065
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Screw
7512084
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
Bracket, Surge Tank, Black
5252305-329
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
TANK-SURGE
5436936
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CAP-OVER FLOW BOTTLE,DRILLED
5430743
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET-OVERFLOW CAP
5810279
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Asm., Fan
2411732
|
$374.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Clamp, Hose
7081174
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Screw
7517685
|
$1.99 | ||
|
Unavailable |
|||
|
#32
Clip, Coolant, Routing
5438331
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Connector, Tee
7052494
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
