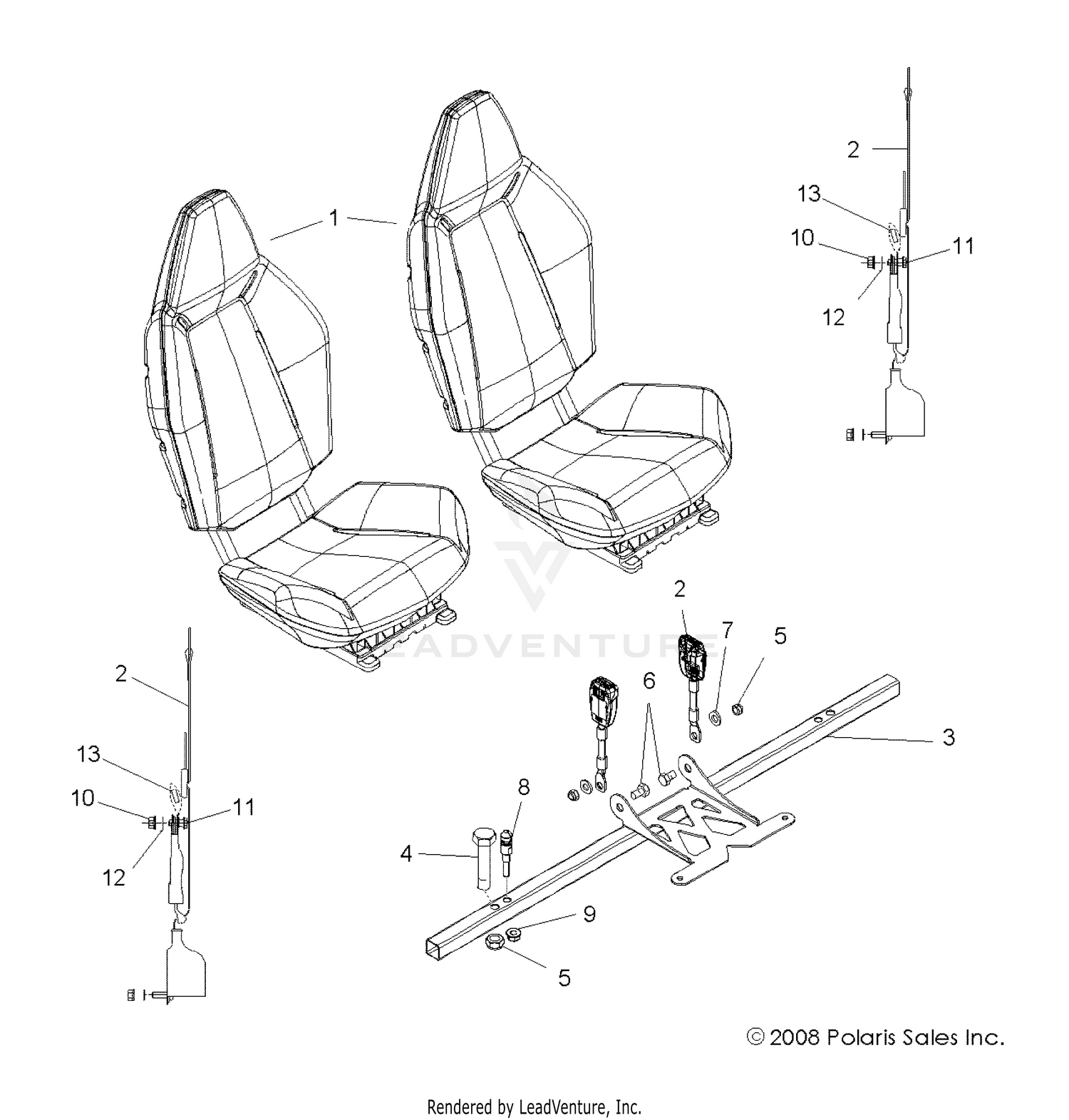

Body, Seat Mounting And Belts - R10vh76 All Options/vy76az (49rgrseatmtg09rzr) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Asm., Seat
-------
|
|||
|
Unavailable |
|||
|
#2
Asm., Seat Belt
2633796
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Base, Seat, Rear, Matte' Black
1015441-458
|
$152.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
Screw
7517442
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Nut, Nylon
7542525
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Bolt
7518820
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Washer, Flat
7556333
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Plunger, Latch
5137240
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT-5/16-18 HX FLG NL-Y
7542343
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Nut, Lock, Black
7547459
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Bolt, Shoulder
5137011
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Retainer
5253444
|
|||
|
Unavailable |
|||
|
#13
Bolt, Cap
5137010
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
