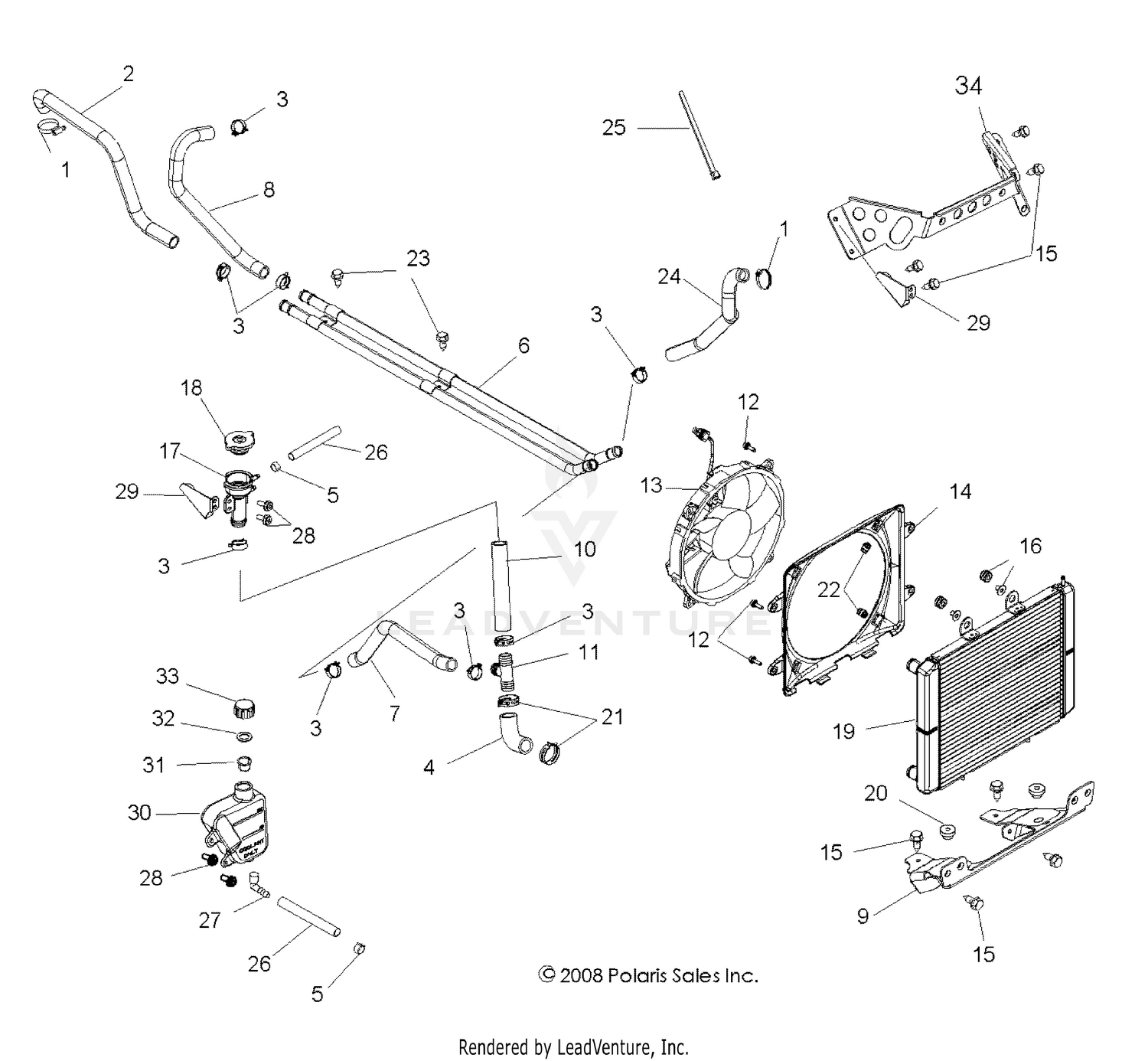

Engine, Cooling System - R10vh76 All Options/vy76az (49rgrcool09rzr) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Clamp, Hose
7081174
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Hose, Engine Outlet, Rear
5413148
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Clamp, Springband, Brown
7080843
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE, RADIATOR, LOWER
5410958
Superseded by 5414202
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP-HOSE, (LARGE GREEN)
7080307
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Asm., Tube, Coolant
1240544
|
|||
|
Unavailable |
|||
|
#7
HOSE, LOWER, FRONT
5413372
Superseded by 5414204
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Hose, Engine Inlet, Rear
5413147
|
|||
|
Unavailable |
|||
|
#9
Bracket, Radiator Mount, Lower
5253550
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE, REMOTE FILL NECK
5413371
Superseded by 5414203
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
T-Connector
7052373
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Screw
7516822
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
KIT-FAN
2204192
Superseded by 2204347
|
$266.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Shroud, Fan
5437845
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Screw
7517386
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
Asm., Grommet and Insert
5411975
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Filler, Remote
5438110
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
Cap, Pressure
1240508
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Asm., Radiator, Core
1240444
|
$444.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BUSHING-MOUNT,LOWER RADIATOR
5410584
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Clamp, Springband, Black
7080844
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP-"U",M6.0X1.0
7547366
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Screw
7515179
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE, RADIATOR, UPPER
5413067
Superseded by 5414201
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Line, Fuel
8450003-1525
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Fitting, 90 Degree
7052065
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Screw
7512084
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
Bracket, Filler Neck
5253450
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
TANK-SURGE
5436936
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
GASKET-OVERFLOW CAP
5810279
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
CAP-OVER FLOW BOTTLE,DRILLED
5430743
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Bracket, Mount, Radiator, Upper, Matte Black
5253683-067
Superseded by 5254710-458
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
