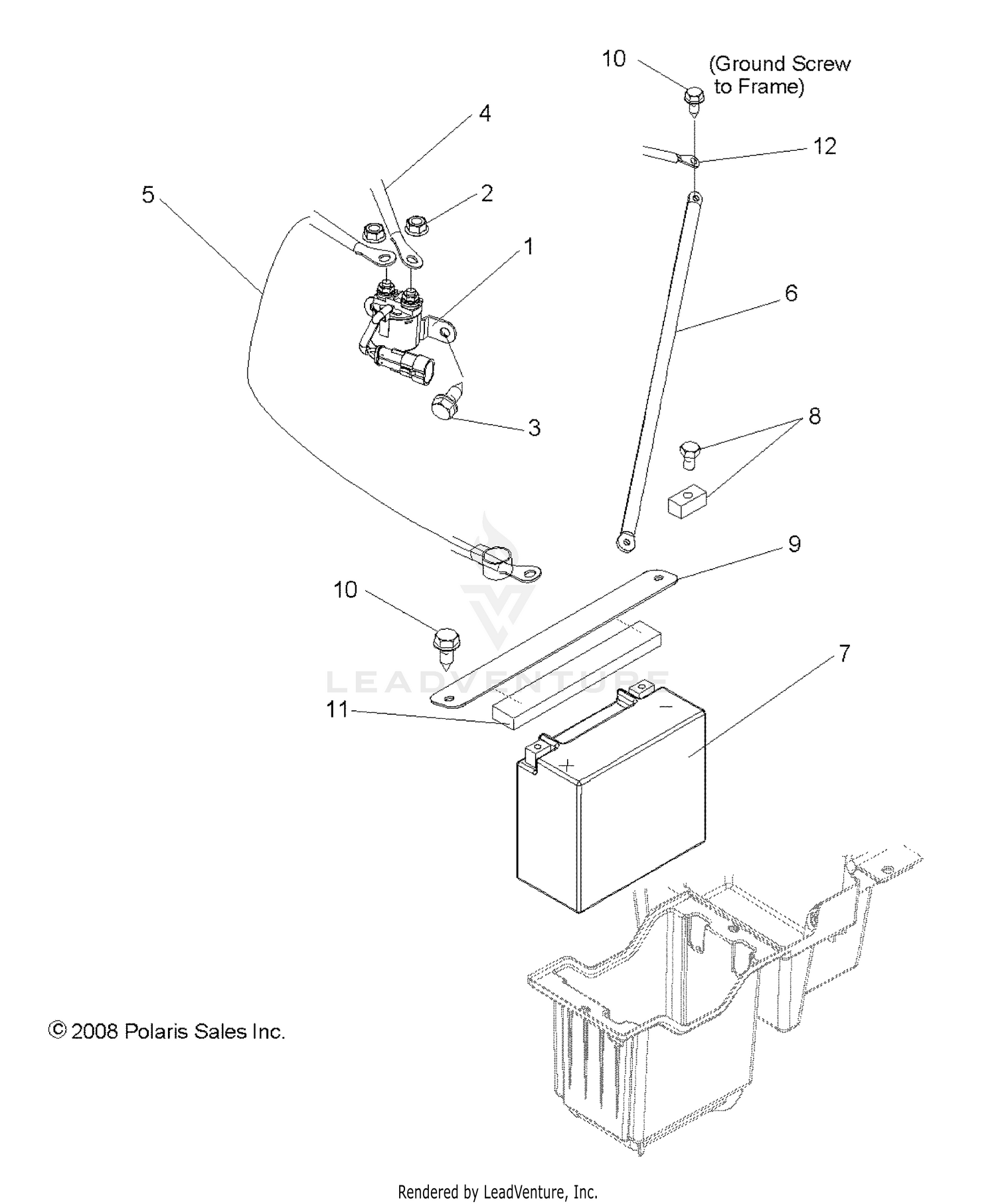

Electrical, Battery - R10vh76 All Options/vy76az (49rgrbattery09rzr) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Solenoid, Starter
4012001
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Nut, Flanged
7547270
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Screw
7517386
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
Cable, Solenoid to Starter
4011498
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CABLE-BATT TO SOLENOID/TERMINA
4011497
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Cable, Chassis, Ground
4011611
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Battery
4011496
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BATTERY-30AH,12 VOLT,AGM
4011224
Superseded by 4014609
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BATTERY BOLT KIT
2201357
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Kit, Battery Bolt
2202848
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Strap, Battery Retainer
5253834
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Bracket, Battery Strap
5248374
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCR-1/4-20X.88,HXWR TAPR,GR5,Y
7517312
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
Foam
5812138
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Cable, Ground
4011499
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
