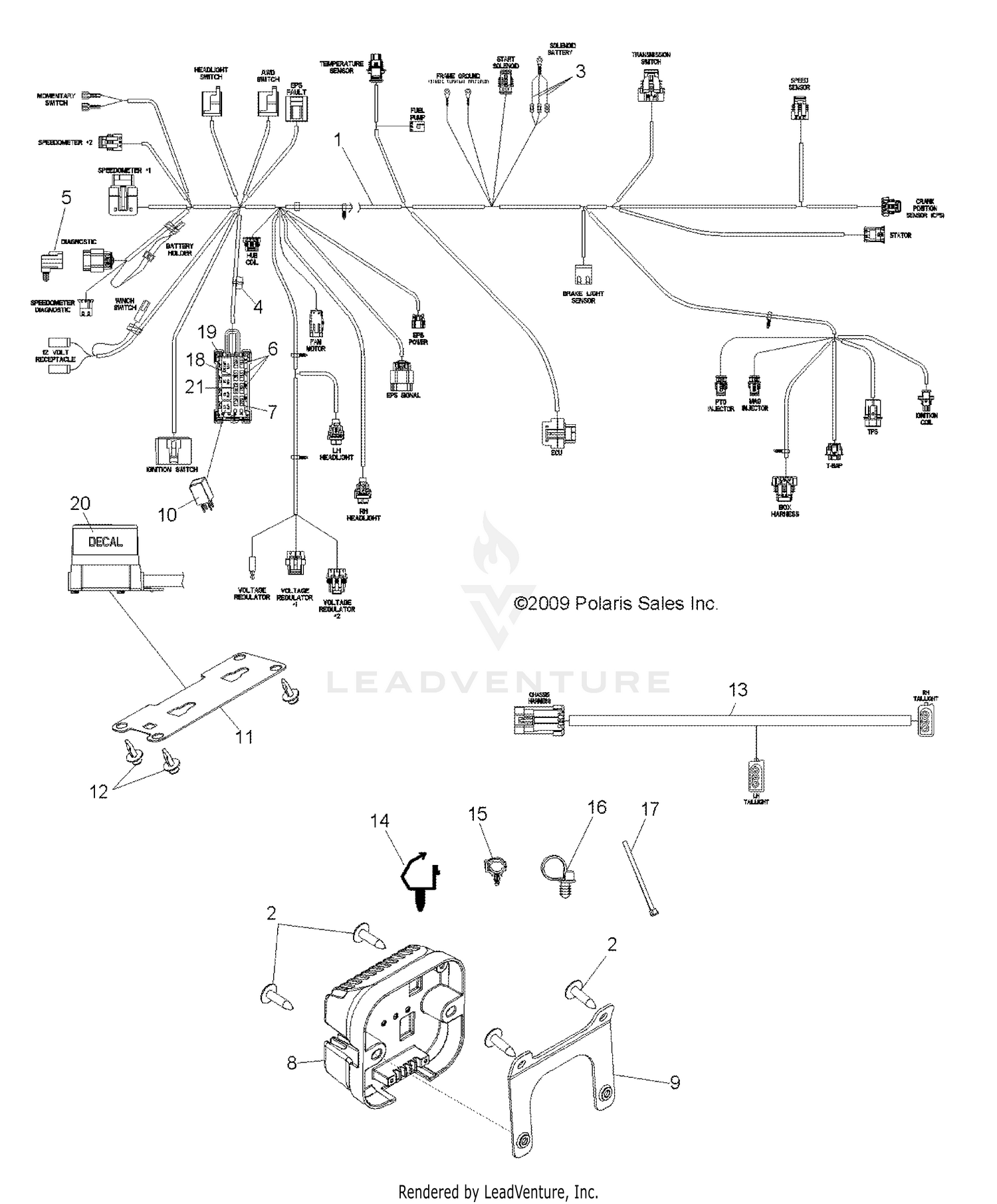

Electrical, Wire Harness, Eps - R10vy76az (49rgrharness10rzreps) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Harness, Chassis, EPS
2411531
|
$619.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
KIT-HARNESS,T-BAP,T-MAP
2875542
Superseded by 2878494
|
$139.99 | ||
|
Unavailable |
|||
|
#1
Kit, Harness, Engine Temp
2878496
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Kit, Harness, TPS
2203801
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Kit, Harness, CPS
2878497
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Screw
7517916
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Kit, Fusible Link, 1 MM
2202670
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BREAKER-CIRCUIT,20 AMP,SEALED
2410881
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Cover, Diagnostic w/Clip
4012170
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FUSE-15AMP,MINI BLADE
4010859
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Fuse, 20 AMP
2434017
Superseded by 4012811
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Regulator
4012748
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Bracket, Regulator Mount
5252587
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RELAY-SPST,12V,20A,EPXY,HFA
4011283
Superseded by 4016819
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Plate, Fuse Mount
5253675
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Rivet
7661855
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
Harness, Box
2411384
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Clip, Routing
7670109
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Clip, Rosebud
4020149
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CABLE-TIE,DIA10-50MM,FIR-TREE
7081334
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
FUSE-MAIN,30 AMP
2434015
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Relay
4011284
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Decal, Fuse/Relay Block
7176705
|
|||
|
Available to order. Add to View Price |
|||
|
#21
Resistor, 120 OHM
4012440
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
