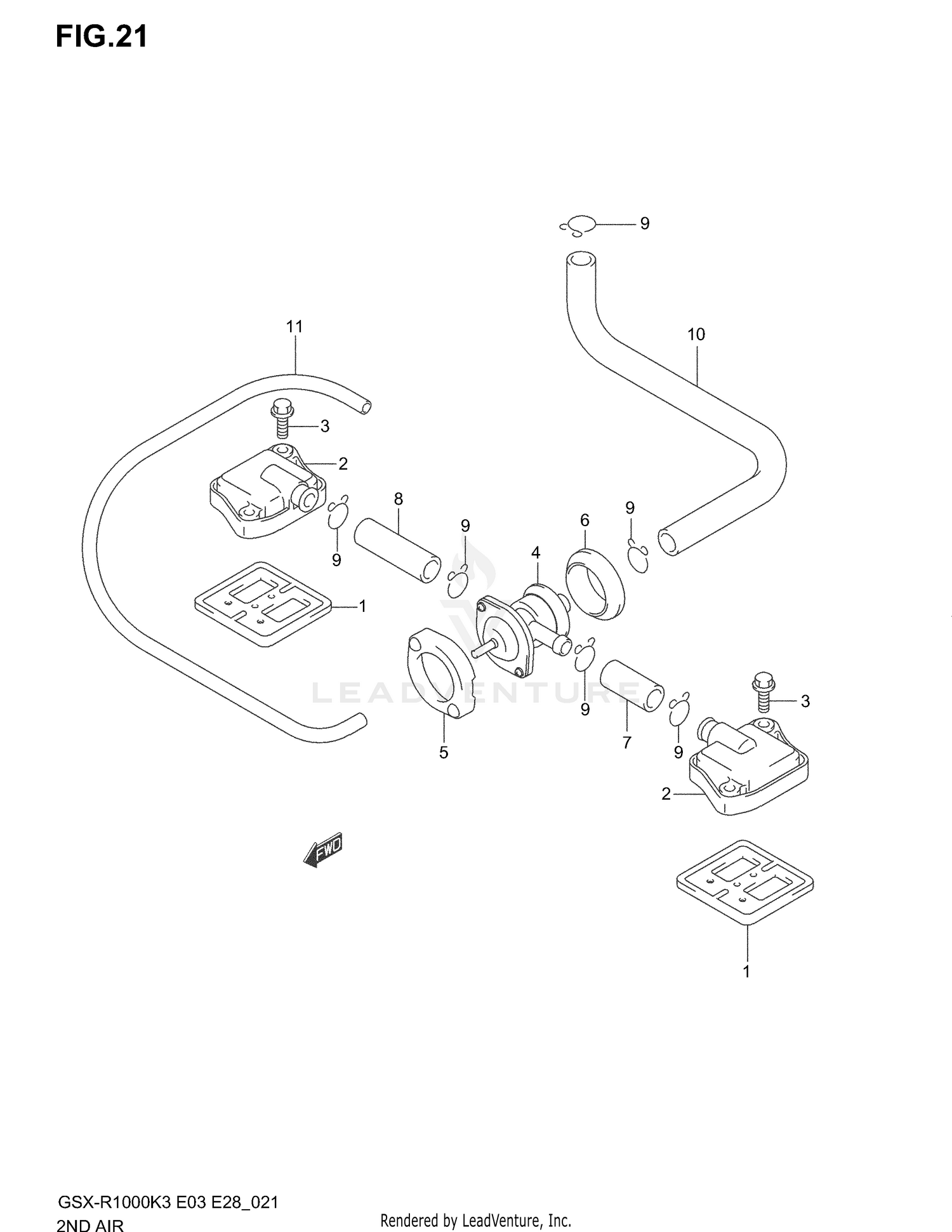

2nd Air Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
VALVE ASSY,2ND AIR REED
18450-35F10
Superseded by 18450-35F11
|
$99.64 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, REED VALVE
18531-35F10
|
$15.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (6X20)
09103-06217
Superseded by 09103-06201
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#4
VALVE ASSY, AIR CUT
18510-35F00
|
$210.55 | ||
|
Unavailable |
|||
|
#5
CUSHION, AIR CUT VALVE UPPER
18516-35F00
|
$4.87 | ||
|
Unavailable |
|||
|
#6
CUSHION, AIR CUT VALVE LOWER
18517-35F00
|
$4.87 | ||
|
Unavailable |
|||
|
#7
HOSE, LH (11X16X600)
09355-11165-600
|
$15.66 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE, RH (11X16X600)
09355-11165-600
|
$15.66 | ||
|
Unavailable |
|||
|
#9
CLIP
09401-15101
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE,2ND AIR CL
18711-35F00
Superseded by 18711-35F01
|
$19.63 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE (3.5X7.5X600)
09355-35755-600
Superseded by 09355-35007-600
|
$8.16 | ||
|
Available to order. Add to View Price |
|||
