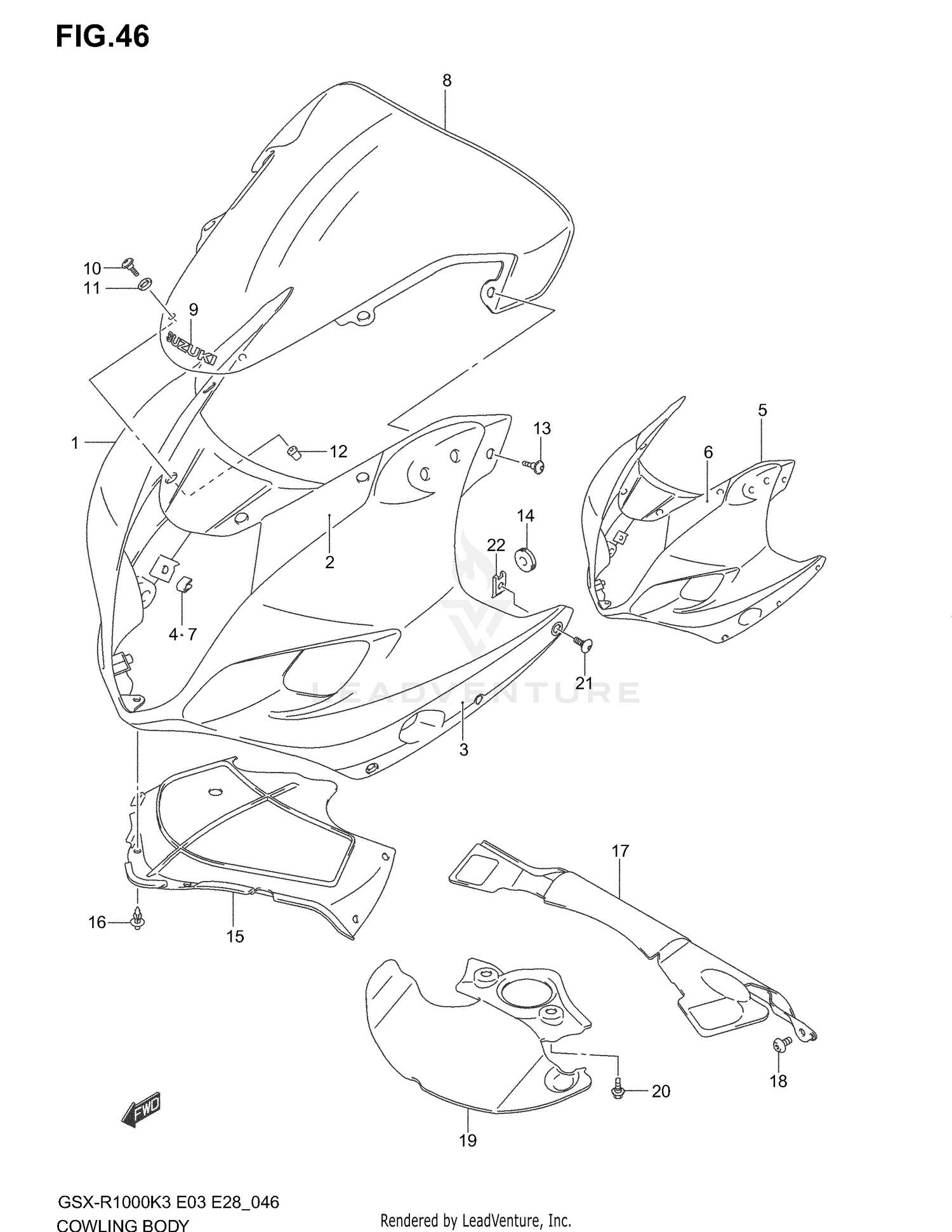

2004 Suzuki GSX-R 1000 COWLING BODY (MODEL K3) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COWLING, BODY (BLUE)
94410-18G00-YBA
|
$858.72 | ||
|
Available to order. Add to View Price |
|||
|
#1
COWLING, BODY (BLACK)
94410-18G00-019
|
|||
|
Unavailable |
|||
|
#2
TAPE SET, FRONT
68280-18G00-LR5
|
$36.94 | ||
|
Available to order. Add to View Price |
|||
|
#2
TAPE SET, FRONT
68280-18G00-CT5
|
$28.00 | ||
|
Unavailable |
|||
|
#3
TAPE SET, SIDE
68280-18G10-LS3
|
$65.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
TAPE SET, SIDE
68280-18G10-LR8
|
$53.07 | ||
|
Unavailable |
|||
|
#4
CUSHION,FR LEG
94425-14G00
Superseded by 94425-14G01
|
$4.88 | ||
|
Unavailable |
|||
|
#5
COWLING, BODY (SILVER)
94410-18G10-YD8
|
$533.28 | ||
|
Available to order. Add to View Price |
|||
|
#6
TAPE SET, FRONT
68280-18G00-FP2
|
$33.37 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION,FR LEG
94425-14G00
Superseded by 94425-14G01
|
$4.88 | ||
|
Unavailable |
|||
|
#8
WINDSCREEN
94610-18G00-CT5
|
$210.22 | ||
|
Unavailable |
|||
|
#9
TAPE
68275-18G00-CT5
|
$56.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
09139-05025
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, FRONT
08322-01053
Superseded by 08322-0105A
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
09159-05019
|
$7.63 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, REAR
09139-05055
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION (8X26X7)
09320-08028
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, BODY COWL
94419-18G00
|
$40.59 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP, LID (BLACK)
09409-06314-5PK
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, COWL FRONT LOWER
94457-18G00
|
$42.66 | ||
|
Unavailable |
|||
|
#18
BOLT LOWER COVER
09139-05074
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, BRACKET
94458-18G00
|
$26.77 | ||
|
Unavailable |
|||
|
#20
BOLT (6X12)
63161-43E00
Superseded by 09111-06107
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, SIDE
09139-05064
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT,COWL
94484-24F00
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
