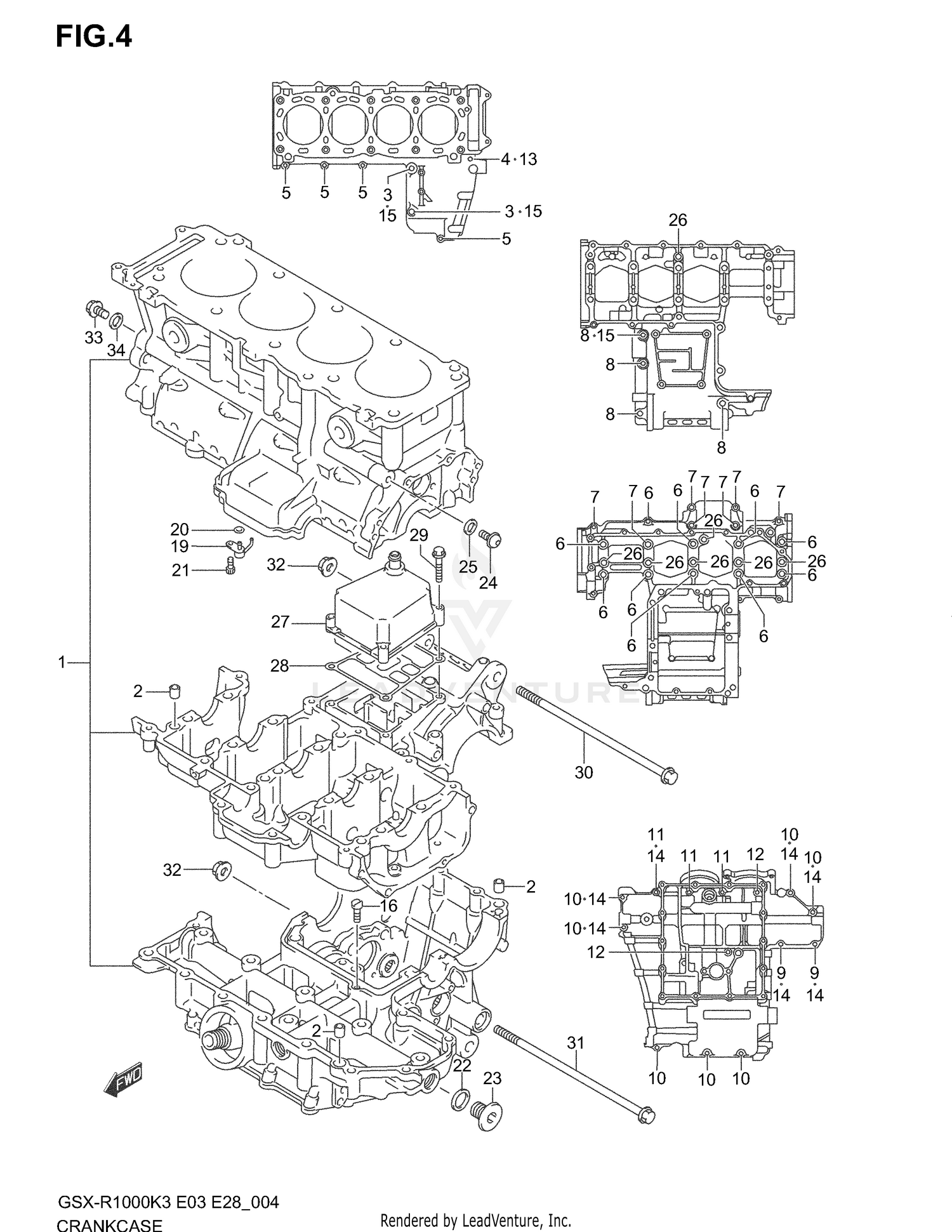

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11302-40820
|
$4,659.23 | ||
|
Available to order. Add to View Price |
|||
|
#2
.PIN,CRANKCASE
11319-33E50
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (8X120)
09106-08139
|
$13.46 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET (5.8X13X1.2)
09168-06023
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01547-06403
Superseded by 01547-0640B
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (9X95)
09103-09012
|
$10.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (8X55)
09103-08170
Superseded by 09103-08339
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
07120-08653
Superseded by 07120-0865B
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FINAL GEAR CASE
01547-06303
Superseded by 01547-0630B
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01547-06403
Superseded by 01547-0640B
|
$3.19 | ||
|
Unavailable |
|||
|
#11
BOLT
01547-06603
Superseded by 01547-0660B
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01547-06703
Superseded by 01547-0670B
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01547-06803
Superseded by 01547-0680B
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET (5.8X13X1.2)
09168-06023
|
$2.37 | ||
|
Unavailable |
|||
|
#15
.GASKET (8.2X14X1)
09168-08016
|
$1.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
JET
09493-28012
|
$16.87 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING, THRUST RH (GREEN)
12228-48B00-0E0
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, THRUST LH (BROWN)
12228-48B00-0B0
|
$11.57 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, THRUST LH (RED)
12228-48B00-0C0
|
$11.36 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, THRUST LH (YELLOW)
12228-48B00-0D0
|
$11.79 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, THRUST LH (GREEN)
12228-48B00-0E0
|
$10.99 | ||
|
Unavailable |
|||
|
#18
BEARING, THRUST LH (BLUE)
12228-48B00-0F0
|
$11.79 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, THRUST LH (ORANGE)
12228-48B00-0G0
|
$11.79 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, THRUST LH (BLACK)
12228-48B00-0H0
|
$11.36 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET,PISTON COOLING
11390-35F00
|
$28.59 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING (D:1.2,ID:4)
09280-04004
|
$1.93 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, PISTON COOLING
09106-06075
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET
09168-16002
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLUG, OIL GALLERY
09248-16013
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLUG (10X10)
09248-10010
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET (10X14X3.6)
09168-10002
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
O RING (D:1.9,ID:7.8)
09280-08012
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, BREATHER
11370-35F00
|
$78.11 | ||
|
Unavailable |
|||
|
#28
.GASKET, BREATHER COVER
11484-35F00
|
$5.81 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FINAL GEAR CASE
01547-06303
Superseded by 01547-0630B
|
$3.17 | ||
|
Unavailable |
|||
|
#30
BOLT (10X215)
09103-10041
Superseded by 09103-10041-A05
|
$12.23 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT (10X215)
09103-10041
Superseded by 09103-10041-A05
|
$12.23 | ||
|
Unavailable |
|||
|
#32
NUT, REAR SWGARM BRACKET
09159-10058
Superseded by 09159-10115
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT
01550-08123
Superseded by 01550-0812A
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#34
.GASKET (8.2X14X1)
09168-08016
|
$1.93 | ||
|
Unavailable |
|||
