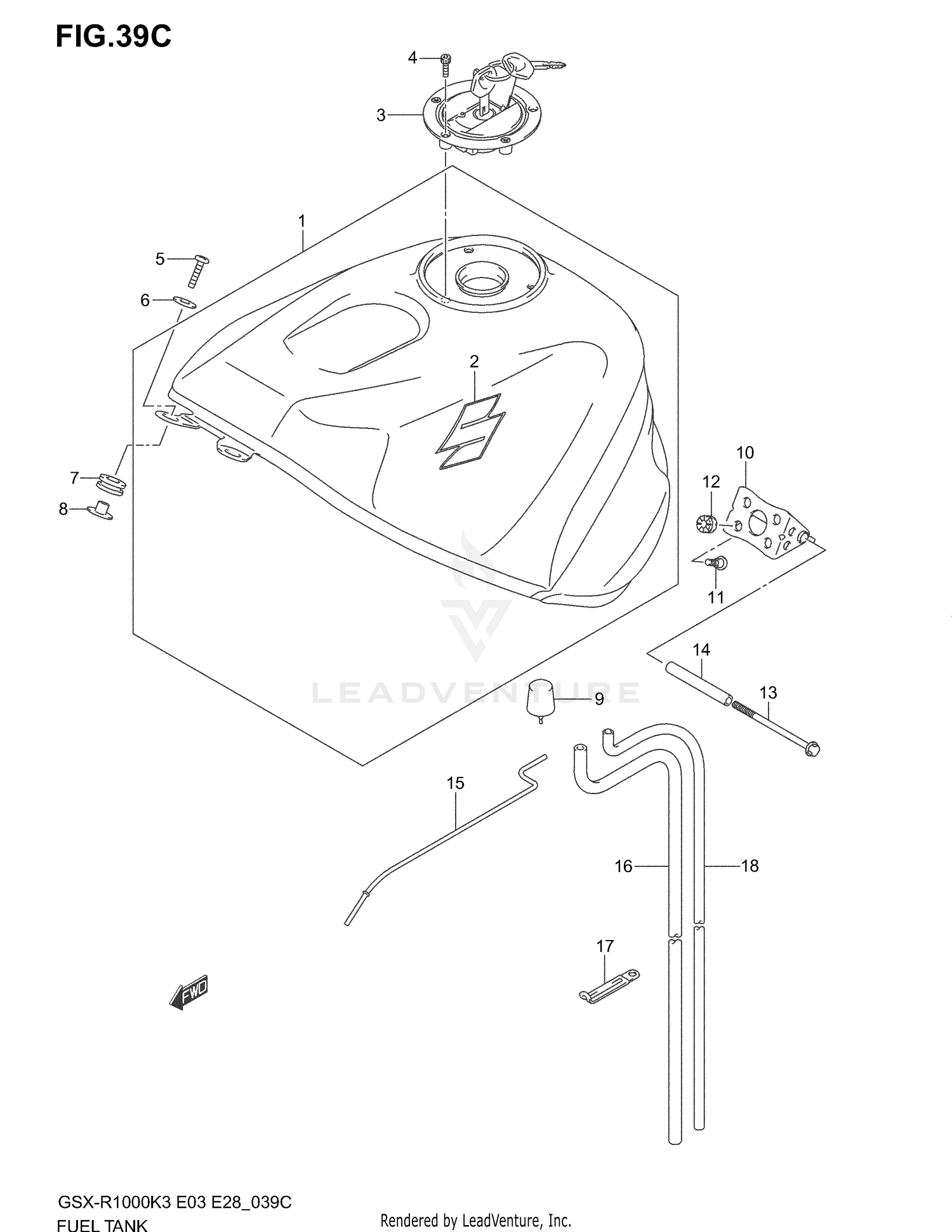

Fuel Tank (gsx-r1000zk4 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY, FUEL (BLACK)
44100-18GB0-019
|
|||
|
Unavailable |
|||
|
#2
EMBLEM
68111-18G10
Superseded by 68111-18G20
|
$38.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP SET,FUEL TA
44200-16850
Superseded by 44200-16852
|
$139.07 | ||
|
Unavailable |
|||
|
#4
BOLT
09106-05017
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FRONT
09139-06029
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
09160-06054
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION,FUEL TA
44511-19F00
Superseded by 44511-19F01
|
$6.68 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER, FRONT
44512-19F00
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION, SIDE NO.2
44542-18G00
|
$10.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, REAR NO.1
44530-18G00
|
$30.91 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW (6X22)
09139-06132
Superseded by 09139-06191
|
$4.74 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION
09320-08071
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, JOINT
09106-06103
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER
44561-18G00
|
$19.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
STAY, FUEL TANK
44574-35F00
|
$17.84 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE,WATER DRAI
44423-16G01
Superseded by 44423-16G02
|
$15.78 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
09404-06431
Superseded by 09404-06039
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE,FUEL TANK
44424-18G00
Superseded by 44424-18G01
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
