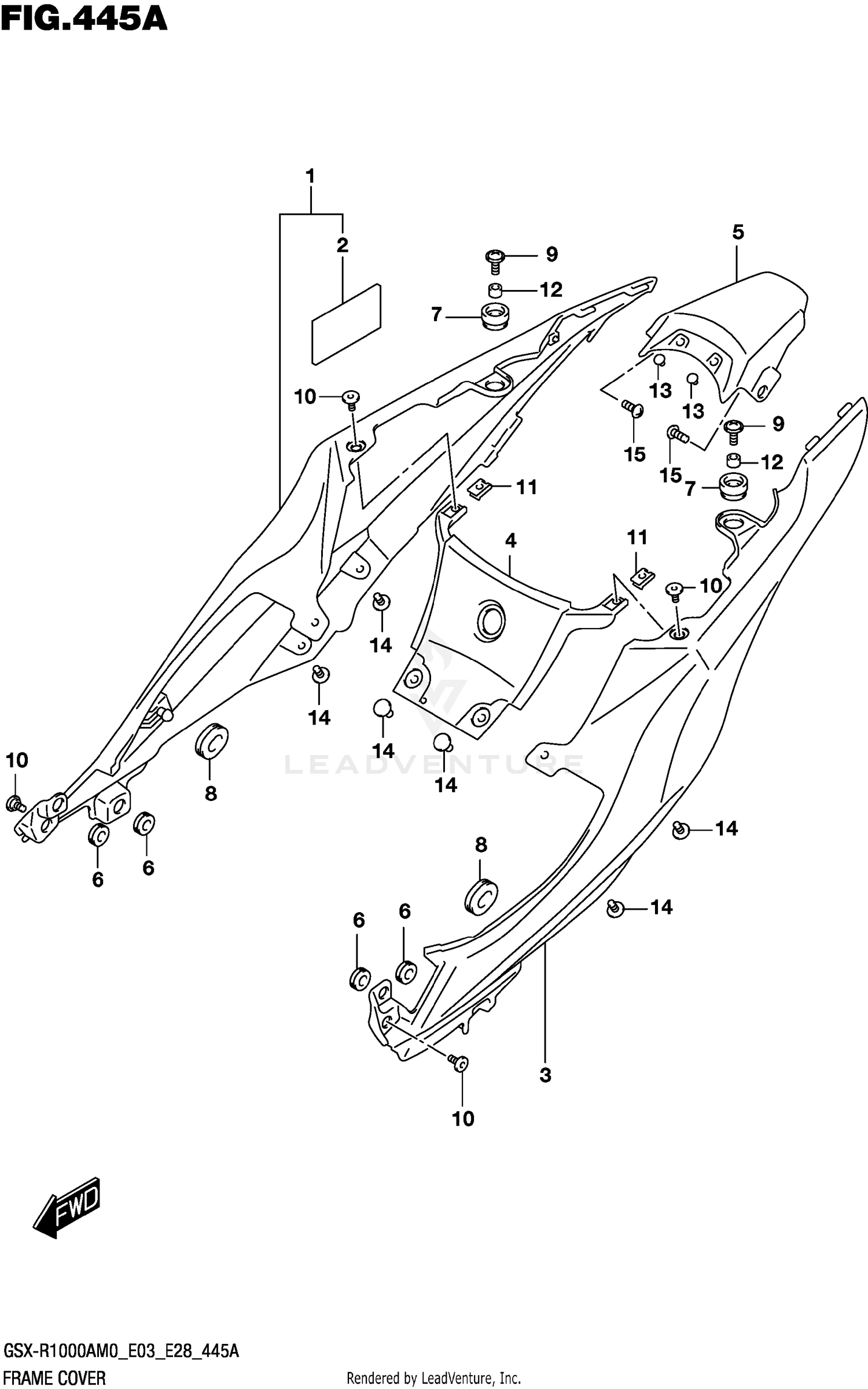

Frame Cover (gsx-r1000a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1-1
COVER,FRAME,RH (WHITE)
47110-17K60-YWW
|
$146.56 | ||
|
Available to order. Add to View Price |
|||
|
#1-2
COVER,FRAME,R (BLACK)
47110-17K60-YKV
|
$146.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
CUSHION (45X100X3)
33652-17K10
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#3-1
COVER,FRAME,LH (WHITE)
47211-17K00-YWW
|
$154.66 | ||
|
Available to order. Add to View Price |
|||
|
#3-2
COVER,FRAME,L (BLACK)
47211-17K00-YKV
|
$154.66 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER,FRAME CENTER FRONT
47311-17K00
|
$30.67 | ||
|
Available to order. Add to View Price |
|||
|
#5-1
COVER,FRAME CENTER REAR (WHIT
47411-17K00-YWW
|
$67.75 | ||
|
Available to order. Add to View Price |
|||
|
#5-2
COVER,FRAME CTR RR (BLACK)
47411-17K00-YKV
|
$70.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION,FUEL TANK COVER SIDE
44173-14J00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION (10X24X13)
47312-37H00
Superseded by 47312-37H10
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION
94478-14J00
|
$6.96 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW (6X16)
09139-06139
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW (5X13)
09139-05092
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT (M5)
09148-05052
|
$3.96 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER (6.5X10X7)
09180-06283
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUG (OD:10)
09250-06012
Superseded by 09250-06017
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP
09409-06328
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
03541-0516A
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
