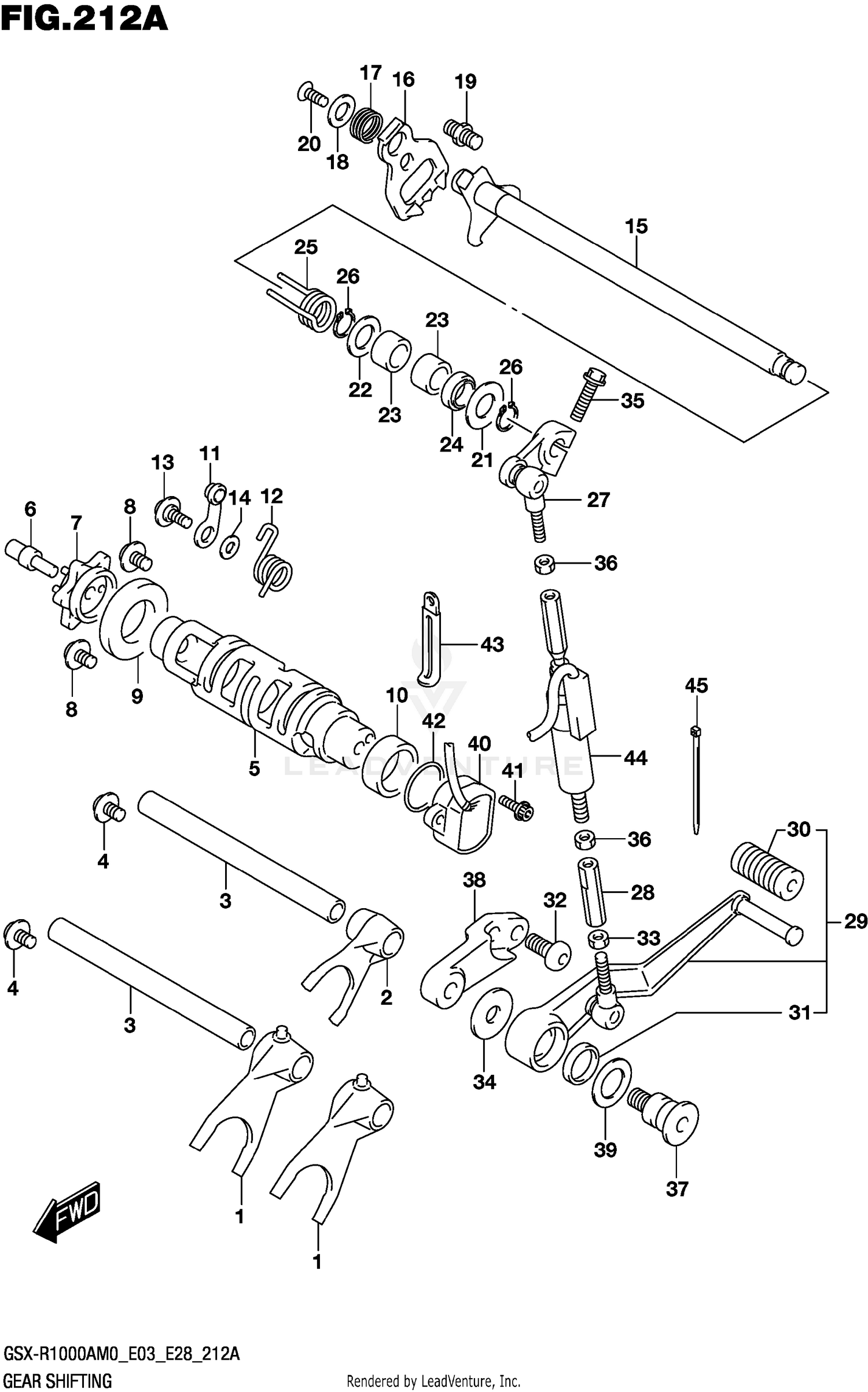

Gear Shifting Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK,GEAR SHIFT NO.1
25211-01H11
|
$80.17 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK,GEAR SHIFT NO.3
25231-01H02
|
$78.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT,GEAR SHIFT FORK (L:152)
25411-38B01
|
$28.94 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW (6X12)
09136-06147
|
$3.21 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAM,GEAR SHIFT
25310-17K00
|
$195.68 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT,GEAR SHIFT CAM PLATE
25312-17K00
|
$23.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE,GEAR SHIFT CAM
25381-17K00
|
$43.74 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW (6X12)
09136-06147
|
$3.21 | ||
|
Unavailable |
|||
|
#9
BEARING (25X47X8)
09262-25006
|
$30.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING (25X32X12)
09263-25018
|
$25.17 | ||
|
Available to order. Add to View Price |
|||
|
#11
STOPPER,SHIFT CAM
25350-06G00
Superseded by 25350-06G10
|
$18.04 | ||
|
Unavailable |
|||
|
#12
SPRING,GEAR SHIFT CAM STOPPER
25355-17K00
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (6X14.3)
09111-06041
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
08211-06141
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHAFT,GEAR SHIFT
25510-17K00
|
$86.89 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE,GEAR SHIFT CAM DRIVE
25512-06G20
|
$28.67 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING,GEAR SHIFT PLATE RETUR
25518-01H00
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER,GEAR SHIFT SHAFT END
25519-01H00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
STOPPER,GEAR SHIFT ARM
25671-01011
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW (6X16)
09126-06014
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER (14X29X0.8)
09160-14016
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM (14X24X1)
09181-14195
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING (14X20X12)
09263-14027
|
$15.91 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAL, SHIFT SHAFT (14X22X6)
09283-14005
Superseded by 09283-14006
|
$7.88 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING
09444-20001
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#26
CIRCLIP
08331-3114A
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#27
ARM,GEAR SHIFT LINK
25520-17K10
|
$67.22 | ||
|
Available to order. Add to View Price |
|||
|
#28
ROD,GEAR SHIFT LINK
25525-17K10
|
$29.10 | ||
|
Available to order. Add to View Price |
|||
|
#29
LEVER ASSY,GEAR SHIFT
25600-17K00
|
$120.26 | ||
|
Available to order. Add to View Price |
|||
|
#30
.RUBBER,GEAR SHIFT PEDAL
25652-20C00
|
$6.40 | ||
|
Available to order. Add to View Price |
|||
|
#31
.SEAL (18X24X3.5)
09284-18005
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT (8X20)
09106-08167
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT
09140-06025
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#34
.WASHER (10X30X2.5)
09160-10144
|
$5.30 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT
07120-0625B
|
$3.61 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT
09140-06020
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#37
SHAFT,GEAR SHIFT LEVER
25617-17K00
|
$22.21 | ||
|
Available to order. Add to View Price |
|||
|
#38
BRACKET,GEAR SHIFT LEVER
25681-17K00
|
$66.80 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER,GEAR SHIFT LEVER LH
25619-17K00
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#40
SENSOR ASSY,GEAR POSITION
37730-17K00
|
$179.88 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT (5X16)
09106-05023
|
$3.21 | ||
|
Available to order. Add to View Price |
|||
|
#42
O-RING (D:2.4,ID:26.2)
09280-26005
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLAMP (L:45)
09404-06429
|
$2.13 | ||
|
Unavailable |
|||
|
#44
SENSOR & ROD SE
25501-17810
Superseded by 25501-17811
|
$535.87 | ||
|
Available to order. Add to View Price |
|||
|
#45
CLAMP (L:145)
09407-14407
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
