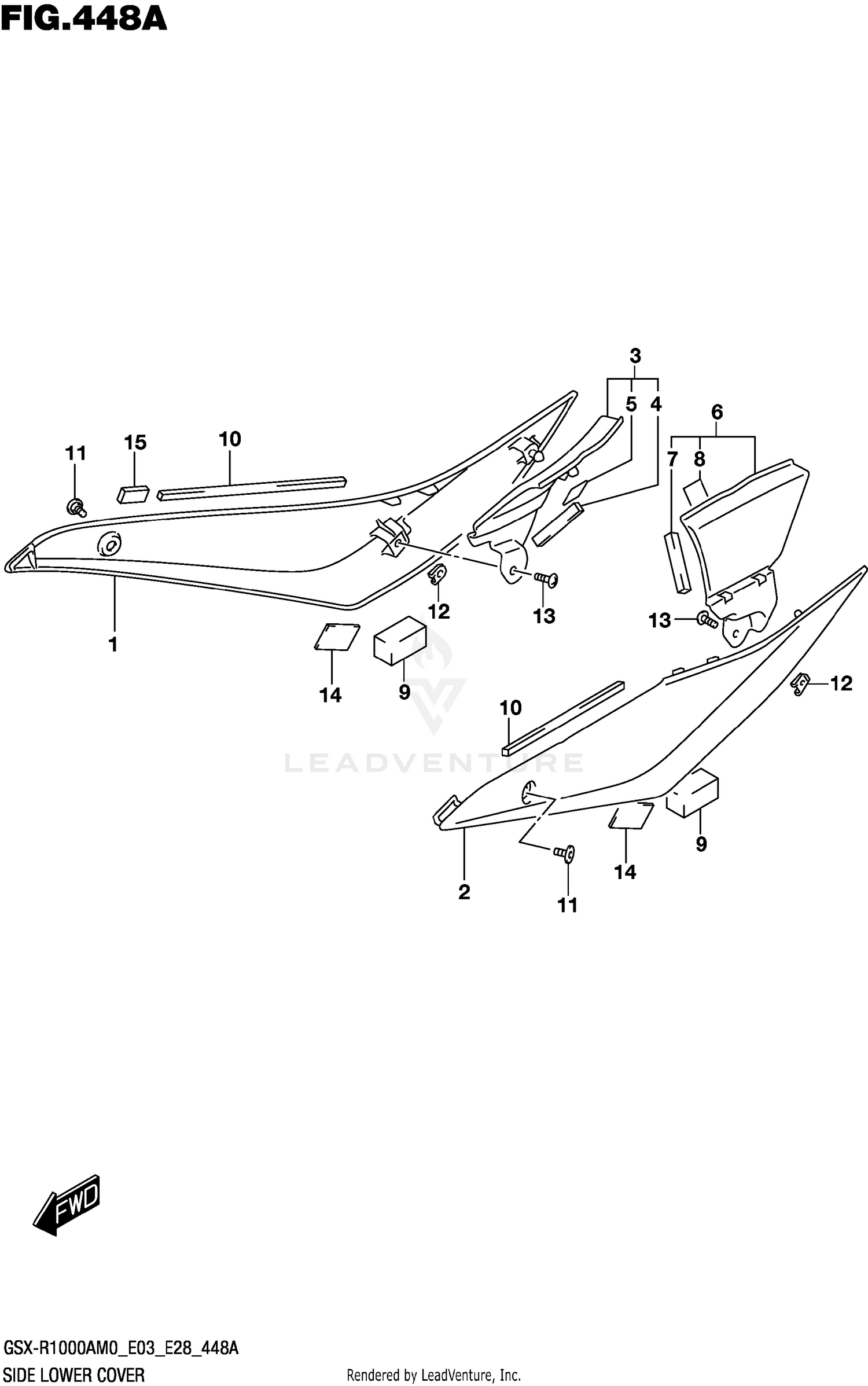

Side Lower Cover (gsx-r1000a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,FRAME FRONT,R
47511-17K01
|
$40.77 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER,FRAME FRONT,L
47611-17K01
|
$40.56 | ||
|
Available to order. Add to View Price |
|||
|
#3-1
COVER,FRAME FRONT NO.2,RH (WH
47710-17K00-YWW
|
$82.05 | ||
|
Available to order. Add to View Price |
|||
|
#3-2
COVER,FRAME FR NO.2,R (BLACK)
47710-17K00-YVB
|
$82.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION, FRAME COVER NO.2
47122-17K00
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
.CUSHION (20X20X1)
47123-17K00
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#6-1
COVER,FRAME FRONT NO.2,LH (WH
47810-17K00-YWW
|
$82.05 | ||
|
Available to order. Add to View Price |
|||
|
#6-2
COVER,FRAME FR NO.2,L (BLACK)
47810-17K00-YVB
|
$82.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION, FRAME COVER NO.2
47122-17K00
|
$2.16 | ||
|
Unavailable |
|||
|
#8
.CUSHION (20X20X1)
47123-17K00
|
$5.11 | ||
|
Unavailable |
|||
|
#9
CUSHION,RR COMB (20X40X20)
33652-38F20
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
..CUSHION,FRAME COVER UPPER (
47121-17K00
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW (5X13)
09139-05092
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT (M5)
09148-05045
|
$2.63 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
03541-0516A
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
FASTENER (33X25X2.6)
44572-13G00
|
$13.02 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION, LICENSE PLATE
33652-47F00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
