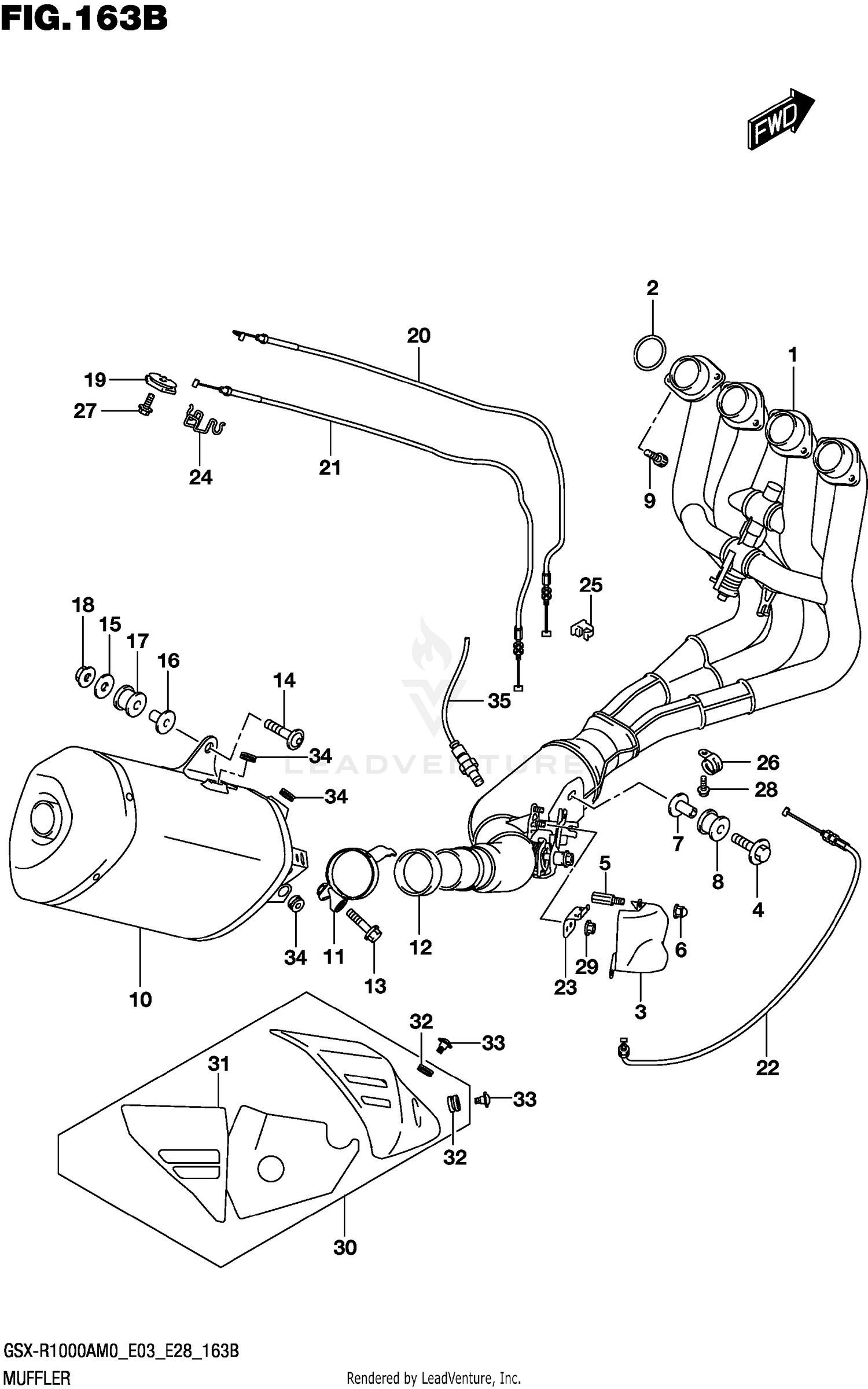

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST
14100-17K01
Superseded by 14100-17K02
|
$1,435.06 | ||
|
Unavailable |
|||
|
#2
.GASKET,EXHAUST PIPE
14181-04K00
|
$9.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER,EXH VALVE
14280-17K00
|
$32.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (8X45)
09118-08152-A05
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
09119-06105
|
$6.00 | ||
|
Unavailable |
|||
|
#6
NUT (M6)
09159-06100
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER (8.6X12X24.2)
09180-08152
|
$6.86 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION (12X30X24)
09320-12077
|
$13.86 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
07130-0825A
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#10
BODY,MUFFLER
14310-17KE0-H01
|
$2,277.54 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP,MUF CONN
14459-17K10
|
$28.94 | ||
|
Unavailable |
|||
|
#12
CONNECTOR,MUFFLER
14771-24F01
|
$31.06 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (8X40)
09106-08162
|
$4.77 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT (8X45)
09106-08195
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (8.5X28X1.6)
09160-08157
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER (8.6X12X24.2)
09180-08152
|
$6.86 | ||
|
Unavailable |
|||
|
#17
CUSHION (12X30X24)
09320-12048
|
$6.01 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
08361-2508B
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PULLEY,CONTROLLER
11269-18G01
|
$28.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
CABLE,EXH VALVE NO.1
11276-17K00
|
$48.23 | ||
|
Available to order. Add to View Price |
|||
|
#21
CABLE,EXH VALVE NO.2
11277-17K00
|
$56.66 | ||
|
Available to order. Add to View Price |
|||
|
#22
CABLE,EXH VALVE NO.3
11278-17K00
Superseded by 11278-17K02
|
$35.81 | ||
|
Unavailable |
|||
|
#23
BRACKET,EXHAUST VALVE CABLE
14250-21H00
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#24
GUIDE,EXHAUST VALVE CABLE
14252-14J00
|
$7.37 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP
09403-06414
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP (L:45)
09404-06429
|
$2.13 | ||
|
Unavailable |
|||
|
#27
BOLT
01547-0516A
|
$1.56 | ||
|
Unavailable |
|||
|
#28
BOLT
01547-0612A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT (6X12)
08316-1006A
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER,MUFFLER
14780-17K20
|
$259.28 | ||
|
Available to order. Add to View Price |
|||
|
#31
.SHIELD,MUF COVER HEAT
14784-17K00
|
$11.03 | ||
|
Unavailable |
|||
|
#32
CUSHION (8.4X18X6)
09320-08066
|
$9.70 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW (6X12)
09139-06124
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#34
CUSHION (8.4X18X6)
09320-08066
|
$9.70 | ||
|
Unavailable |
|||
|
#35
SENSOR,OXYGEN
18213-17K00
|
$297.74 | ||
|
Available to order. Add to View Price |
|||
