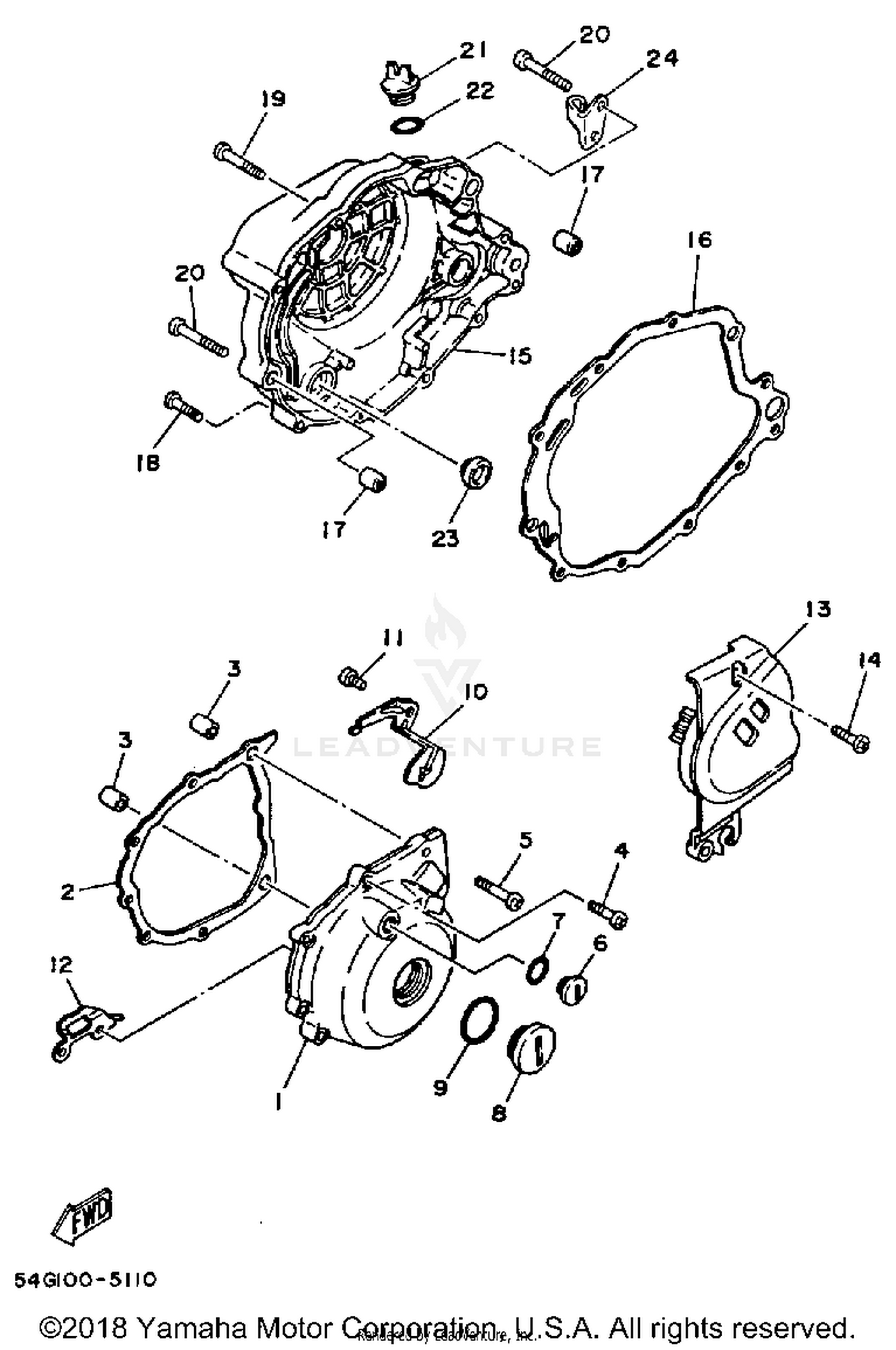

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE L
15A-15411-00-00
|
$167.99 | ||
|
Unavailable |
|||
|
#2
GASKET, CRANKCASE
15A-15451-01-00
Superseded by 15A-15451-02-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98506-06035-00
Superseded by 98507-06035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG, STRAIGHT SCREW
90340-14079-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-14369-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG, STRAIGHT SCREW
90340-32080-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-32172-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
90465-08188-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD (92503-06010-00
98580-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP
90462-16096-00
|
$6.49 | ||
|
Unavailable |
|||
|
#13
CRCS COVER ASSEMBLY RASSEMBLY 2
15A-15420-01-00
|
$45.99 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Unavailable |
|||
|
#15
COVER, CRANKCASE 3
47J-15431-01-00
|
$274.99 | ||
|
Unavailable |
|||
|
#16
GASKET, CRANKCASE COVER 3
4BE-15462-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Unavailable |
|||
|
#19
SCREW, PAN HEAD
98506-06035-00
Superseded by 98507-06035-00
|
$7.49 | ||
|
Unavailable |
|||
|
#20
SCREW, PAN HEAD
98506-06045-00
Superseded by 98507-06045-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG, OIL
1RG-15363-00-00
Superseded by 3Y1-15363-10-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING
93210-19123-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
GAUGE, LEVEL
3Y1-15361-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOLDER
54G-15378-00-00
|
$15.49 | ||
|
Unavailable |
|||
