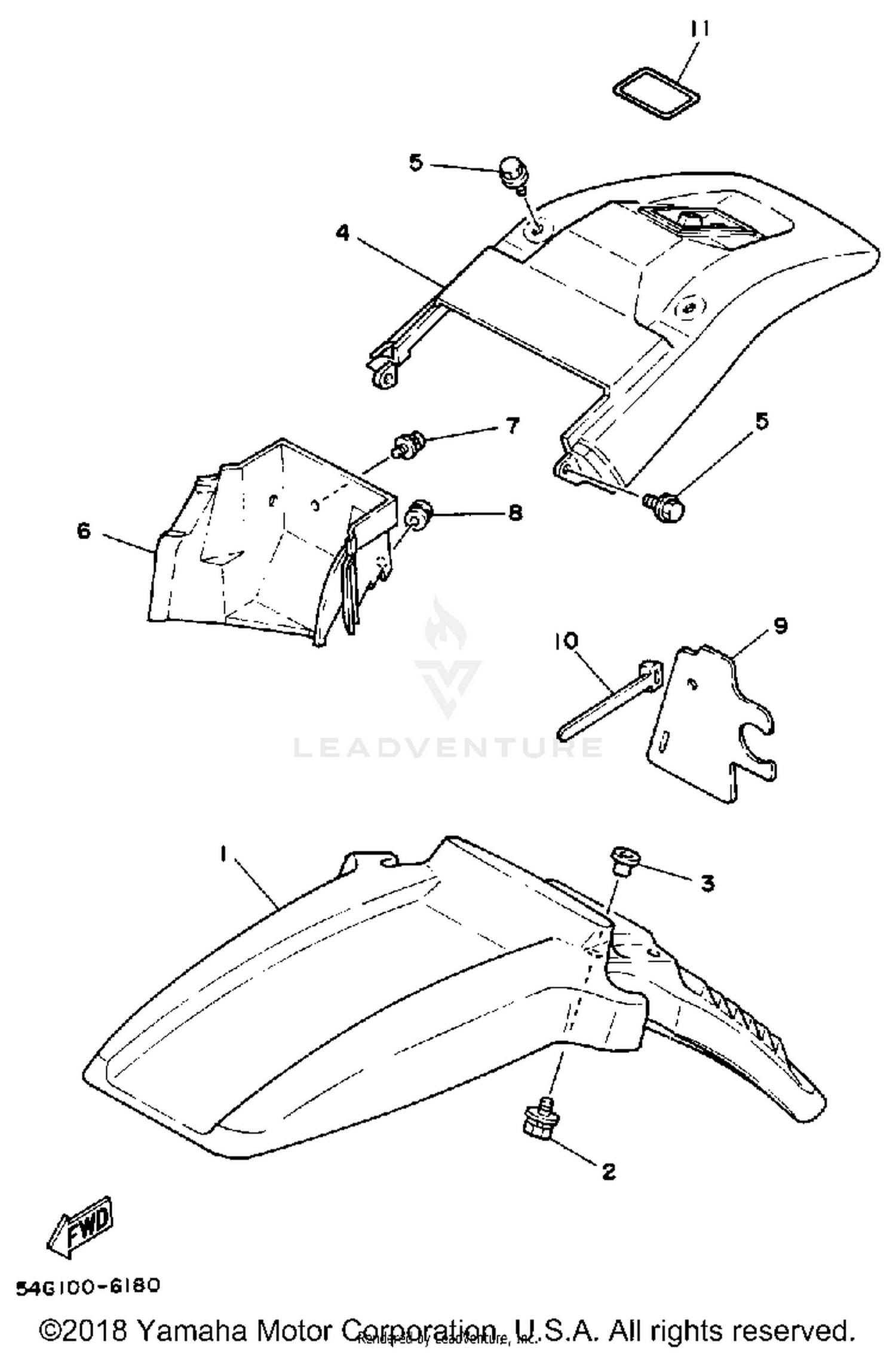

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
54G-21511-10-00
|
$200.99 | ||
|
Unavailable |
|||
|
#2
BOLT, WITH WASHER
90119-06063-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER
90209-06187-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
REAR FENDER
54G-21610-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#5
BOLT, WITH WASHER
90119-06043-00
Superseded by 90119-06242-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
MUD GUARD COMP.
54G-21620-00-00
|
$53.34 | ||
|
Unavailable |
|||
|
#7
SCREW, WITH WASHER
90159-06084-00
Superseded by 90159-06082-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GROMMET
90480-12053-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
FLAP
54G-21621-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#10
BAND, SWITCH CORD
437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
LABEL, SAFETY
54G-21659-00-00
|
$2.77 | ||
|
Unavailable |
|||
