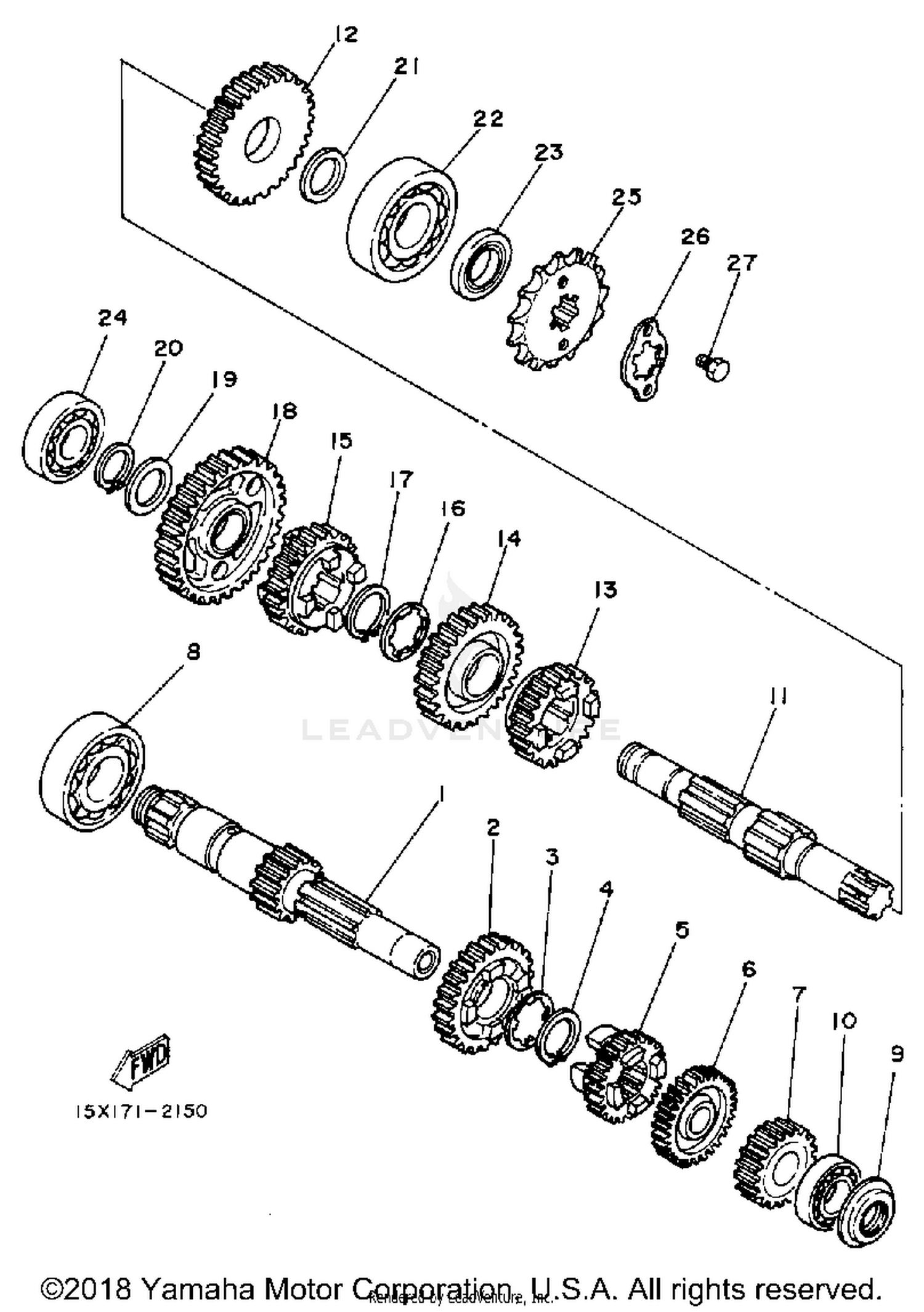

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN (12T)
15A-17411-01-00
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, 5TH PINION (28T)
15A-17151-00-00
Superseded by 15A-17151-01-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER
90209-16209-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP, S-TYPE
93410-20038-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 2ND PINION (22T)
5H0-17121-01-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 4TH PINION (25T)
15A-17141-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, 2ND PINION (19T)
15A-17121-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING (B6204)
93306-20421-00
Superseded by 93306-20461-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL
93101-15101-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-20211-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DRIVE AXLE ASSEMBLY
15A-17402-01-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, 2ND WHEEL (34T)
15A-17221-00-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, 4TH WHEEL (26T)
15A-17241-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, 3RD WHEEL (29T)
15A-17231-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, 6TH WHEEL (23T)
1EV-17251-00-00
Superseded by 5MP-17261-00-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
90209-18208-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
93410-22039-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, 1ST WHEEL (34T)
15A-17211-01-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-17257-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP
99009-17400-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-203E7-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING (B6304A3)
93306-30424-00
Superseded by 93306-30443-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL
93102-20242-00
Superseded by 93102-20004-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93306-20332-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPROCKET DRIVE (54G1746120)
93852-12018-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOLDER, SPROCKET
5H0-17456-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
