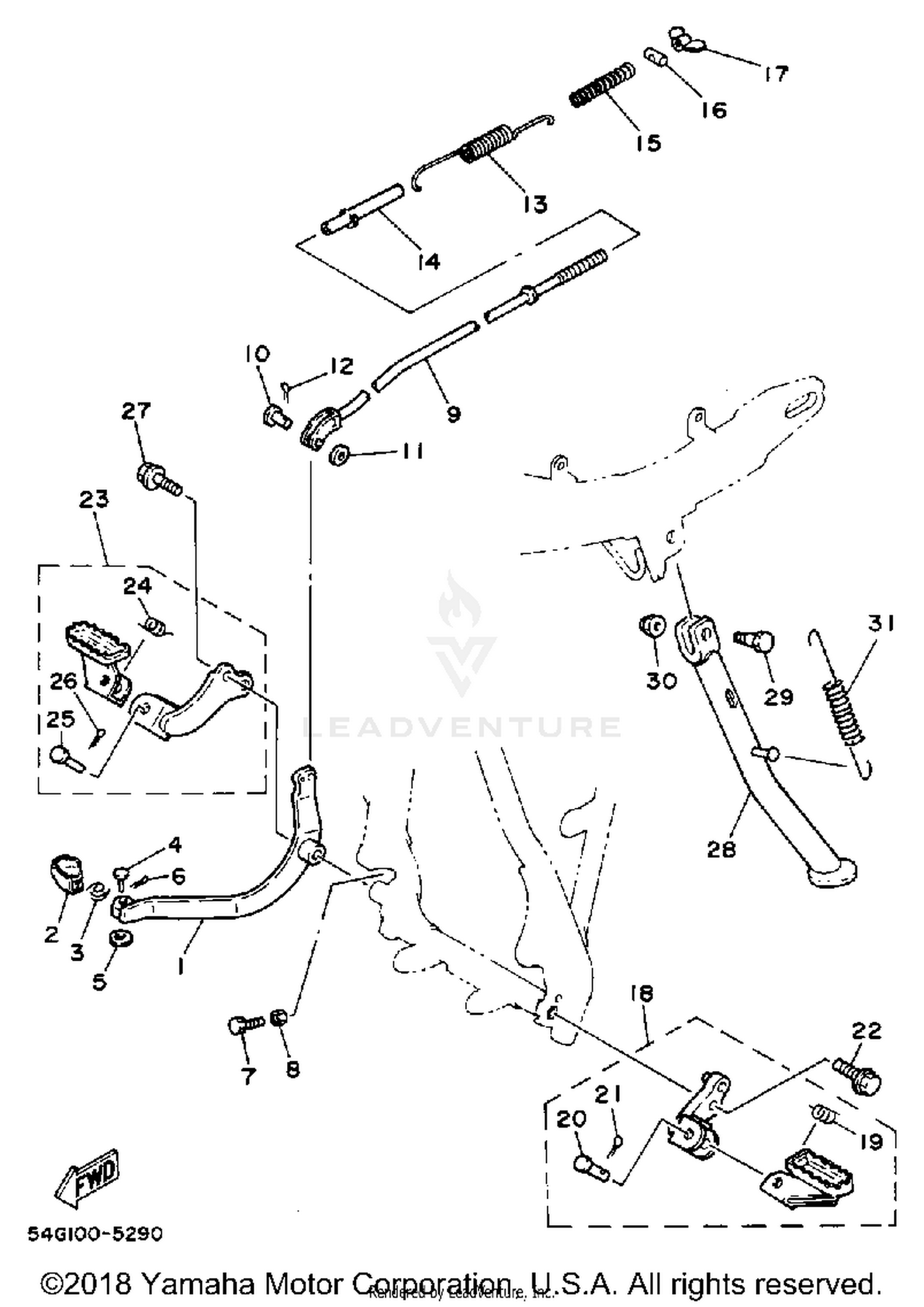

Stand - Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
23J-27211-00-90
|
$42.99 | ||
|
Unavailable |
|||
|
#2
PEDAL, BRAKE
55V-27242-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, TORSION
90508-14352-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, CLEVIS
91701-06022-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
ROD, BRAKE
54G-27231-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#10
PIN, CLEVIS
90240-06103-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Unavailable |
|||
|
#13
SPRING, TENSION
90506-18289-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER
1M1-27244-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, SPECIAL SHAPE
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SPECIAL SHAPE
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
FRT FOOTREST ASSEMBLY LASSEMBLY
15A-27410-00-90
|
$58.99 | ||
|
Unavailable |
|||
|
#19
SPRING, TORSION
90508-20023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, CLEVIS
91701-08038-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95811-12025-00
Superseded by 95817-12025-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
FRONT FOOTREST ASSY (RIGHT)
15A-27420-01-90
Superseded by 15A-27420-02-90
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING, TORSION
90508-20023-00
|
$7.49 | ||
|
Unavailable |
|||
|
#25
PIN, CLEVIS
91701-08038-00
|
$3.90 | ||
|
Unavailable |
|||
|
#26
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Unavailable |
|||
|
#27
BOLT, WASHER BASED
90105-10058-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
STAND, SIDE
54G-27311-01-33
|
$44.99 | ||
|
Unavailable |
|||
|
#29
BOLT
90109-103A1-00
Superseded by 90109-10473-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, SELF-LOCKING
90185-10037-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPRING, TENSION
90506-29358-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
