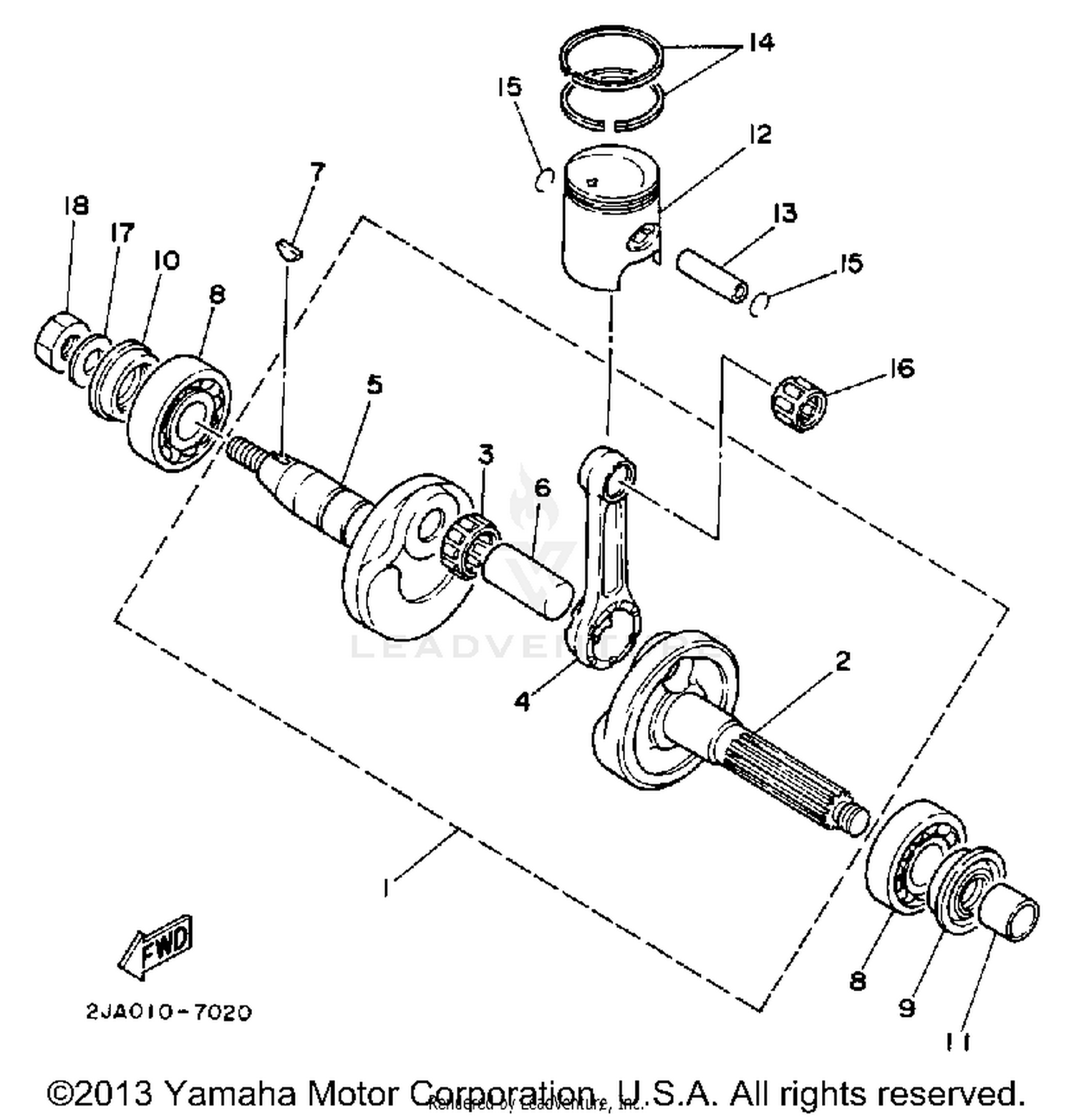

Crankshaft-piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSEMBLY
2JA-11400-00-00
|
$168.99 | ||
|
Unavailable |
|||
|
#2
CRANK 1
2JA-11412-00-00
|
$76.99 | ||
|
Unavailable |
|||
|
#3
BEARING
93310-416N7-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ROD, CONNECTING
2E9-11651-00-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CRANK 2
2JA-11422-00-00
|
$69.99 | ||
|
Unavailable |
|||
|
#6
PIN, CRANK 1
1YU-11681-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
KEY, WOODRUFF
90280-03017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93306-20458-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL, SD-TYPE
93102-20390-00
|
$8.49 | ||
|
Unavailable |
|||
|
#10
OIL SEAL
93101-20138-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-167J0-00
Superseded by 90387-166L6-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PISTON STD
2JA-11631-01-96
|
$68.99 | ||
|
Unavailable |
|||
|
#
PISTON 2 O/S 0.50
2JA-11636-01-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, PISTON
27V-11633-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PISTON RING SET (STD)
260-11601-02-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (0.50MM OS)
260-11601-22-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
93450-11120-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING
93310-210M0-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
92990-10600-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
