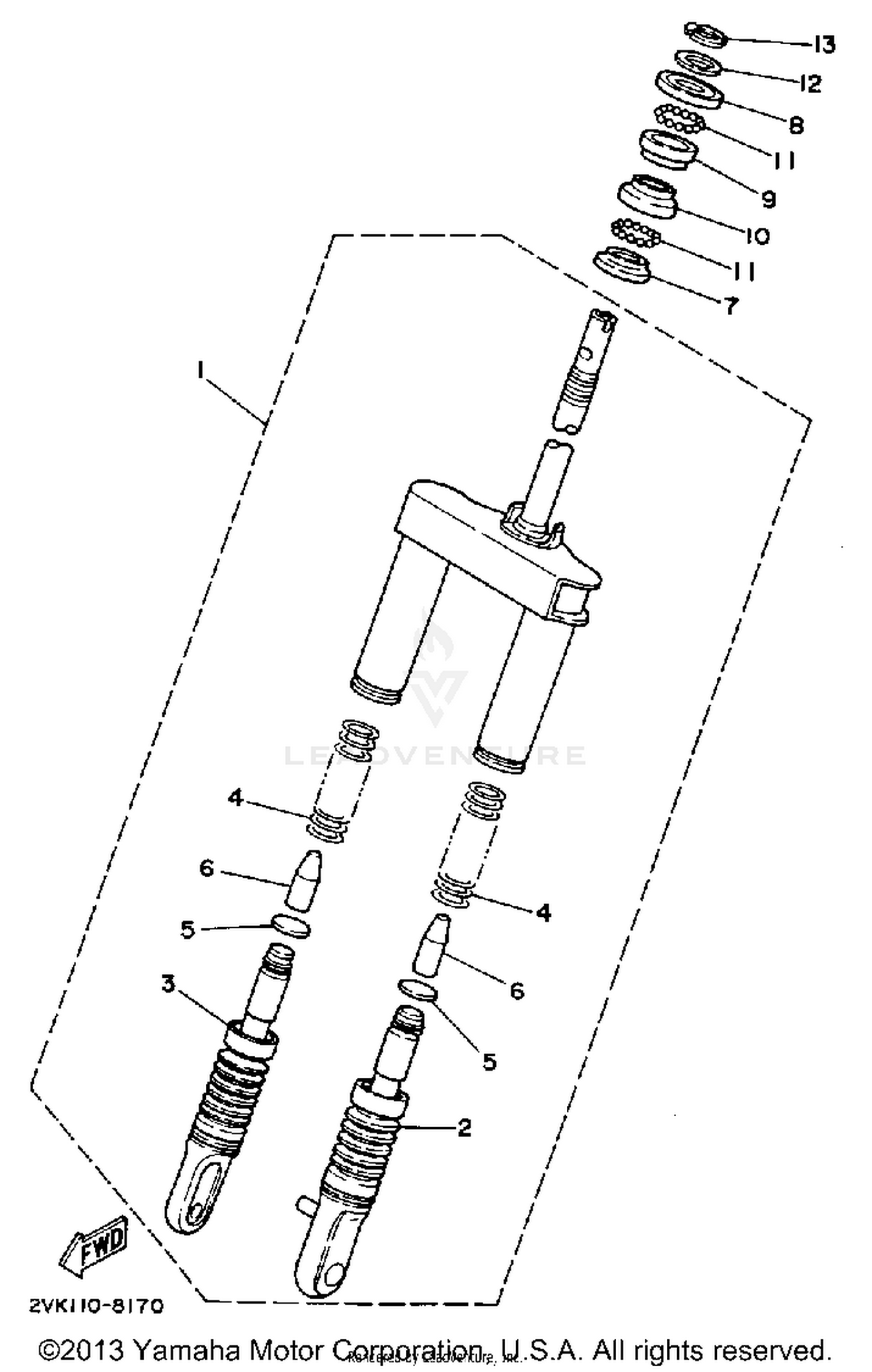

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
2VK-23100-03-00
|
$389.99 | ||
|
Unavailable |
|||
|
#2
INNER TUBE 1
2JA-23110-00-00
|
$99.99 | ||
|
Unavailable |
|||
|
#3
INNER TUBE 2
2JA-23120-00-00
|
$86.99 | ||
|
Unavailable |
|||
|
#4
SPRING, FRONT FORK
2VK-23141-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#5
SEAT, SPRING LOWER
1JX-23143-00-00
|
$2.45 | ||
|
Unavailable |
|||
|
#6
RUBBER
52W-23195-00-00
Superseded by 5BM-23195-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
RACE, BALL 4
3YJ-23414-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
RACE, BALL 1
3KJ-23411-01-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
RACE, BALL 2
2E9-23412-00-00
Superseded by 2SA-23412-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RACE, BALL 3
2E9-23413-01-00
Superseded by 2SA-23413-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BALL
93505-32002-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPECIAL
2T4-23418-01-00
|
$4.40 | ||
|
Unavailable |
|||
|
#13
NUT, FITTING 2
2E9-23454-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
