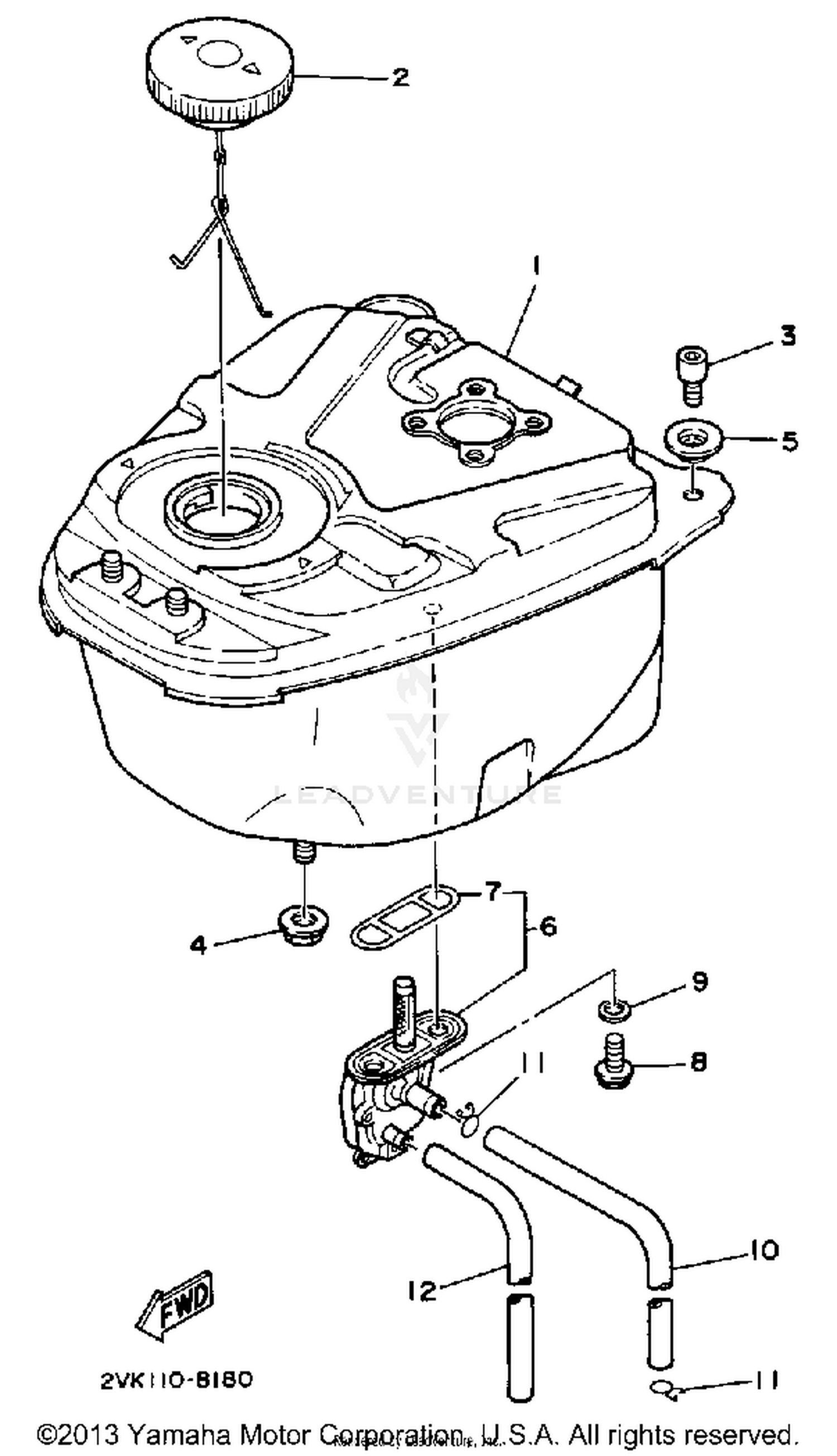

1988 Yamaha CG50U JOG FUEL TANK OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
3CP-24110-00-00
|
$233.99 | ||
|
Unavailable |
|||
|
#2
CAP ASSY
50M-24610-01-00
Superseded by 50M-24610-10-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE (SMALL HEAD)
95023-06012-00
Superseded by 95024-06012-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPECL SHAPE
90209-06297-00
|
$1.15 | ||
|
Unavailable |
|||
|
#6
FUEL COCK ASSEMBLY 1
3VP-24500-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90202-05187-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE (L110)
90445-10752-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE (L200)
90445-074F9-00
Superseded by 90445-07176-00
|
$7.15 | ||
|
Available to order. Add to View Price |
|||
