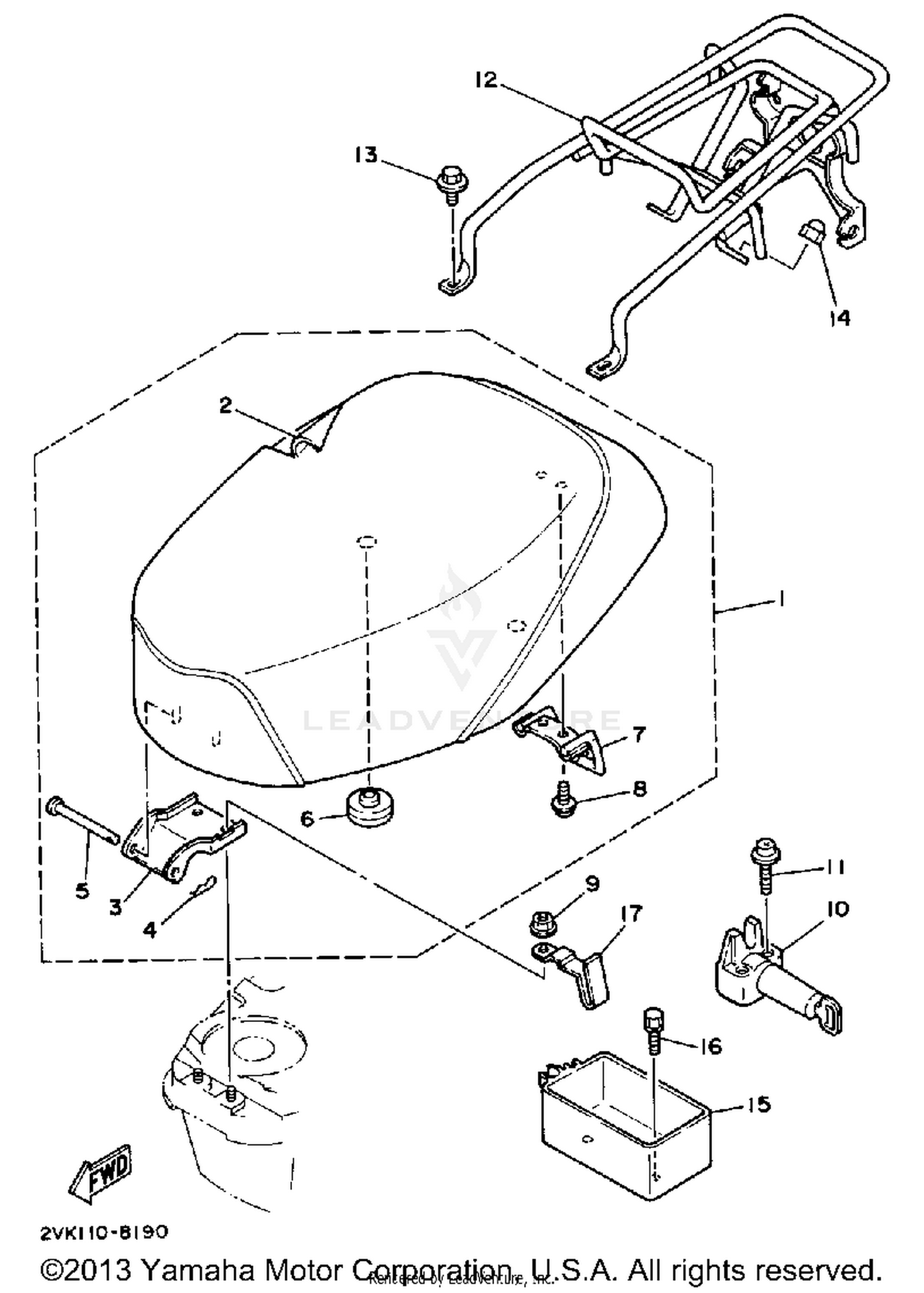

Seat Carrier Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSEMBLY
2JA-24710-90-00
|
$194.99 | ||
|
Unavailable |
|||
|
#
SINGLE SEAT ASY
2VK-24710-40-00
Superseded by 2JA-24710-40-00
|
$200.99 | ||
|
Unavailable |
|||
|
#2
COVER, SINGLE SEAT
2JA-24711-40-00
|
$58.99 | ||
|
Unavailable |
|||
|
#
COVER, SINGLE SENT
2JA-24711-90-00
|
$121.99 | ||
|
Unavailable |
|||
|
#3
HINGE, SEAT
2JA-24726-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#4
CLIP
90468-10050-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, CLEVIS
91701-06082-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
PAD, SEAT
1L9-24741-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, SEAT
2JA-24728-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#8
BOLT, FLANGE
95811-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAT LOCK ASSEMBLY
2JG-24705-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, WITH WASHER
90159-06064-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CARRIER, REAR
2VK-24842-00-00
|
$121.99 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE
95811-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Unavailable |
|||
|
#14
NUT, CROWN
90176-06066-00
Superseded by 95380-06800-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOX, TOOL
2JA-21171-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#16
BOLT, WITH WASHER
90119-06018-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
HANGER, HELMET
2JA-21398-10-00
|
$14.49 | ||
|
Unavailable |
|||
