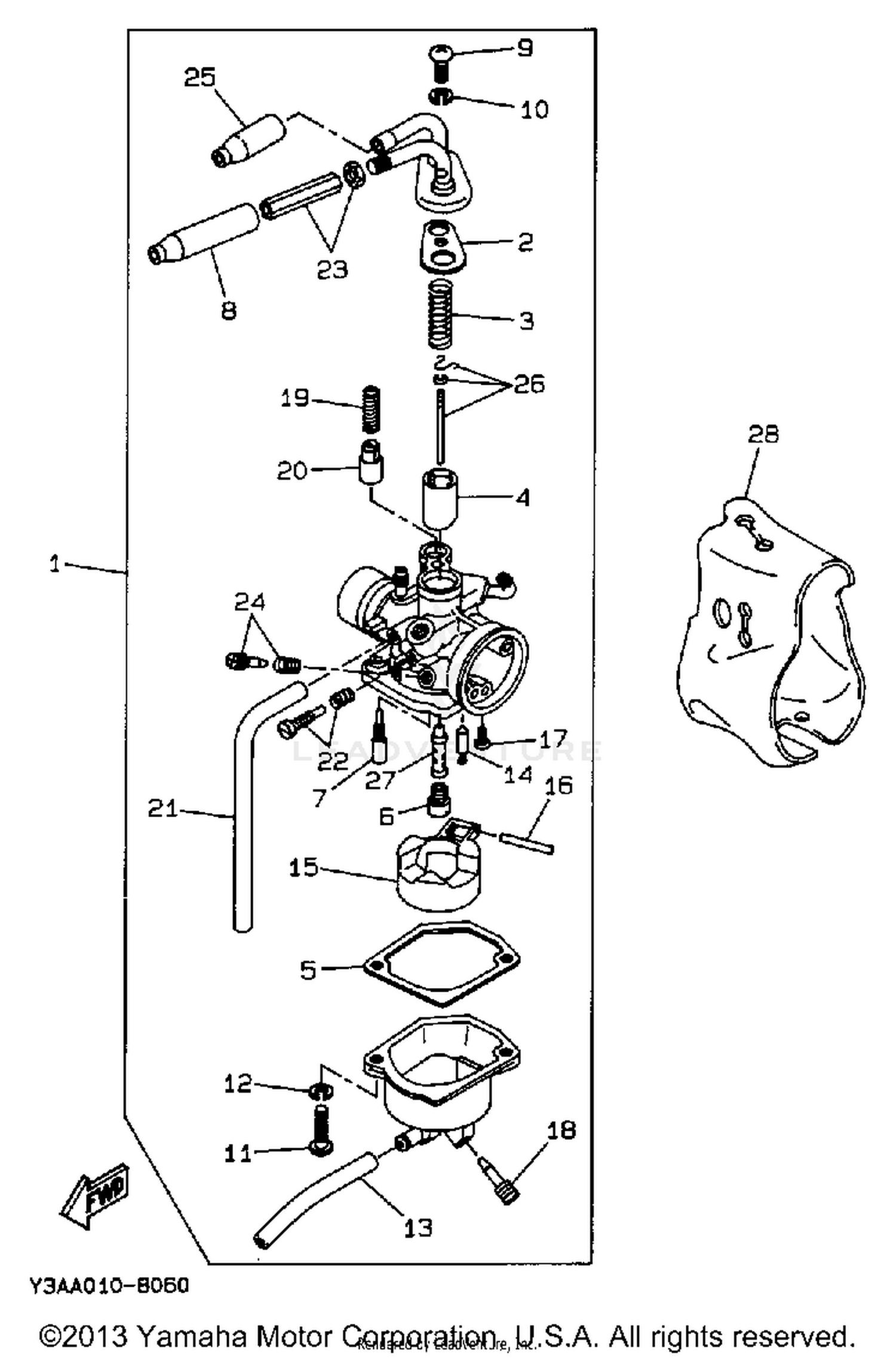

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASY 1
3AA-14301-00-00
Superseded by 99999-03096-00
|
$349.99 | ||
|
Unavailable |
|||
|
#2
GASKET
1YU-14126-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, THROTTLE VALVE
1YU-14331-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
VALVE, THROTTLE 1
14T-14312-30-00
|
$33.99 | ||
|
Unavailable |
|||
|
#5
GASKET, FLOAT CHAMBER
1YU-14384-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
JET, MAIN
14T-14343-45-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PILOT JET (50)
1YU-14353-25-00
|
$5.49 | ||
|
Unavailable |
|||
|
#8
CAP
1UV-14169-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98580-04016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE
3AA-14349-00-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
VALUE, NEEDLE
14T-14392-01-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
FLOAT
1YU-14385-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, FLOAT
14T-14386-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, AIR ADJUSTING
14T-14104-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, PLUNGER
1YU-14335-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUNGER, STARTER
1YU-14371-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIPE
56R-14196-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
THROTTLE SCREW SET
1YU-14103-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CABLE ADJUST SCREW SET
1UV-14106-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#24
SCREW, AIR ADJUSTING
14T-14104-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#25
CAP
14T-14169-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NEEDLE SET
3AA-1490J-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#27
NOZZLE, MAIN
2XX-14341-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#28
COVER, CARBURETOR 1
1YU-14283-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
