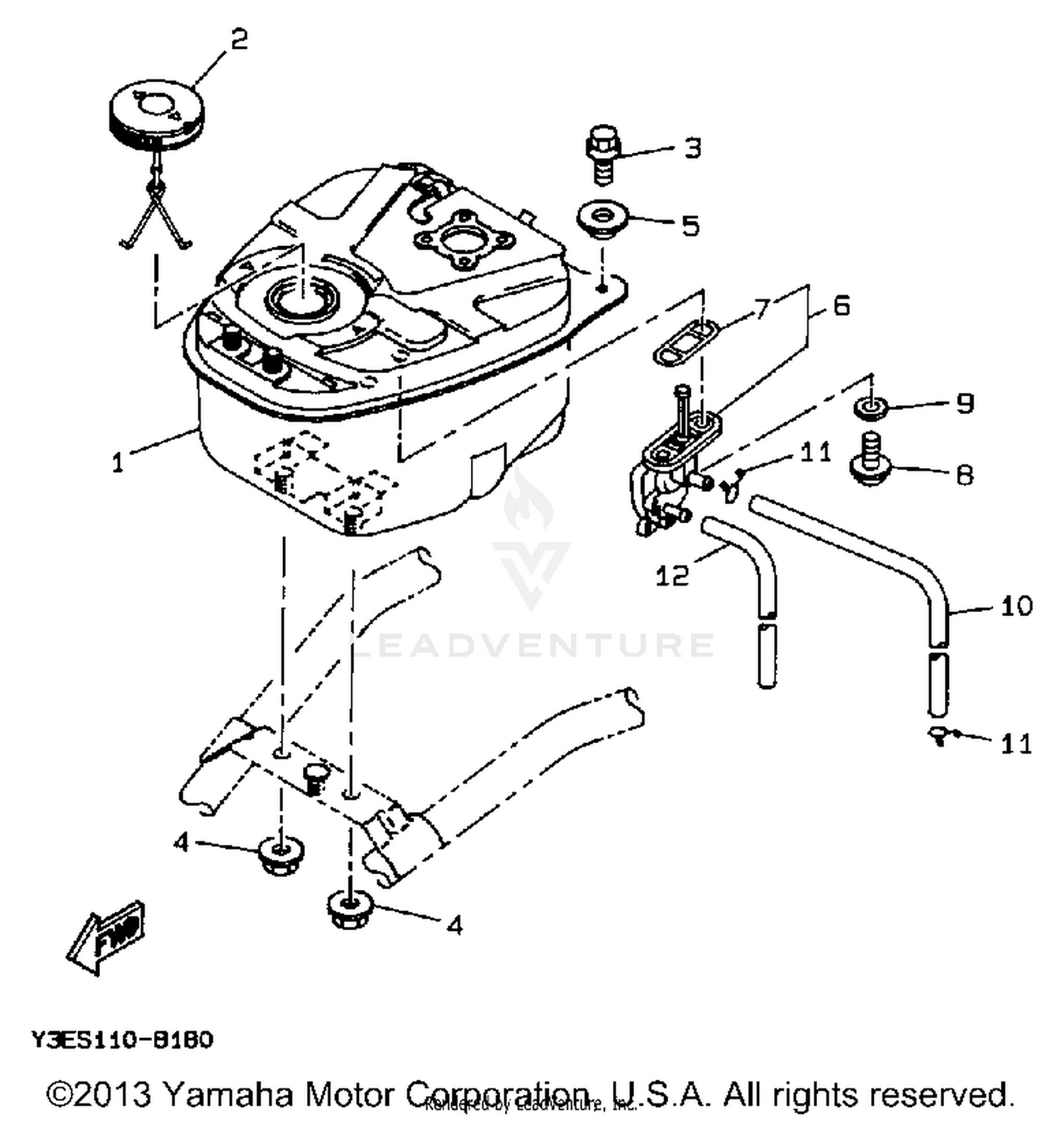

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
3CP-24110-00-00
|
$233.99 | ||
|
Unavailable |
|||
|
#2
CAP ASSY
50M-24610-01-00
Superseded by 50M-24610-10-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
95026-06012-00
Superseded by 95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER (0.6T)
90209-06306-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
FUEL COCK ASSEMBLY 1
3VP-24500-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE, FUEL 1
3AA-24311-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE (L200)
90445-07370-00
Superseded by 90445-07176-00
|
$7.15 | ||
|
Available to order. Add to View Price |
|||
