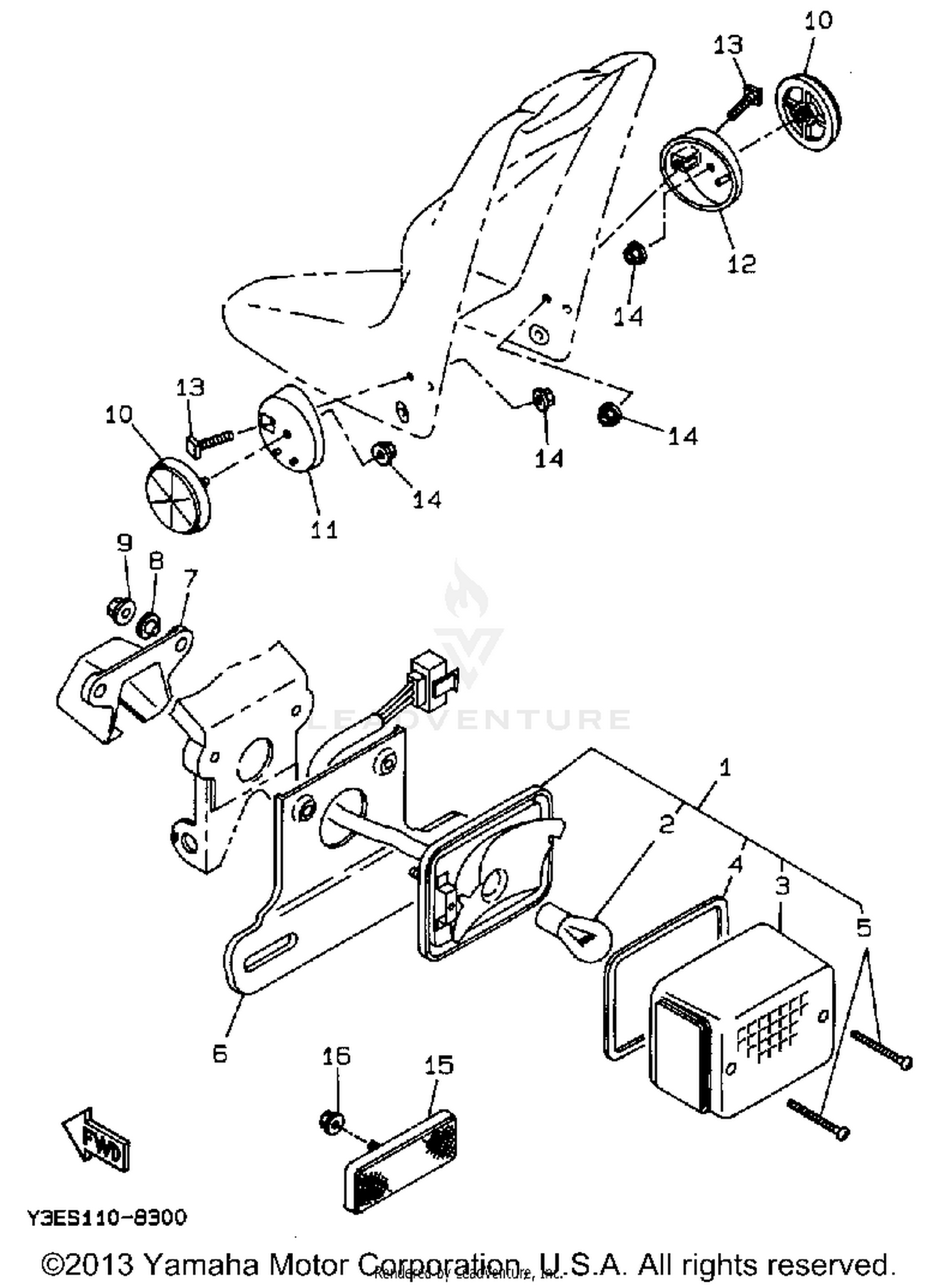

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSY
2EK-84710-00-00
|
$131.99 | ||
|
Unavailable |
|||
|
#2
BULB (12V-21/5W)
31L-84714-00-00
Superseded by 1A2-84714-50-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS, TAILLIGHT
1M1-84521-60-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, LENS
1M1-84523-60-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, ADJUSTING
1M1-84524-60-00
Superseded by 5BF-8433E-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, LICENSE
3ES-84751-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER
3L8-84544-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#8
COLLAR
90387-06681-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
REFLECTOR, FRONT 1
2EK-85111-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BASE, REFLECTOR
3ES-85127-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#12
BASE, REAR REFLECTOR (R.H)
3ES-85137-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#13
BOLT
90101-05579-00
|
$0.95 | ||
|
Unavailable |
|||
|
#14
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$7.49 | ||
|
Unavailable |
|||
