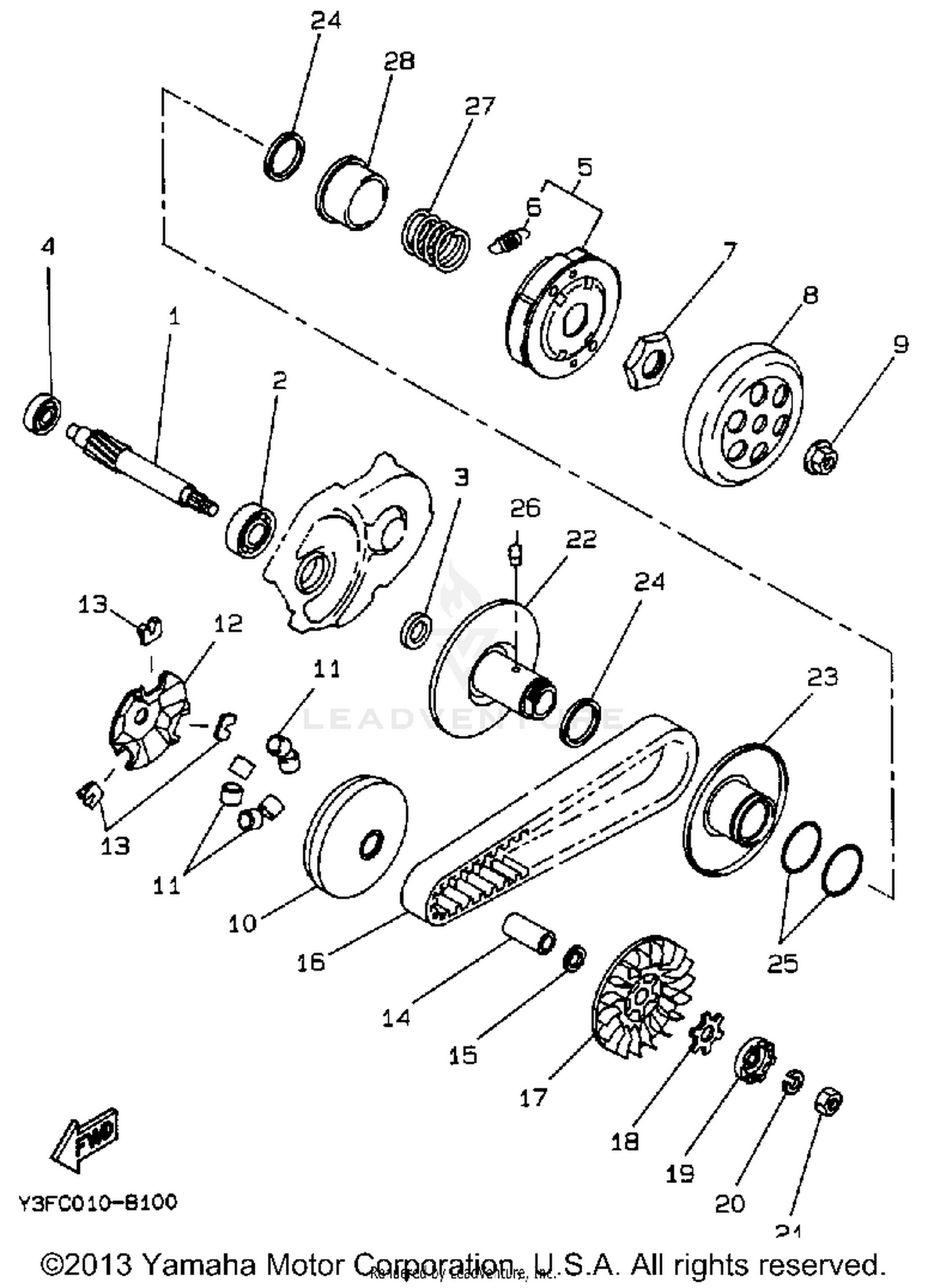

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE (13T)
3AA-16111-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-20310-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93102-17342-00
Superseded by 93102-17467-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-20005-00
Superseded by 93306-20009-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLUTCH CARRIER ASSY
3AA-16620-00-00
Superseded by 3GF-16620-02-00
|
$78.99 | ||
|
Unavailable |
|||
|
#6
SPRING, CLUTCH WEIGHT 1
24G-16626-00-00
Superseded by 24G-16626-01-00
|
$2.20 | ||
|
Unavailable |
|||
|
#7
NUT
90179-28415-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLUTCH HOUSING COMP.
24G-16611-03-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, SPECL SHAPE
90179-10370-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PRI SLIDG SHEAVE
3XG-17620-00-00
Superseded by 3XG-17620-01-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PRIMARY SHEAVE WEIGHT (HA)
30A-17632-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAM
3AA-17623-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SLIDER
1NT-17653-00-00
Superseded by 4NG-17653-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-135U9-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-133M8-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
V-BELT
3AA-17641-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHEAVE, PRIMARY FIXED
3AA-17611-00-00
Superseded by 3AA-17611-01-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, CLAW
90214-13055-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLUTCH, ONEWAY
3AA-15657-00-00
Superseded by 3KJ-15657-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, CONICAL SPRING
90208-10012-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
SECONDARY FIXED SHEAVE COMP.
3AA-17660-00-00
Superseded by 3AA-17660-03-00
|
$258.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SECONDARY SLIDING SHEAVE
3WG-17608-00-00
Superseded by 3AA-17670-01-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93109-33052-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING
93210-38687-00
Superseded by 93210-384A6-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, GUIDE
24G-17664-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING, COMPRESSION
90501-351F6-00
|
$11.99 | ||
|
Unavailable |
|||
|
#28
SEAT SPRING SET
3AA-17604-00-00
|
$20.99 | ||
|
Unavailable |
|||
